DBA DBA43342XD Series XD Drilled Dimpled Performance Brake Rotor - 4000 350mm

(2018-2022 Kia Stinger; 2019-2022 Genesis G70)

Manufacturer

Part Number

DBA43342XD
Black Friday Price

$262.13

2 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

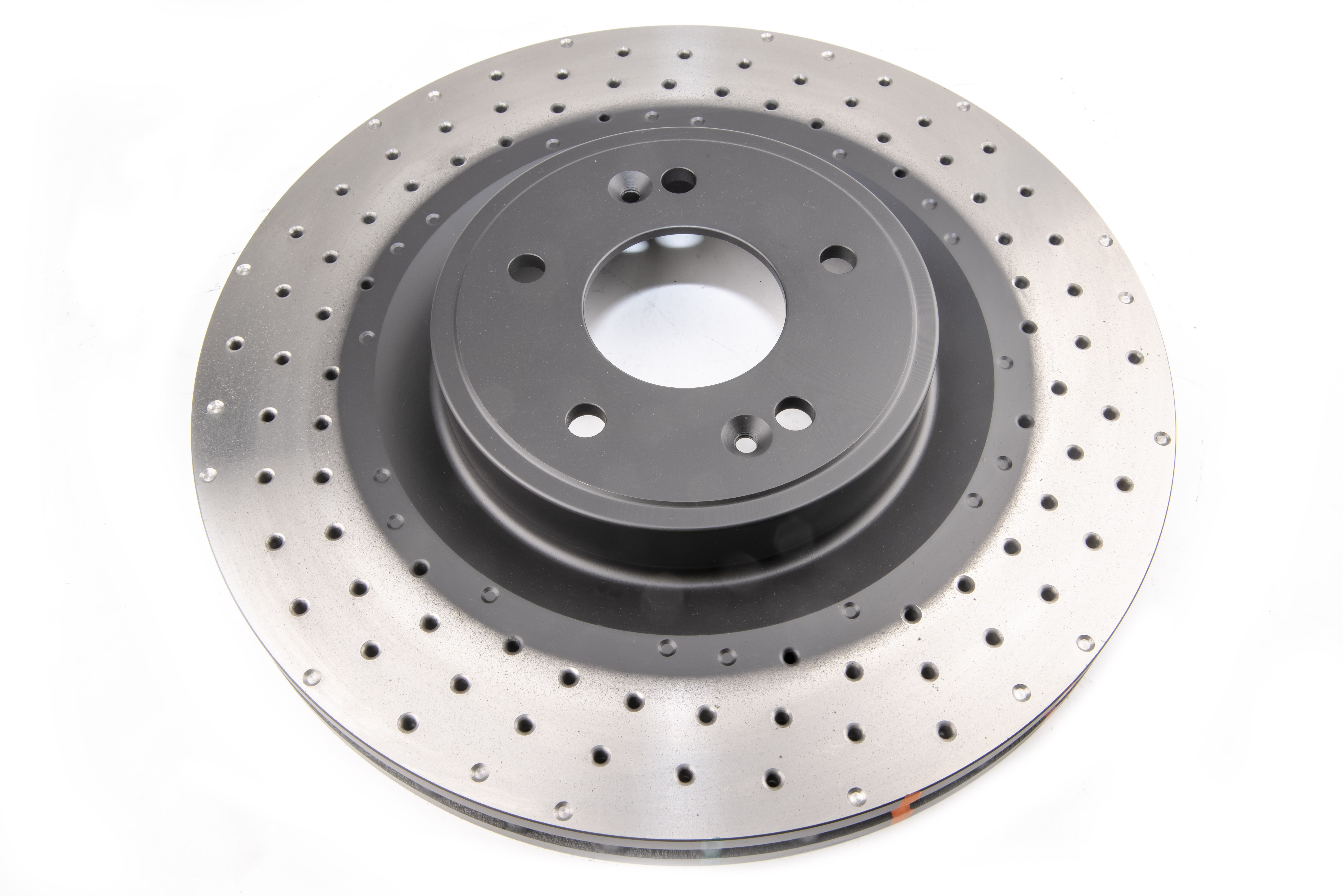

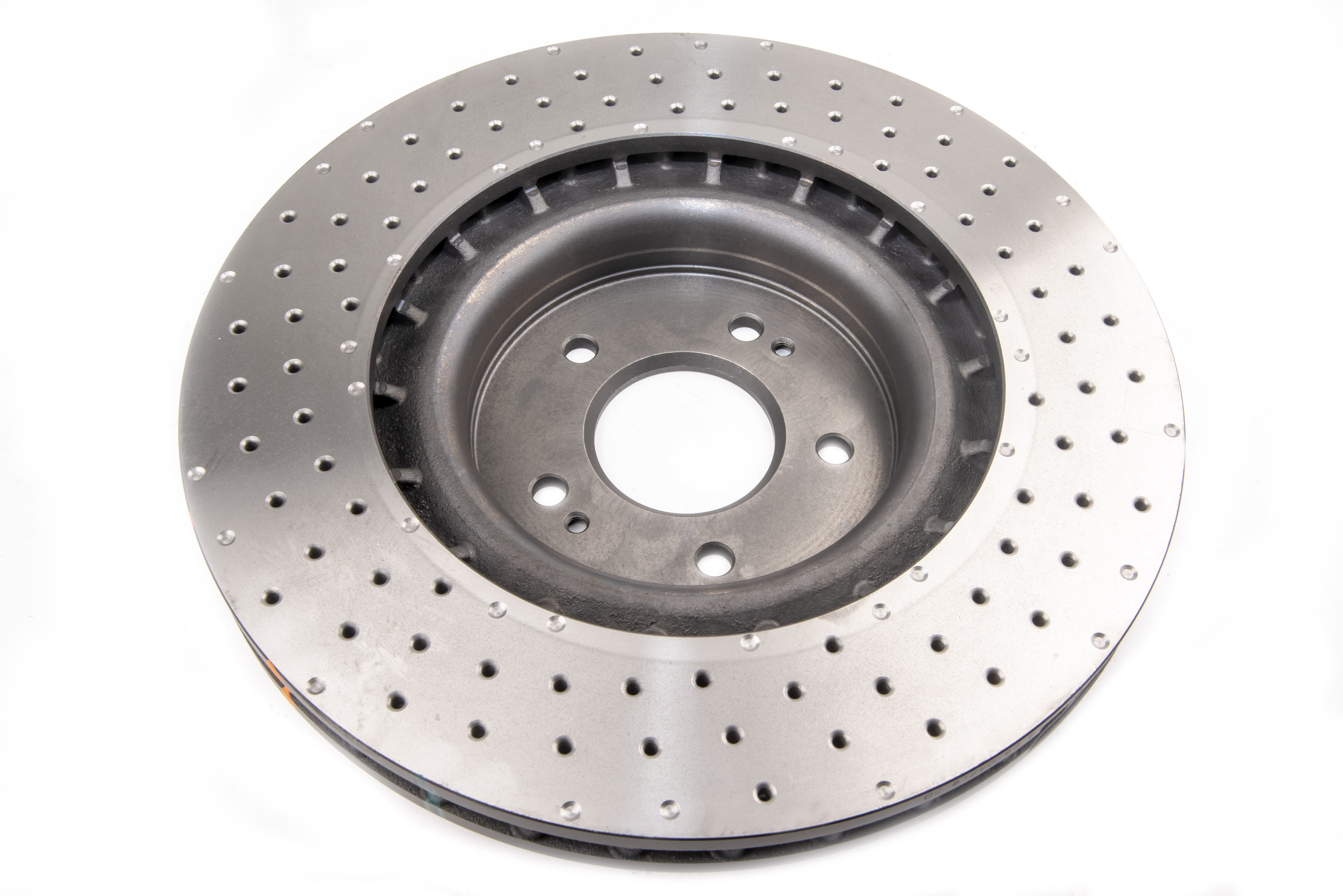

The DBA DBA43342XD is a 4000 Series XD performance disc brake rotor featuring DBA's non-directional cross-drilled and dimpled rotor design. As a direct-replacement, single-piece brake rotor, it is engineered for drivers seeking upgraded braking performance above and beyond standard OE levels.

The XD designation combines 84 cross-drilled holes and 36 dimples across the rotor face, providing maximum heat transfer along with efficient friction dust and gas evacuation. The unique blend of drilled holes and dimples delivers enhanced structural support over traditional fully-drilled designs, reducing the risk of cracking under load.

Key Features:

  • XG-150 High Carbon Alloyed Iron Construction: Cast from premium XG-150 alloy for superior resistance to the stress and heat generated during intense braking
  • Thermal Stability Profiling (TSP): Proprietary DBA heat treatment process that realigns the grain structure of the iron at the atomic level, producing a uniform material with maximum thermal stability and reduced metal fatigue
  • Kangaroo Paw Ventilation: Patented vane design featuring 144 diamond and teardrop-patterned pillars, achieving up to 30% greater surface area and up to 20% improved cooling efficiency versus traditional straight-vane designs
  • 84 Cross-Drilled Holes + 36 Dimples: CNC-machined XD finish maximizes heat dissipation and gas/dust evacuation while maintaining rotor integrity
  • Thermographic Heat Paint Markings: Paint indicators change color at specific temperature thresholds to help monitor braking temperatures and rotor fatigue in demanding conditions
  • Symmetrical Non-Directional Design: Universal left/right fitment — one rotor works on either side of the axle
  • Painted Non-Friction Areas: Rust-inhibiting paint on non-contact surfaces enhances corrosion resistance and appearance
  • Centre-Split Core Castings: Promotes increased heat transfer and thermal efficiency throughout the rotor

Note: Drilled rotor configurations are not recommended for heavy off-road or track day usage. The DBA43342XD is ideally suited for high-performance street driving, spirited road use, and demanding daily driving applications. Rotor diameter: 350mm.

Products specifications

Fits

2018-2022 Kia Stinger; 2019-2022 Genesis G70
