Greddy 11520097 T517Z Twin Turbo Kit for Nissan 370Z Z34 8cm RHD

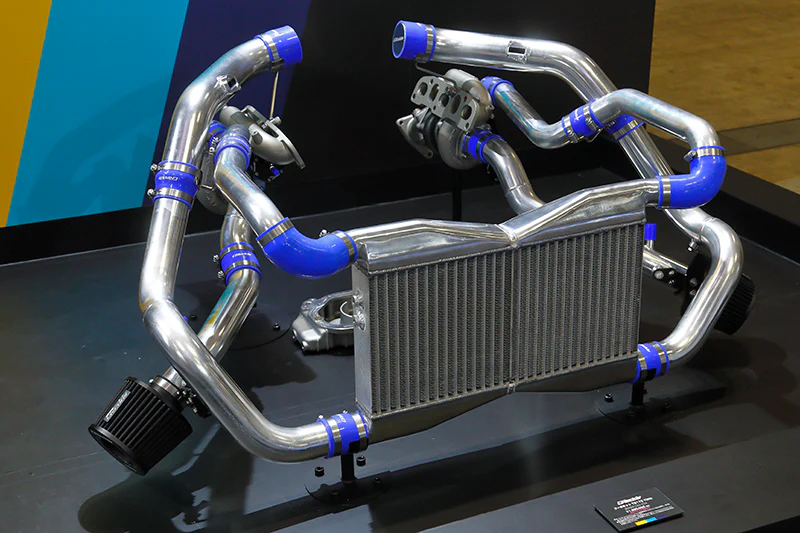

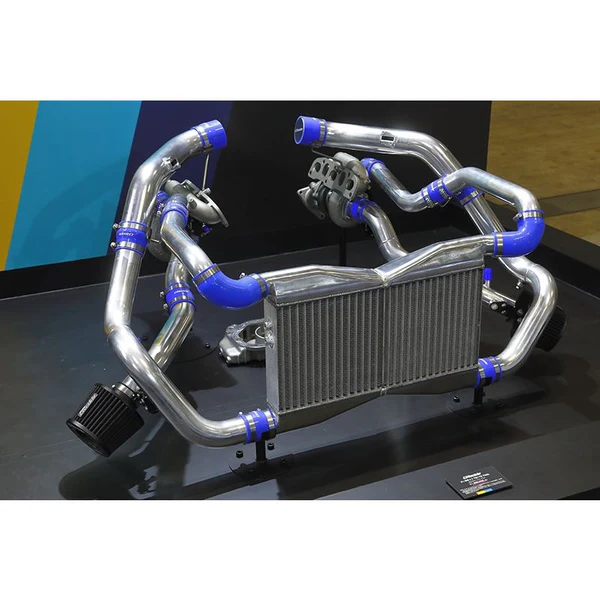

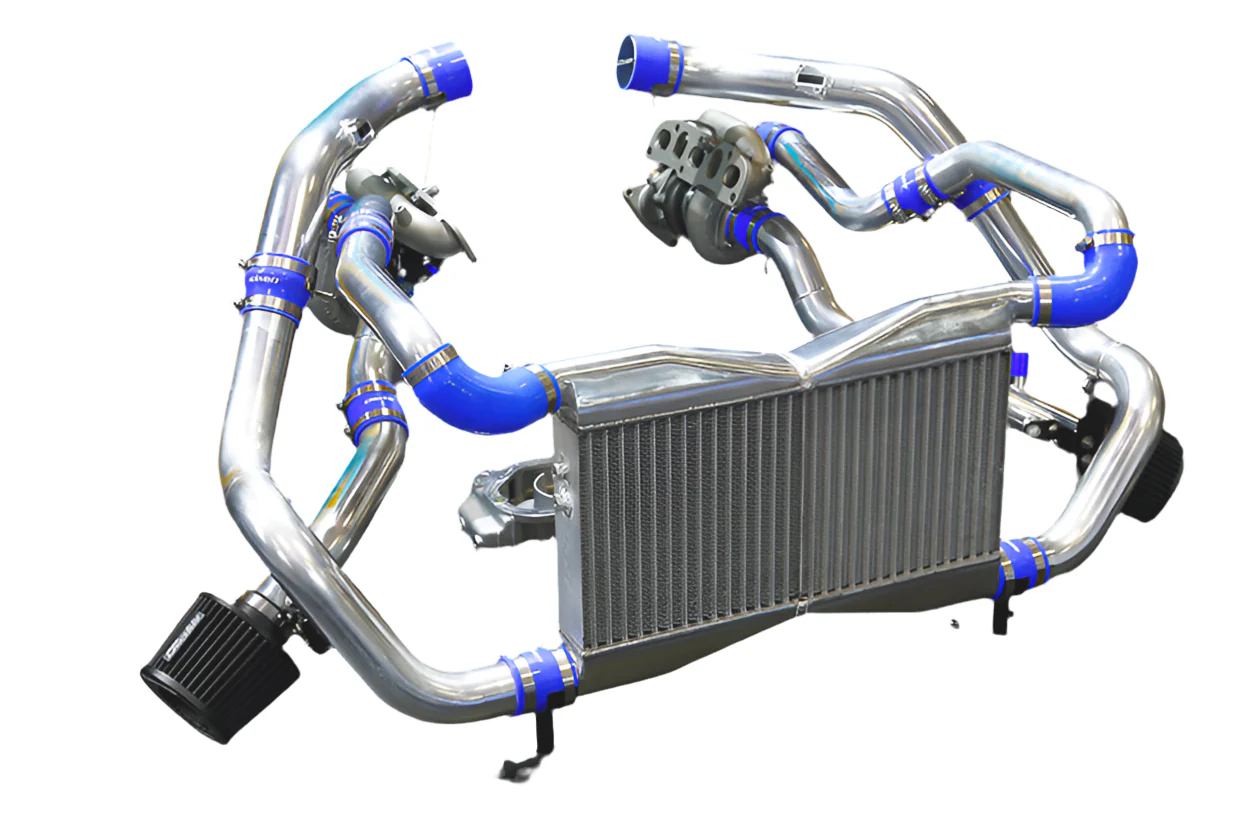

The GReddy 11520097 is a bolt-on twin turbo kit engineered specifically for the Nissan 370Z (Z34) platform, featuring dual T517Z turbines with an 8cm² turbine housing. This complete kit delivers a significant power upgrade while retaining compatibility with the factory catalytic converter, making it a compelling choice for performance enthusiasts seeking serious forced induction.

The kit is designed for use with a stock engine using the included boost restrictor, limiting boost to 0.6 kg/cm² for a conservative, reliable setup. For those who upgrade to forged pistons and a strengthened engine, removing the restrictor allows boost levels up to 0.8 kg/cm², capable of achieving output exceeding 500 PS.

Key Features:

• Bolt-on T517Z twin turbo fitment for the 370Z (Z34) VQ37VHR engine
• Exhaust manifold and turbine outlets constructed from 4mm thick stainless steel lost-wax castings for superior crack resistance and durability
• Dual independent left and right intercoolers (TYPE16 twin) for balanced intake air distribution across both cylinder banks
• Includes boost restrictor for stock-engine compatibility at 0.6 kg/cm² boost
• Compatible with the factory catalytic converter — maintains vehicle inspection compliance
• Compression tubes: aluminum 50φ–70φ; suction tube: aluminum 60φ
• Includes AIRINX S60 air cleaners and factory exhaust gaskets
• Actuator: P380

Kit Contents:

• T517Z-8cm² twin turbines (with P380 actuators)
• Oil pan
• Washer tank
• Exhaust manifold and turbine outlet (4mm lost-wax stainless steel)
• TYPE16 twin intercoolers
• Aluminum compression and suction tubing
• AIRINX S60 air cleaners
• Genuine exhaust gaskets
• Boost restrictor

Installation Notes:

• Right-hand drive (RHD) vehicles only — not compatible with left-hand drive configurations
• Additional modifications required: engine mount, front member cover, bumper processing, and harness routing changes
• Engine removal is recommended during installation due to limited engine bay clearance
• Fuel pump capacity upgrade, fuel injector upgrade, and ECU tuning are required and sold separately
• Estimated installation time: 20–28 hours depending on setup

GReddy (Trust Co., Ltd.) has been a leader in Japanese performance aftermarket parts since 1977, with a proven track record in motorsport development. The 11520097 twin turbo kit reflects that heritage, delivering a comprehensive forced induction solution with race-tested components for the Z34 370Z platform.
