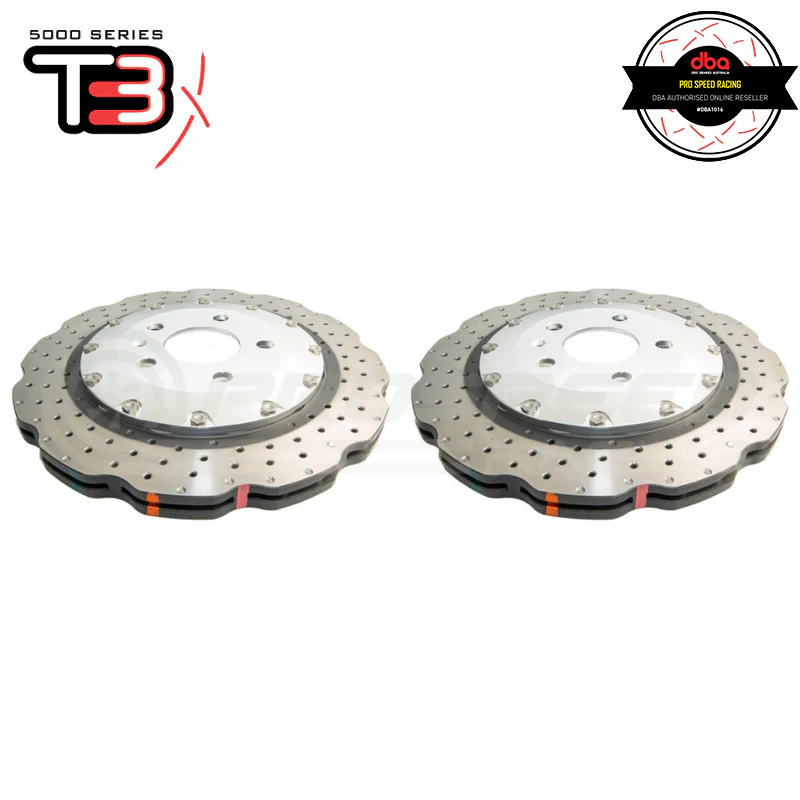

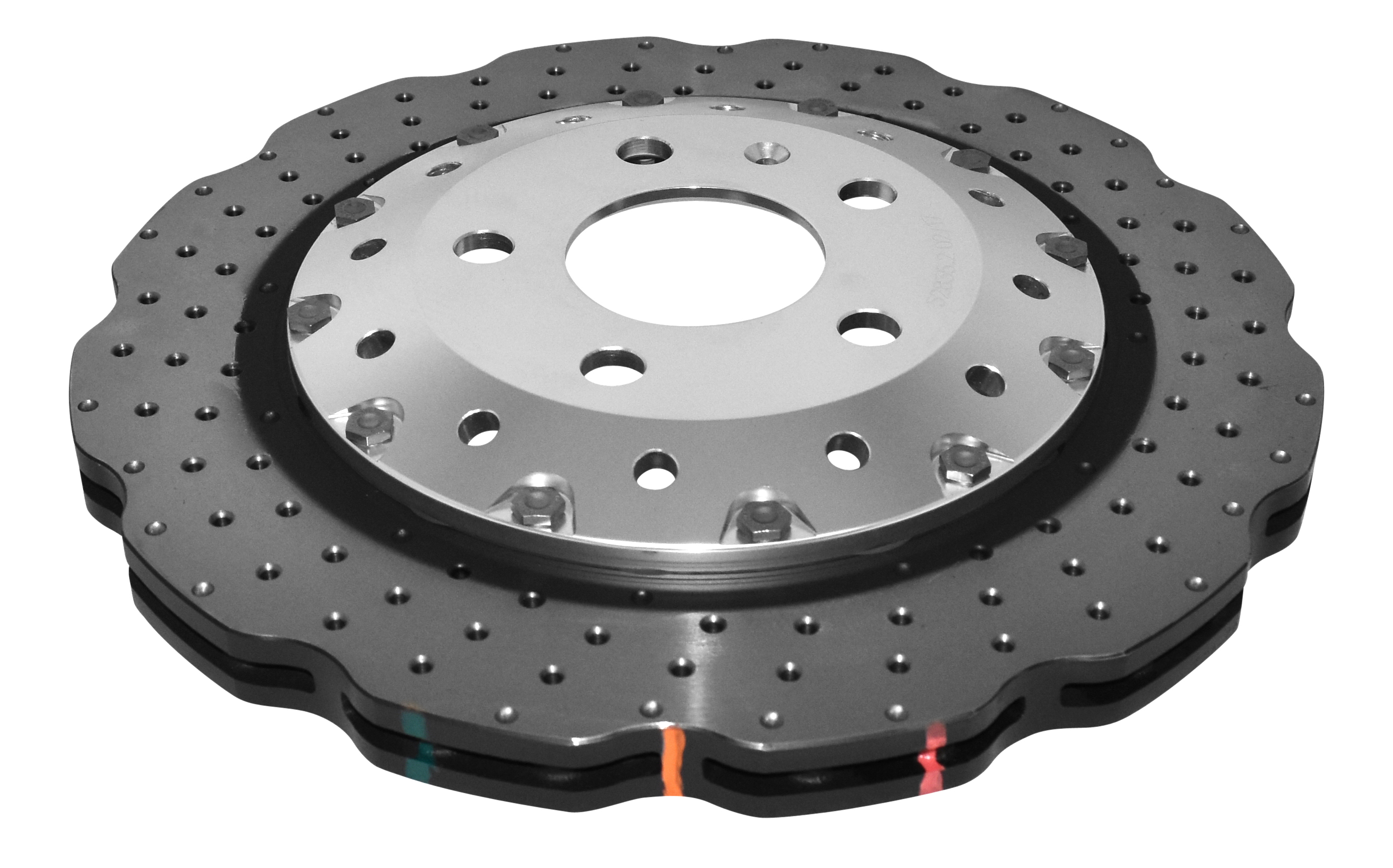

DBA DBA52841WSLVXD 5000 Series Wave XD 2-Piece Cross-Drilled & Dimpled Brake Disc Rotor - Silver Hat

(2013-2016 Audi RS5)

Manufacturer

Part Number

DBA52841WSLVXD
Black Friday Price

$599.04

Estimated ship date Saturday, December 05

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The DBA 5000 Series Wave XD is a fully assembled, composite two-piece direct replacement brake rotor engineered for high-performance street, track day, club racing, and rally applications. Combining DBA's Wave profile with the XD cross-drilled and dimpled finish, this rotor delivers an aggressive aesthetic alongside superior thermal management and reduced unsprung weight.

5000 Series Two-Piece Construction:

  • XG-150 High Carbon Alloyed Iron ring — the same premium alloy used across DBA's performance lineup, optimized for interaction with DBA's proprietary TSP (Thermal Stability Profiling) process
  • TSP (Thermal Stability Profiling) — a controlled heat treatment process that aligns the grain structure of the iron at the atomic level, relieving internal manufacturing stresses for maximum thermal stability and reduced metal fatigue under extreme braking
  • Aerospace-Grade T6061-T6 Aluminium Hat — reduces unsprung weight, promotes uniform radial disc expansion through the cast iron ring, and minimizes heat transfer from the rotor to the hub, protecting wheel bearings
  • National Aerospace Standards (NAS) Bolts & Crimp Nuts — secure the two-piece assembly with maximum strength at minimal weight; torque to 13 Nm / 9.6 ft-lb

Wave XD Design Features:

  • Wave Profile — precision CNC-milled wave edge inspired by motocross applications; reduces overall rotor weight (with maximum effect at the outermost point) and increases cooling surface area for better heat dispersal
  • XD Cross-Drilled & Dimpled Finish — non-directional design combines drilled holes and dimples for enhanced structural integrity over traditional cross-drilled techniques; improves cooling beyond the standard HD finish while elevating visual appeal
  • Kangaroo Paw® Ventilation — 144 diamond and teardrop-shaped internal pillars deliver up to 20% better heat dissipation compared to conventional straight-vane designs, minimizing brake fade and extending pad and rotor service life
  • CBN (Cubic Boron Nitride) Machine-Turned Finish — precision surface finish minimizes disc thickness variation, reducing the risk of pad knock and premature wear
  • Thermographic Heat Paint (TGHP) Markings — standard on all 5000 Series rotors; paint markings permanently change colour at specific temperature thresholds so drivers can monitor peak braking temperatures and assess rotor fatigue
  • Anti-Rust Coating — applied to non-friction areas to reduce corrosion and maintain appearance throughout service life

Replacement Flexibility: DBA offers both complete hat-and-ring assemblies for first-time installation and individual replacement rings, allowing owners to reuse their existing 5000 Series aluminium hats — a cost-effective option for drivers who are hard on brakes. Always inspect hats for wear before reusing, and use DBA-spec NAS hardware.

The DBA 5000 Series Wave XD is the ultimate combination of weight savings, heat management, and performance aesthetics — engineered for drivers who demand more from their braking system.

Products specifications

Fits

2013-2016 Audi RS5
