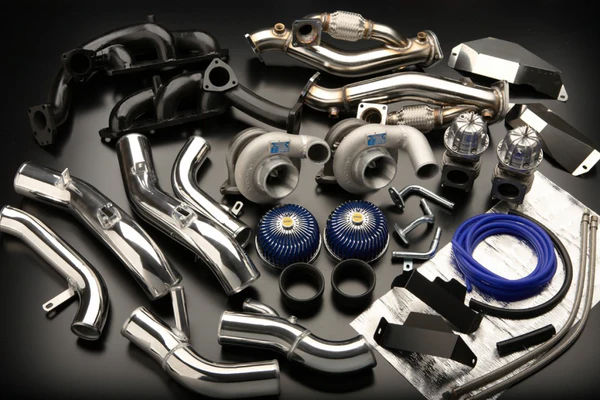

Greddy 11510060 Turbo Kit JZX100 T67/TD06SH 25G Wastegate Type 8.0cm²

The Greddy 11510060 is a high-performance wastegate-type turbo kit engineered for the JZX100 chassis powered by the 1JZ-GTE engine. This kit features an independent external wastegate (bypass valve) mounted directly in the exhaust manifold — separate from the turbocharger body — providing superior boost control and more precise power delivery compared to internal wastegate configurations.

Designed for serious engine tuners who have clearly defined performance goals, this is a high-grade kit aimed at achieving maximum power and throttle response from the 1JZ-GTE platform. The TD06SH 25G turbocharger is renowned for its ability to deliver strong mid-range torque while still producing impressive top-end power.

Key Features & Specifications:

• Turbocharger: T67 / TD06SH 25G turbine
• Wastegate Housing: 06SH 25G — 8.0 cm² external wastegate configuration
• Exhaust Manifold: Stainless steel (SUS) 42.7mm diameter primary piping
• Wastegate: W/G R11 external wastegate
• Air Intake: AIRINX intake included
• Note: Genuine OEM catalytic converter cannot be installed on the front pipe with this kit
• Engine: 1JZ-GTE
• Chassis: JZX100 (Mark II / Chaser)
• Model Years: September 1996 – October 2000

With over 40 years of turbocharger engineering experience, GReddy matches turbocharger sizing and housing design to deliver an ideal balance of spool response and peak power output. Note: This product is designed and sold for sanctioned off-road and competition-only use on non-emissions-controlled vehicles.
