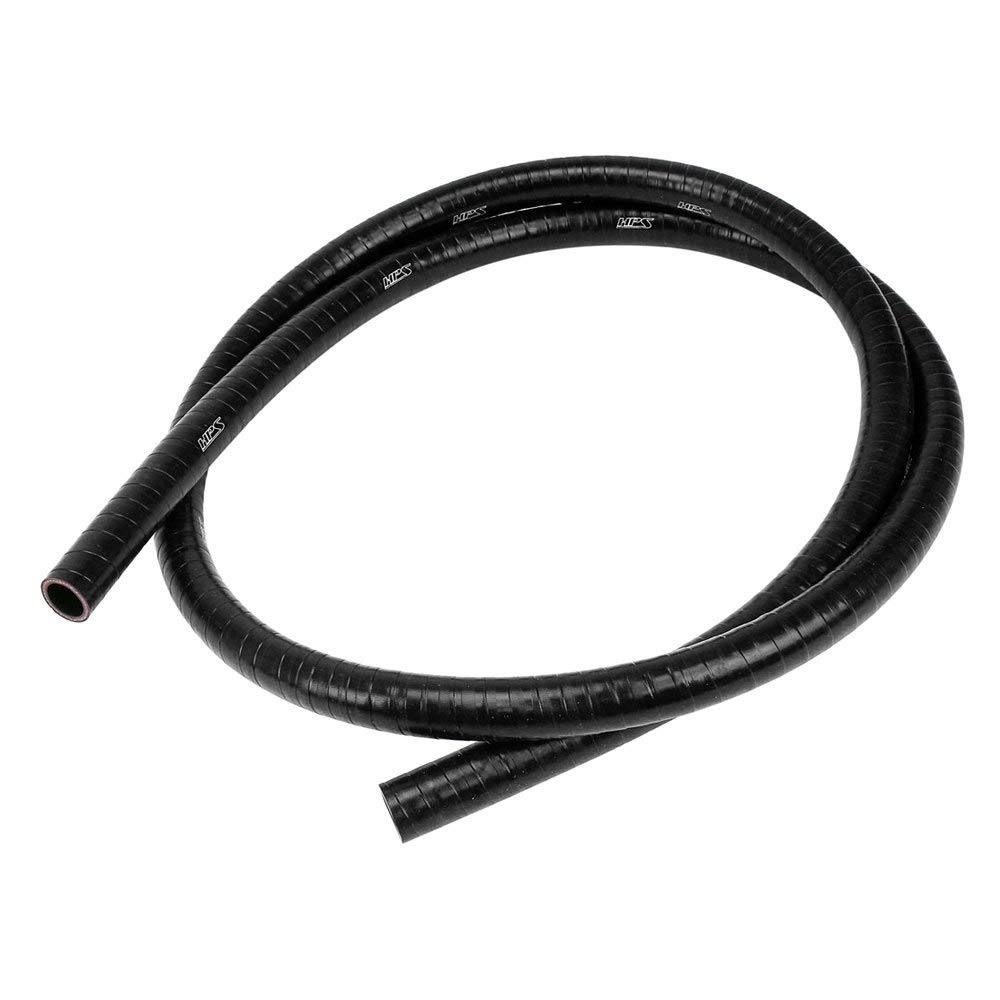

HPS Performance Products FKM-9F-075-BLK FKM Lined Silicone Hose 3/4" ID 9 Feet Black Oil Resistant High Temp

The HPS Performance FKM-9F-075-BLK is a 9-foot length of 3/4" (19mm) inside diameter FKM-lined, high-temperature reinforced silicone hose in black. Engineered with an inner fluoroelastomer (FKM) liner bonded to a 1-ply polyester-reinforced silicone outer shell, this hose is purpose-built to handle fluids that would quickly degrade standard silicone hose — including gasoline, diesel fuel, automotive oils, and synthetic hydraulic fluids.

The FKM liner minimizes fluid permeation, evaporation, and hose degradation over time, while the polyester reinforcement layer delivers excellent flexibility and tensile strength. The result is a hose equally at home in high-performance automotive, marine, industrial, and motorsport applications.

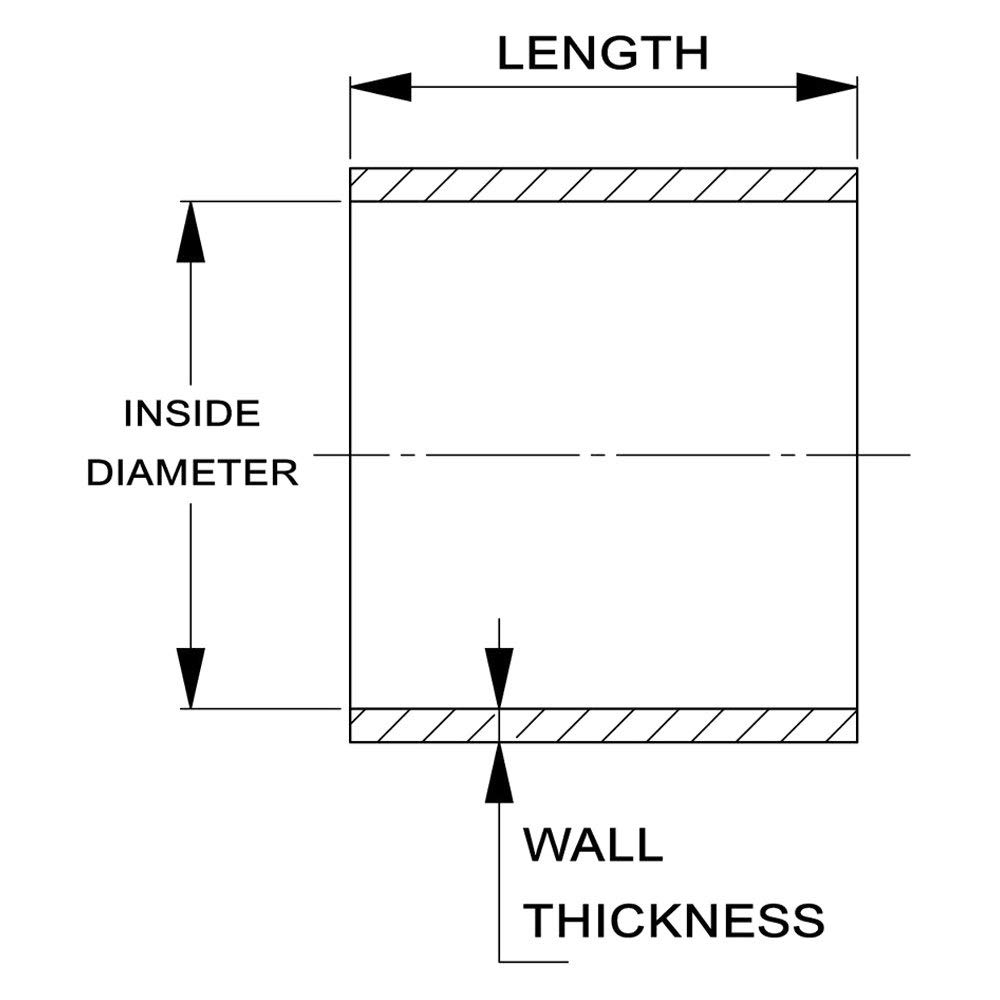

Technical Specifications:

• Inside Diameter: 3/4" (19mm)
• Outside Diameter: 1.06" (27mm)
• Wall Thickness: 4mm (±0.2mm)
• Length: 9 Feet
• Reinforcement: 1-Ply Polyester
• Temperature Range: -65°F to +350°F (-54°C to +177°C)
• Maximum Working Pressure: 47 PSI
• Bend Radius: 3-1/2"
• Color: Black
• UV and Ozone Resistant

Recommended Applications:

• Fuel Return Lines
• Fuel Ventilation
• Oil / Crankcase Ventilation
• Turbo Oil Return
• Power Steering Return
• Automatic Transmission Oil Cooler Lines

Important Usage Notes:

• Not for use as a fuel line where working pressure exceeds 55 PSI
• Not suitable for continuous flow of alcohol-based fuels
• Not for use where the hose is fully submerged in fuel
• FKM liner can handle occasional contact with ethanol-based fuels

HPS Performance Products are thoroughly tested to meet or exceed SAE J20 standards, making this hose a reliable choice for demanding automotive and powersports builds.
