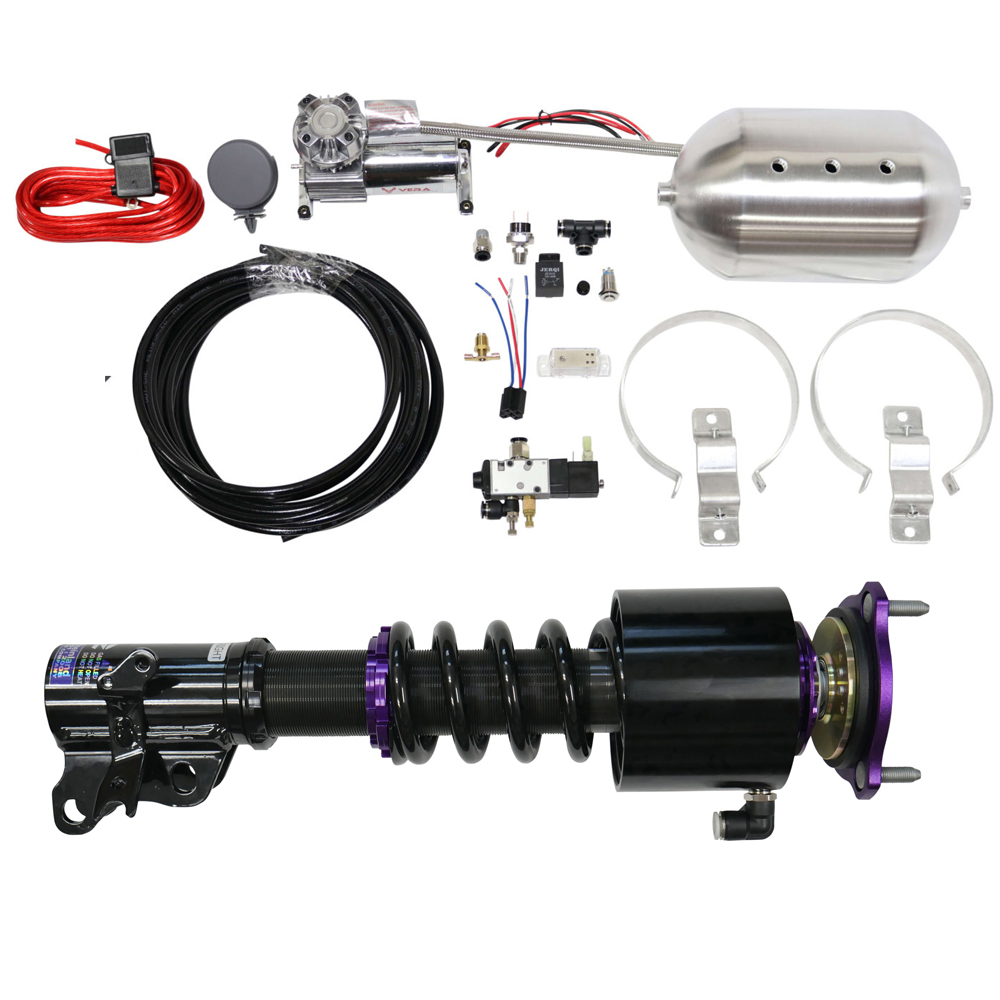

D2 Racing D-HY-05-VACF-20D2-ACK02 RS Coilovers with Front Air Cups and Gold Control System

The D2 Racing RS Series Coilover Kit with Front Air Cups and Gold Control System combines proven coilover performance with on-demand front ride height adjustment. Developed through decades of experience in both the coilover and air suspension industries, this kit delivers the best of both worlds — the handling precision and reliability of a full coilover system with the added convenience of pneumatic front lift capability.

The air cups are machined from CNC-billet aluminum and feature a double-sealed piston design. With a simple button press, the front of the vehicle can be raised up to 2 inches in seconds, allowing lowered vehicles to navigate speed bumps, steep driveway inclines, and trailer ramps without scraping. The system is designed specifically for use with D2 RS Series front coilovers.

The Gold Control System uses a 3-way electronic valve with an LED-backlit button that integrates cleanly into the vehicle's dash. The vehicle lifts to full raised height when the button is engaged and returns to its lowered set height when pressed again to release.

RS Series Coilover Features:

• 36-way damping and rebound adjustment — monotube design for fine-tuned street and occasional track performance
• Separate height and preload adjustments for optimal suspension tuning
• Maintains full strut travel at all lowered ride heights
• Compatible with McPherson-style suspension applications

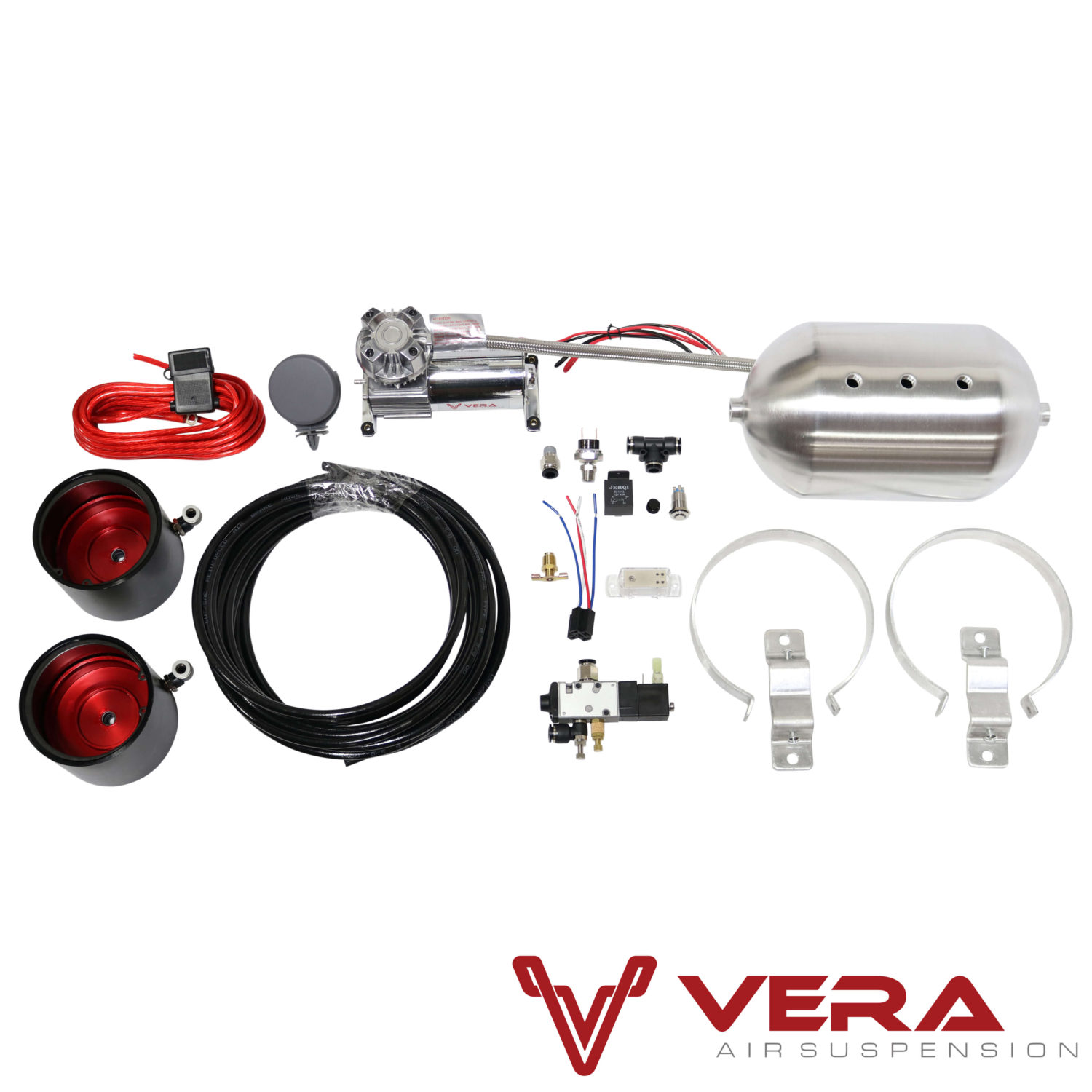

Kit Includes:

• (2) CNC-billet aluminum air cups with 20mm shock shaft diameter configuration
• 1.5-gallon seamless aluminum air tank with mounting brackets
• Vera 100C compressor
• IMI 3-way electronic valve with LED-backlit switch
• All necessary fittings, air lines, and hardware

The D2 Racing RS Series with Air Cups is the ideal upgrade for enthusiasts who want an aggressively lowered stance every day without sacrificing practicality.
