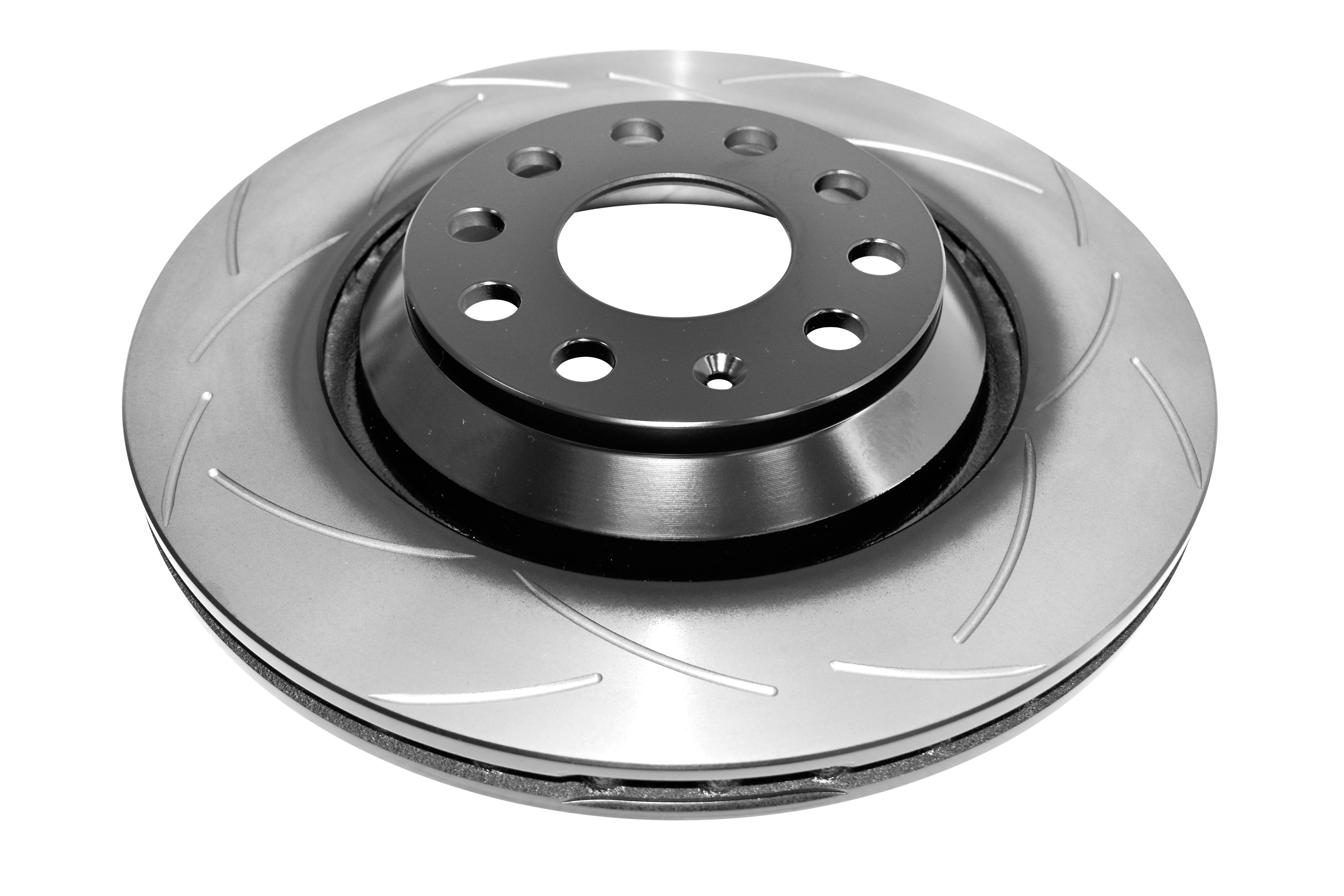

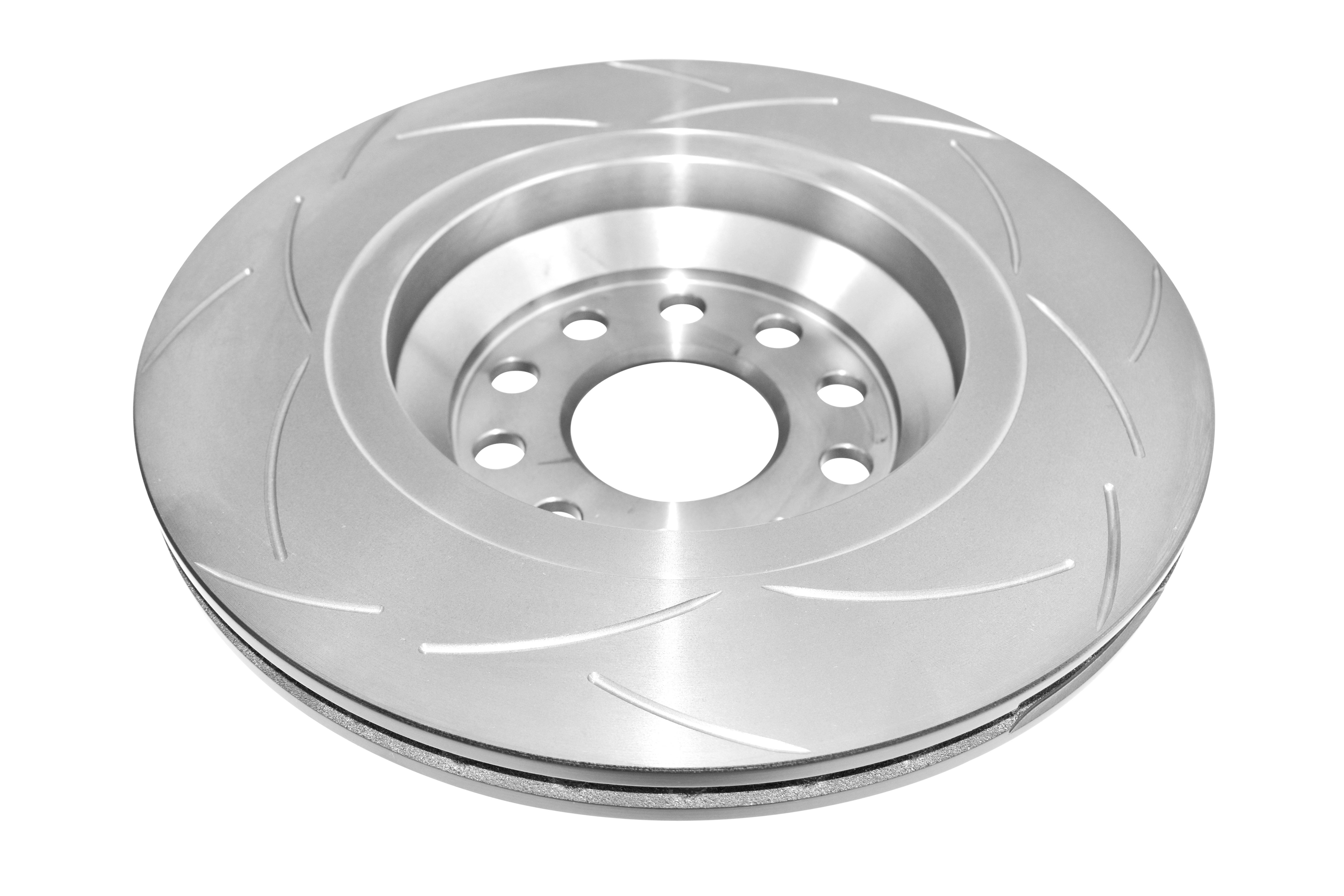

DBA DBA2809S Street Series T2 Slotted Rear Brake Rotor

The DBA DBA2809S is a rear Street Series T2 slotted brake rotor featuring DBA's patented T2 slot design, engineered to deliver enhanced performance over standard replacement rotors. This 310mm diameter rotor is designed for demanding street applications where responsive braking and consistent performance are essential.

Key Features:

• Precise CNC machined bi-symmetrical slots for quieter, more responsive brake pedal feel
• Increased exit points allow friction dust and gases to escape, enhancing pad bite
• Unique Kangaroo Paw vane design for up to 20% better heat dissipation
• CBN (Cubic Boron Nitride) machine-turned finish minimizes disc thickness variation and prevents pad knock
• Centre-split core castings for increased heat transfer and thermal efficiency
• Universal bi-symmetrical design eliminates separate left and right configurations
• ECE R90 approved for quality and safety assurance

Specifications:

• Rotor Diameter: 310mm (12.2")
• Disc Thickness: 22mm
• Minimum Thickness: 20mm
• Height: 48.5mm
• Bolt Circle: 112mm (5-bolt pattern)
• Center Hole: 65mm
• Construction: One-piece vented rotor
• Material: High-quality cast iron

Backed by DBA's over 40 years of braking expertise, these rotors are recommended for daily drivers, light commercial vehicles, and SUV applications. The T2 slot design is ideal for more intensive braking applications, providing superior performance without compromising quiet operation or pedal feel. Sold individually; two rotors required per vehicle.
