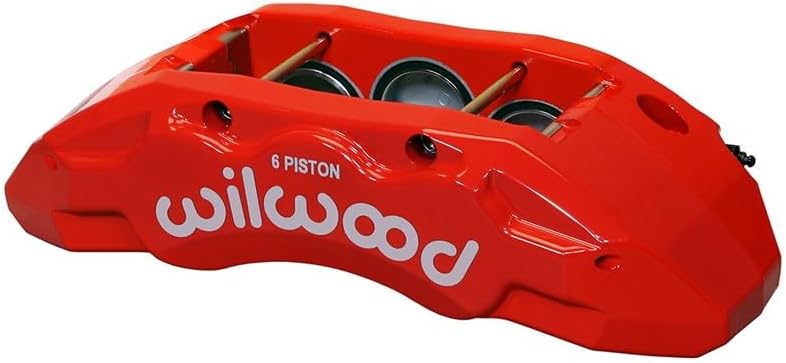

Wilwood 120-14599-RD Forged Radial Mount Brake Caliper - TX6R 6-Piston

The Wilwood TX6R Tactical Xtreme radial mount brake caliper is engineered for severe-duty applications on heavy-duty trucks, SUVs, and Class 1, 2, and 3 armored vehicles up to 14,000 lbs GVWR. This forged aluminum six-piston caliper delivers exceptional stopping power and durability in the most demanding conditions.

Key Features:

• Stress-flow forged aluminum 6-piston body for maximum strength and heat dissipation
• Stainless steel pistons with high-temperature internal bore seals
• Versatile radial mount design for easy adaptation to various applications
• Compatible with rotors from 14.25" to 16.00" diameter and widths from 1.38" to 1.50"
• Top-loaded Type 10120 brake pads (.770" thick) with rigid .240" thick backing plates for easy service
• Stainless steel bridge plates for corrosion resistance
• Protected single bleed design with internal fluid ports

The TX6R caliper combines lightweight construction with heavy-duty performance, making it ideal for tactical, law enforcement, and commercial vehicles requiring superior braking capability. The radial mount configuration provides increased rigidity and precise mounting geometry for consistent brake feel and performance.
