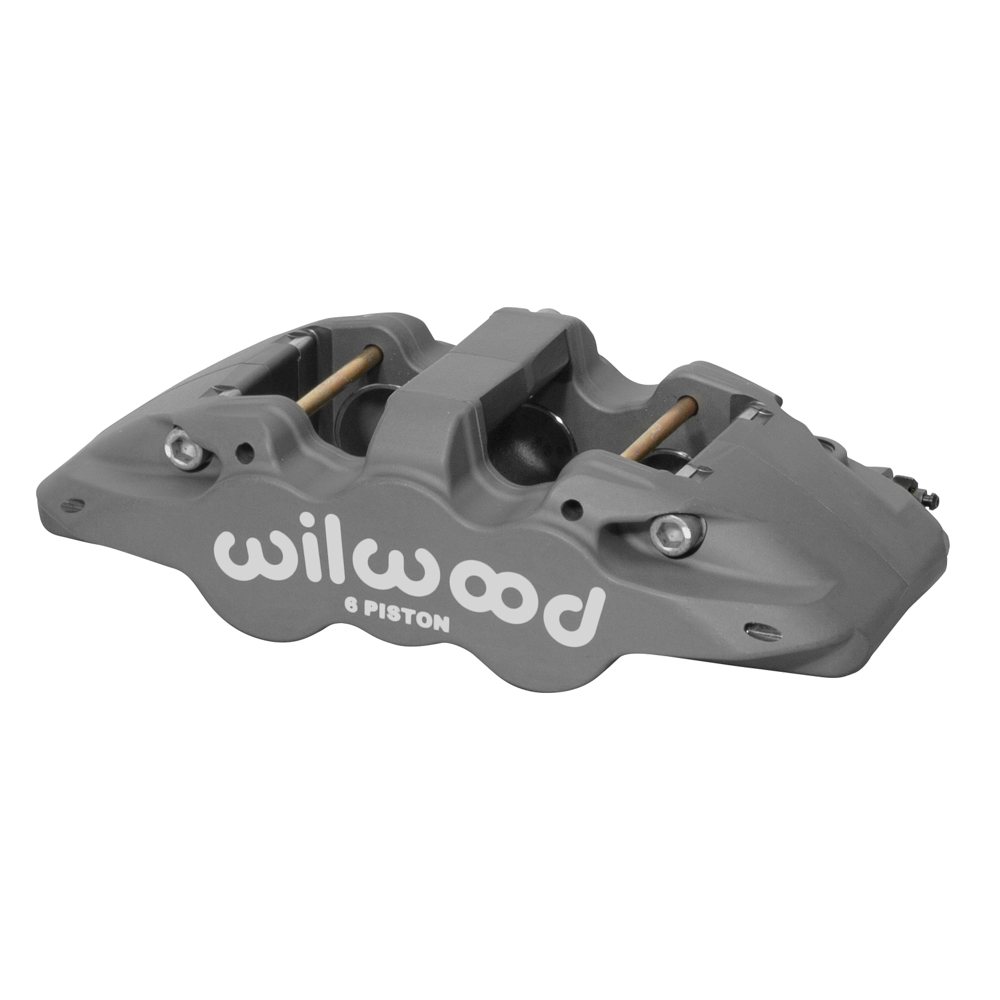

Wilwood 120-13290 Aero6 Forged Six Piston Brake Caliper Left Hand

The Wilwood Aero6 forged six piston caliper delivers heavy-duty stopping power for both street and track applications. Designed for versatility, this caliper features radial mounting, multiple piston volume configurations, and accommodates rotor diameters ranging from 12.88" to 15.00", making it ideal for demanding braking requirements on heavy vehicles.

Key Features:

• Stress-flow forged from premium grade aluminum alloy billet for superior strength
• Six piston design provides exceptional clamping force and fade resistance
• Radial mount configuration for optimized load distribution
• Left-hand caliper with anodized finish for corrosion protection
• Compatible with rotor diameters from 12.88" to 15.00"
• Forging process realigns internal grain structure for maximum durability

The Aero6's stress-flow forging process realigns the aluminum's internal grain structure to flow within the contour of the caliper body, eliminating the stresses and grain interruptions that occur with conventional straight block billet machining. This advanced manufacturing technique results in superior clamping efficiency and ultimate strength against fatigue, stress, and distortion under extreme braking loads.
