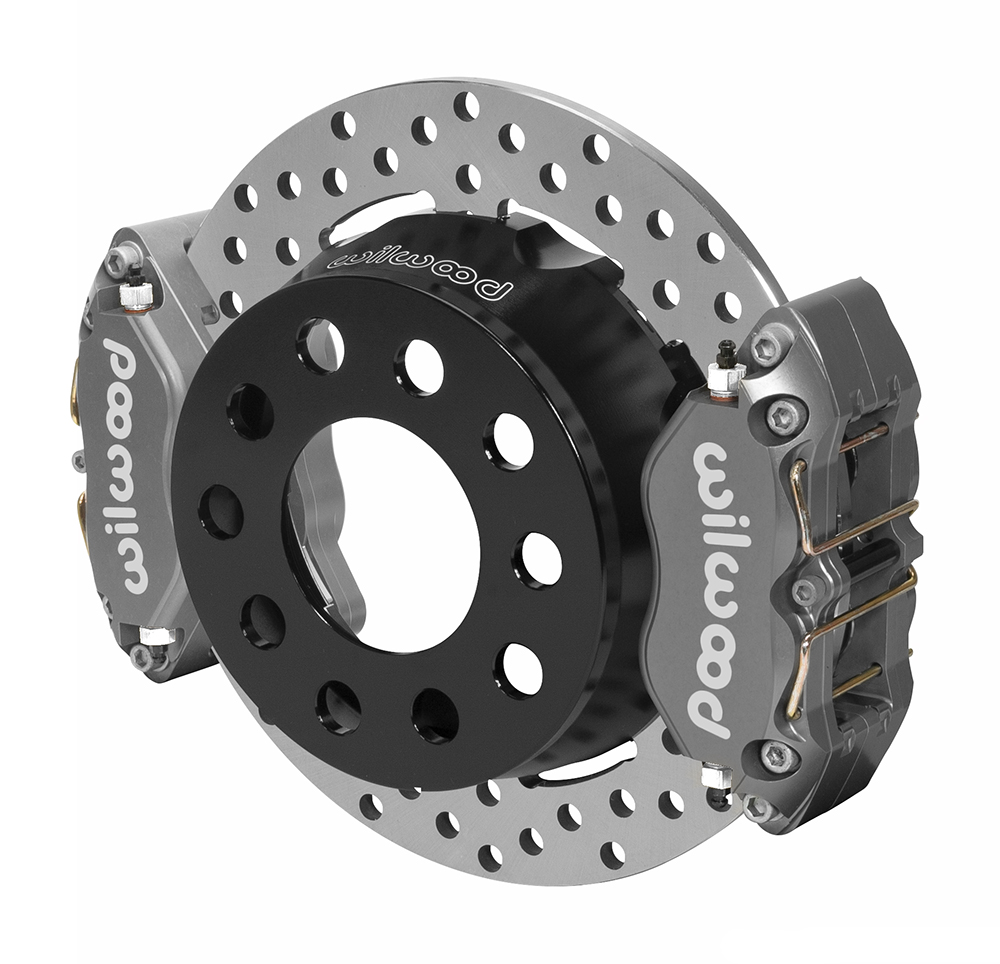

Wilwood 140-14148-D Dynapro SA Lug Drive Rear Drag Disc Brake Kit

The Wilwood Dynapro SA Lug Drive Dynamic Rear Drag Brake Kit (140-14148-D) is an engineered solution for high-performance drag racing applications where rear brakes carry an above-average share of stopping duty. Built around Wilwood's billet Dynapro caliper and Dynamic Stainless Super Alloy rotors, this kit is purpose-designed for high-speed, heavy vehicles that generate extreme rear brake heat.

Lug-Drive Rotor Mounting System:

The defining feature of this kit is Wilwood's innovative lug-drive rotor mounting design. Rather than using traditional rotor bolts, a single large internal snap-ring retains the rotor within the hat — making assembly and disassembly fast and straightforward. This floating attachment allows the rotor to move independently of the hat as it expands and contracts through heat cycles, fully eliminating thermally generated stress at the rotor attachment points. The result: rotors that stay flatter, run truer, and maintain consistent contact across the pad surface.

Hat Protection:

Spring-loaded, replaceable stainless steel inserts line each lug-drive slot in the aluminum hat. These inserts protect the hat from wear caused by the stainless steel rotor bearing against the aluminum under brake torque loads — significantly extending hat service life. Because thermal stress is no longer transferred to the hat, distortion from heat cycles is eliminated as well.

Key Features:

• Billet Dynapro 4-piston caliper with stainless steel pistons
• Dynamic Stainless Super Alloy rotor construction
• Lug-drive snap-ring rotor retention — no rotor bolts required
• Floating rotor design isolates thermal expansion from the hat
• Spring-loaded replaceable stainless steel lug-drive slot inserts
• Available in 11.44" rotor diameter (standard) or 11.25" diameter (bead lock rim clearance)
• Available in single and dual caliper configurations

The Wilwood 140-14148-D is a complete bolt-on rear drag brake kit engineered for the demands of competitive drag racing, offering a superior combination of thermal management, rotor longevity, and serviceability.
