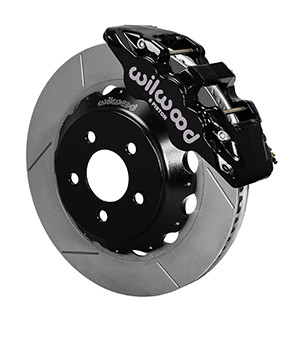

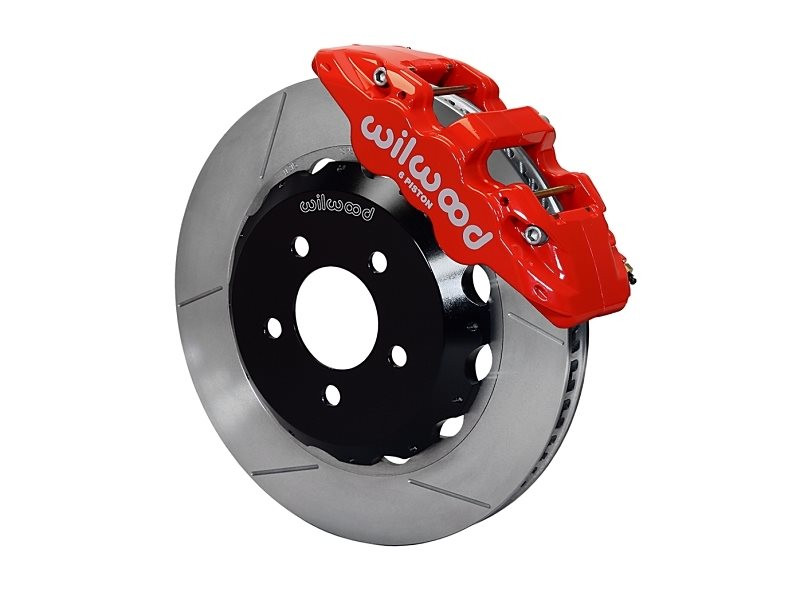

Wilwood 140-14584 AERO6 Front Hat Big Brake Kit 14.00" 6-Piston Disc Brake Kit

The Wilwood AERO6 Front Hat Kit is a high-performance big brake upgrade engineered for maximum stopping power using large-diameter 14.00" rotors. Featuring Wilwood's flagship AERO6 six-piston radial mount calipers, this kit delivers heavy-duty braking capacity suited for demanding street, track, towing, and off-road use.

The AERO6 caliper incorporates race-proven technology in a high-strength forged triple-bridge aluminum body with internal fluid ports that eliminate external crossover tubes for a cleaner, more rigid design. Six staggered pistons — with bore sizes of 1.62", 1.12", and 1.12" per side — distribute clamping force evenly across the pad face to minimize fade and extend service life by reducing heat transfer to the fluid and seals.

Key Features:

• AERO6 six-piston radial mount calipers with forged aluminum triple-bridge body
• 14.00" directional staggered-vane rotors with forged aluminum hats for maximum thermal cooling and high-heat durability
• Staggered piston bores: 1.62", 1.12", 1.12" for optimized pad pressure distribution
• Radial mount brackets locate the caliper at the OE spindle position — no modification required
• Fully compatible with OE master cylinder output and ABS function
• BP-20 dual-sport compound Smart Pads included — quiet street manners with high-temperature fade resistance for track use
• Available in multiple caliper finish options
• Requires a minimum 18" wheel diameter

The Wilwood 140-14584 AERO6 Front Hat Kit is the ultimate big brake disc brake upgrade for performance cars, trucks, and SUVs seeking increased stopping capability alongside aftermarket wheel and tire packages.
