Wilwood 140-14533-R DynaPro 6 Big Brake Front Hub Kit 12.19" Red Caliper

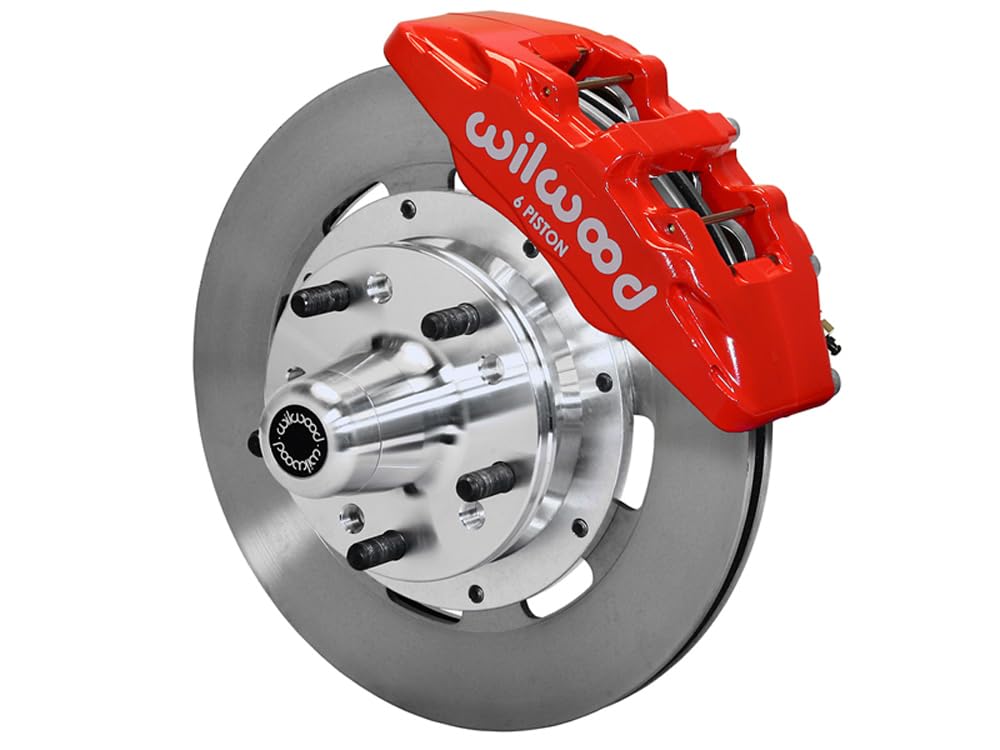

The Wilwood 140-14533-R is a complete DynaPro 6 (DP6A) Big Brake Front Hub Kit engineered for traditional non-ABS front spindle applications on American muscle cars, vintage hot rods, and custom street/strip builds. This kit pairs forged billet 6-piston DynaPro calipers in a striking red powdercoat finish with 12.19" diameter vented iron rotors, delivering serious stopping power over stock brake systems.

The calipers are stress-flow forged from premium-grade billet aluminum — a process that realigns the grain structure of the metal within the body contour for superior strength compared to parts simply machined from straight-grain billet. The six-piston design provides an intermediate-level upgrade in clamping force and pad performance, making this kit ideal for builders who want significant brake capacity gains without stepping up to a larger-diameter kit.

Rotors are manufactured from premium long-grain carbon iron for high thermal stability, excellent heat absorption and dissipation, and long service life. The vented construction promotes cooling airflow to help prevent heat fade during aggressive street and strip use. Kit is specially designed for 5 x 5.00" bolt circle wheels and includes machined aluminum hat assemblies and PolyMatrix brake pads.

Key Features:

• DynaPro 6-Piston Forged Billet Calipers — stress-flow forged for superior strength and rigidity
• Red Powdercoat Caliper Finish — show-quality appearance behind the wheel
• 12.19" Diameter Vented Iron Rotors — premium long-grain carbon iron with high thermal stability
• PolyMatrix Brake Pads — semi-metallic compound for improved stopping power and fade resistance
• Machined Aluminum Hat Assemblies — lightweight and precision-machined
• 5 x 5.00" Bolt Circle Compatibility — designed specifically for this wheel pattern
• Non-ABS Spindle Application — engineered for conventional front spindles
• Complete Hub Kit — all components included for a bolt-on installation

The Wilwood 140-14533-R is an ideal upgrade for custom show cars, high-performance street machines, and street/strip builds where wheel, tire, and suspension upgrades demand a matched increase in braking performance. Note: Installation may affect wheel offset — refer to kit instructions for wheel clearance information.
