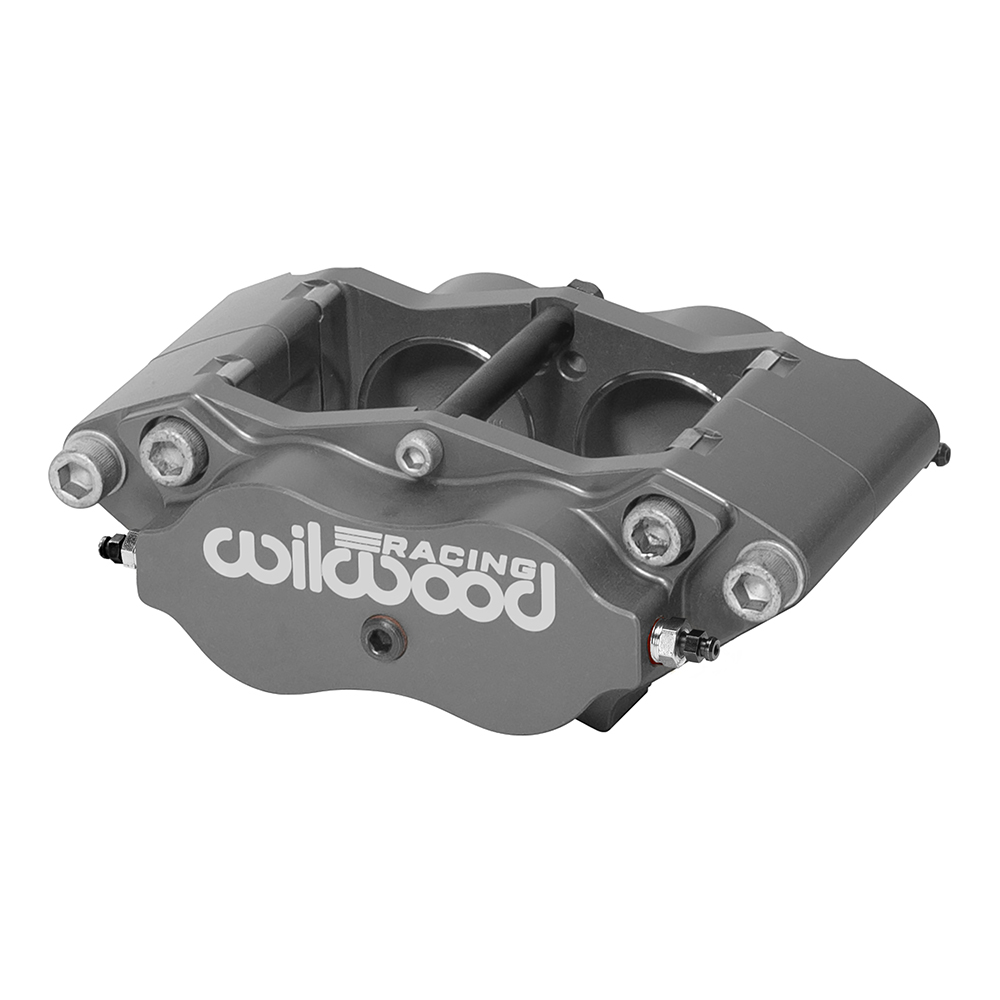

Wilwood 120-15568-SI Narrow Dynalite Radial Mount Brake Caliper

The Wilwood 120-15568-SI Billet Narrow Mount Dynalite (NDLR) Radial Mount caliper delivers high-performance braking in a compact, lightweight design ideal for Sprint and Midget inboard applications. Starting at just 3.00 pounds, this radial mount configuration features a 4.75" center mounting pattern and spacer-less design specifically engineered for .38", .810", and 1.00" width rotors.

Key Features:

• Fully CNC machined from billet aluminum for maximum strength and durability
• Four stainless steel cup pistons provide strong, consistent clamping force
• Internal fluid ports eliminate external fluid tubes for cleaner installation
• Dual corner bleeds and outboard inlets positioned for standard inboard mounting
• Stainless steel anti-rattle wear plates on bridges reduce wear and ensure smooth, quiet operation
• Single split bridge design with center bolt for added strength and positive pad retention
• Top-loaded pad design for easy maintenance
• Compact footprint ideal for tight clearance applications

This caliper combines Wilwood's proven engineering with precision manufacturing to deliver reliable, high-performance braking for competitive racing applications. The spacer-less design simplifies installation while the stainless steel components ensure long-term durability in demanding conditions.
