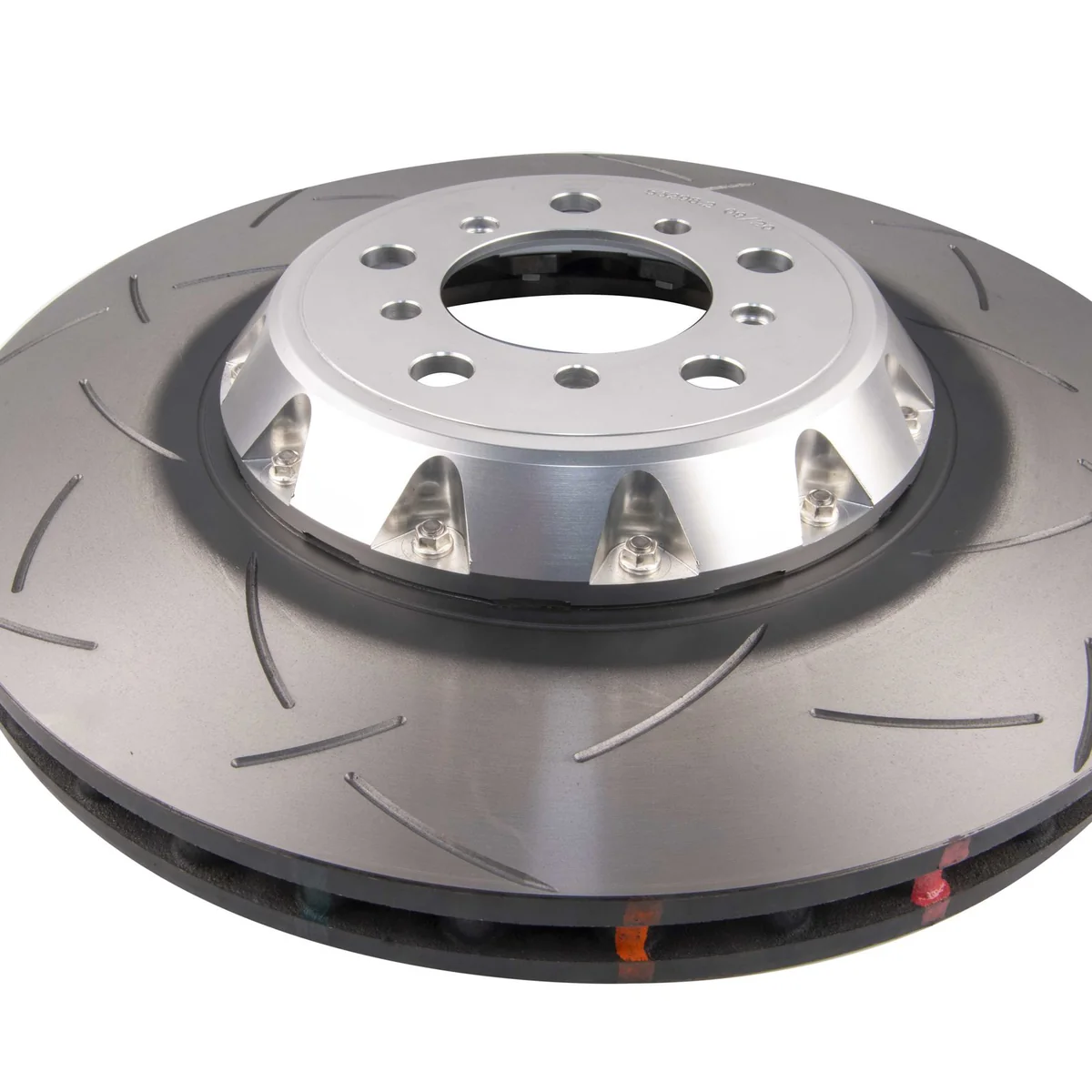

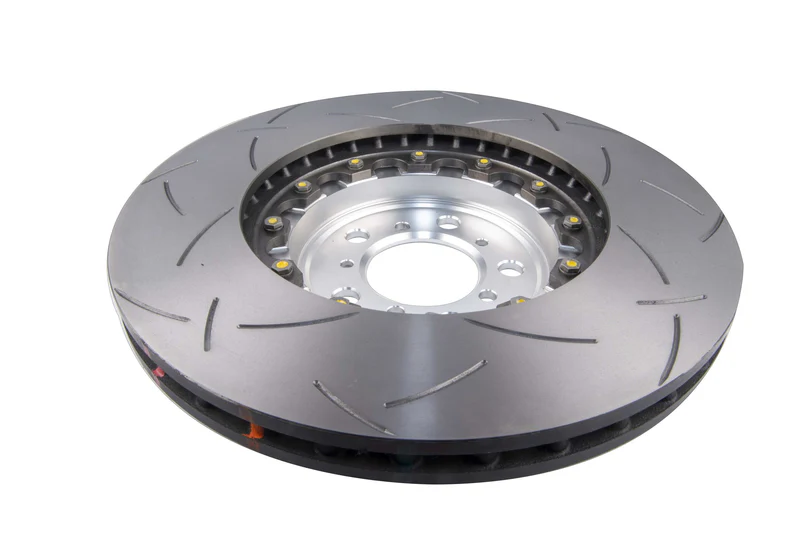

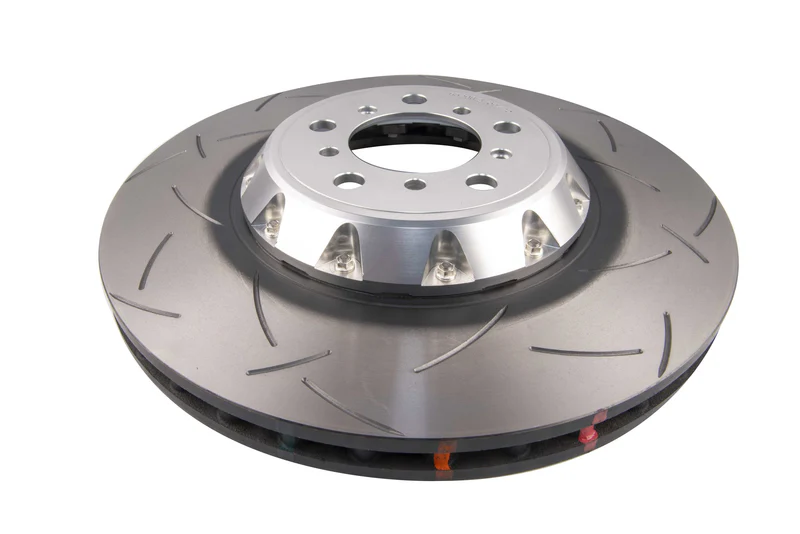

The DBA 53002SLVS 5000 Series T3 brake rotor represents the pinnacle of two-piece performance brake rotor engineering, designed specifically for high-performance street vehicles and track applications. This fully assembled 390mm x 36mm front rotor is engineered for 2013-2017 Audi RS6 and 2014-2017 Audi RS7 models, combining aerospace-grade materials with advanced thermal management technology.
Two-Piece Performance Design:
The 5000 Series features a composite two-piece construction that separates the rotor ring from the center hat, providing significant performance advantages over one-piece designs. The high-carbon cast iron rotor ring (XG-150 alloy) is secured to an aerospace-grade 6061-T6 aluminum center hat using National Aerospace Standards (NAS) bolts and crimp nuts. This design allows the cast iron disc to expand and contract uniformly during temperature changes, minimizing thermal stress and virtually eliminating warping. The lightweight aluminum hat reduces unsprung weight for improved handling and acceleration while acting as a thermal barrier that prevents heat transfer to wheel bearings and suspension components.
T3 Tri-Symmetrical Slot Technology:
DBA's patented T3 slot design features 48 precision CNC-machined tri-symmetrical curved slots that provide superior pad bite and friction consistency. The bi-directional slot pattern constantly de-glazes brake pads, evacuates gases and friction dust, and maintains optimal pad-to-rotor contact even under extreme braking conditions. The tri-symmetrical design dampens vibration harmonics, resulting in quieter operation and smoother pedal feel compared to traditional slot patterns.
Advanced Cooling Technology:
- Kangaroo Paw Ventilation: Features 144 diamond and teardrop-shaped pillars between rotor faces that increase cooling efficiency by up to 20% compared to conventional straight-vane designs
- Thermal Stability Profiling (TSP): Proprietary heat treatment process that realigns the iron's microstructure, enhancing thermal capacity and resistance to cracking under repeated extreme heat cycles
- Thermo-Graphic Heat Paint: Temperature-sensitive paint markings change color at critical temperature thresholds (green, orange, red), allowing drivers to monitor rotor temperatures and optimize brake pad selection
Premium Construction Features:
- XG-150 high-carbon alloyed iron rotor rings for maximum thermal capacity and durability
- Anodized silver aluminum hat finish for corrosion resistance and enhanced appearance
- CBN (Cubic Boron Nitride) machine-turned finish minimizes disc thickness variation and pad knock
- Center split core casting for increased heat transfer and thermal efficiency
- Symmetrical slot design allows universal left/right installation
- Replaceable rotor rings available separately for economical future replacement
Specifications:
- Rotor Diameter: 390mm (15.35")
- Rotor Thickness: 36mm (1.42")
- Rotor Ring Part Number: DBA53000.1S
- Hat Finish: Silver anodized aluminum
- Position: Front axle
- Sold individually (order two for complete axle)
DBA recommends the 5000 Series T3 rotors for high-performance street driving, track day events, club racing, and rally applications. These rotors deliver three times the longevity of conventional performance rotors while providing exceptional fade resistance and consistent pedal feel under the most demanding braking conditions.
