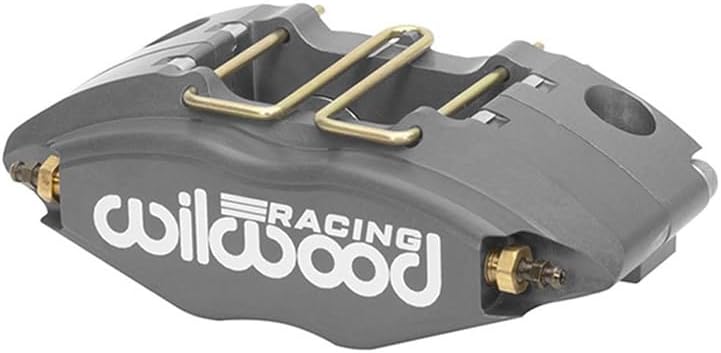

The Wilwood Powerlite-ST four piston radial mount caliper combines race-proven performance with an ultra-lightweight design, starting at just 2.5 pounds. Engineered for rally, circle track, and off-road applications, this caliper delivers superior strength and durability even in high-temperature braking situations. Wilwood's exclusive Thermlock pistons provide additional thermal insulation to protect the caliper from extreme rotor temperatures.
Advanced Stress-Flow Forging:
Strength comes from a combination of precision manufacturing and intelligent design. The stress-flow forging process re-aligns the metal's grain structure within the contour of the caliper body, eliminating internal stresses and interruptions that occur when machining from straight billet. The FEA-generated radial transition design eliminates steps and shoulders between the piston housing and caliper bridges, incorporating a radius that substantially increases resistance to deflection and separation under load.
Key Features:
- Ultra-lightweight design starting at 2.5 pounds
- Four piston radial mount configuration for simplified installation and service
- Thermlock pistons for superior heat insulation
- Stress-flow forged construction for maximum strength
- Uses 7912 type brake pads with Quick-Clip retainers for tool-free pad changes
- Compatible with rotor diameters between 9.45" (240mm) and 11.75" (298.5mm)
- Fits inside many 13" wheel applications
- SRS stainless steel bridge plates eliminate pad gouging and rattle
- Internal fluid passages eliminate external brake lines
- Four corner bleed screws allow mounting in four different positions
Installation and Compatibility:
The Powerlite-ST uses a new 7912 type brake pad supported from the top by Quick-Clip pad retainers, eliminating the need for a pad support step in the bottom of the caliper. This design provides additional clearance for mounting closer to the hub on small wheel and rotor applications. The Quick-Clips allow easy pad access without caliper removal, and brake pad compounds are available for the full range of sport and competition applications.
Every caliper is equipped with Wilwood's SRS stainless steel bridge plates that eliminate bridge wear caused by pad gouging. The spring-loading action of the SRS plates also eliminates pad rattle and dampens vibration harmonics that contribute to brake squeal. Bracket kits are available to install the calipers in place of most lug mount calipers, with radial mounting that simplifies service and provides two planes of adjustment for precise alignment over the disc.
