TeraFlex 1318010 Alpine IR Long Arm & Bracket Kit 8-Arm 3-6 Inch Lift Jeep Gladiator JT

(2020-2025 Jeep Gladiator)

Manufacturer

Part Number

1318010
Sale Price

$3,899.94

Estimated ship date Monday, November 30

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The TeraFlex 1318010 Alpine IR Long Arm & Bracket Kit delivers complete suspension alignment adjustability and long-term dependability for Jeep Gladiator JT builds running 3–6 inch lifts. This comprehensive 8-arm kit pairs TeraFlex's acclaimed Alpine IR Long Arms with purpose-built Long Arm Brackets and a front suspension crossmember, giving you a fully integrated solution that can be added to any existing suspension lift.

At the heart of this kit are TeraFlex's Independent Rotation (IR) Bushings — a maintenance-free design engineered to eliminate bushing bind by allowing unrestricted rotation and flex at every suspension articulation point. The result is significantly improved noise, vibration, and harshness (NVH) damping for a more comfortable ride both on the street and on the trail.

The CAD-engineered Long Arm Brackets are built for maximum structural strength while streamlining frame-end mounting. Each bracket incorporates both upper and lower control arm mounts into a single unit, simplifying installation and preserving a clean, factory-like appearance. On higher lifts, the brackets reposition frame-end control arm mounting points to restore near-factory orientation, reducing bushing stress during extreme droop and minimizing shock load transferred through the arms. The included Front Long Arm Suspension Crossmember adds an additional layer of rigidity to the front suspension system.

The adjustable long arms balance front caster angle and pinion angles while optimizing rear pinion angle, anti-squat geometry, and tire positioning — all critical factors for a properly aligned, high-lift Gladiator.

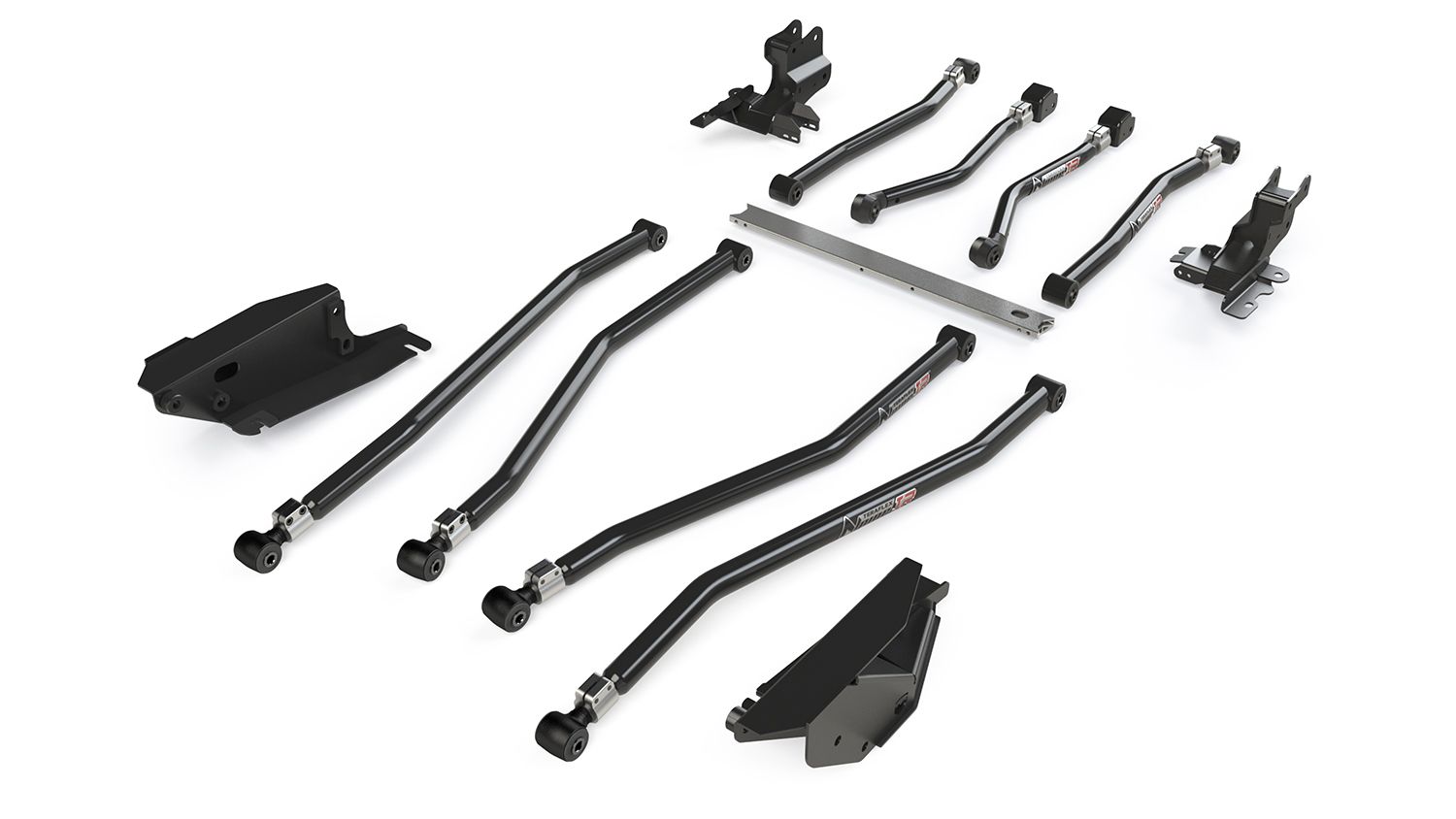

What's Included:

  • Alpine IR Long Arm Kit – 8-Arm (# 1318005):
    • Front Upper Long Arm Pair (# 1310520)
    • Front Lower Long Arm Pair (# 1310500)
    • Rear Upper Long Arm Pair (# 1418550)
    • Rear Lower Long Arm Pair (# 1418560)
  • Long Arm Bracket Kit (# 1968000):
    • Front Long Arm Brackets
    • Rear Long Arm Brackets
    • Front Long Arm Suspension Crossmember
    • All necessary hardware

Control Arm Specifications:

  • Front Upper Arm Pair (# 1310520):
    • Tube Diameter & Wall: 42mm x 4mm DOM
    • Factory Length: 20-1/4 in. | Min: 27-3/4 in. | Max: 28-7/8 in.
    • Axle Bolt: 12mm | Frame Bolt: 14mm
    • IR Bushing – Axle: 611018 | IR Bushing – Frame: 611016
  • Front Lower Arm Pair (# 1310500):
    • Tube Diameter & Wall: 50mm x 5mm DOM
    • Factory Length: 24 in. | Min: 30-7/8 in. | Max: 32 in.
    • Bolt – Both Ends: 16mm | IR Bushing – Both: 611020
  • Rear Upper Arm Pair (# 1418550):
    • Tube Diameter & Wall: 50mm x 5mm DOM
    • Factory Length: 16-3/8 in. | Min: 43-1/2 in. | Max: 44-5/8 in.
    • Bolt – Both Ends: 16mm | IR Bushing – Both: 611020
  • Rear Lower Arm Pair (# 1418560):
    • Tube Diameter & Wall: 50mm x 5mm DOM
    • Factory Length: 23-3/4 in. | Min: 47-3/4 in. | Max: 49 in.
    • Bolt – Both Ends: 16mm | IR Bushing – Both: 611020

Installation Notes: Installation requires cutting and removal of factory control arm bracketry. Long Arm Brackets (# 1968000) may not be compatible with all rock sliders — some may require partial disassembly. A full alignment is required after installation. The optional RockGuard Transmission Skid Plate & Long Arm Crossmember Reinforcement (# 4609100) is available separately and is strongly recommended.

Products specifications

Fits

2020-2025 Jeep Gladiator

Country of Origin

USA

Prop 65

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

NAFTA

B

Series

Alpine

Harmonized Tariff Code

8708.80.65.9

Sold As

Kit
