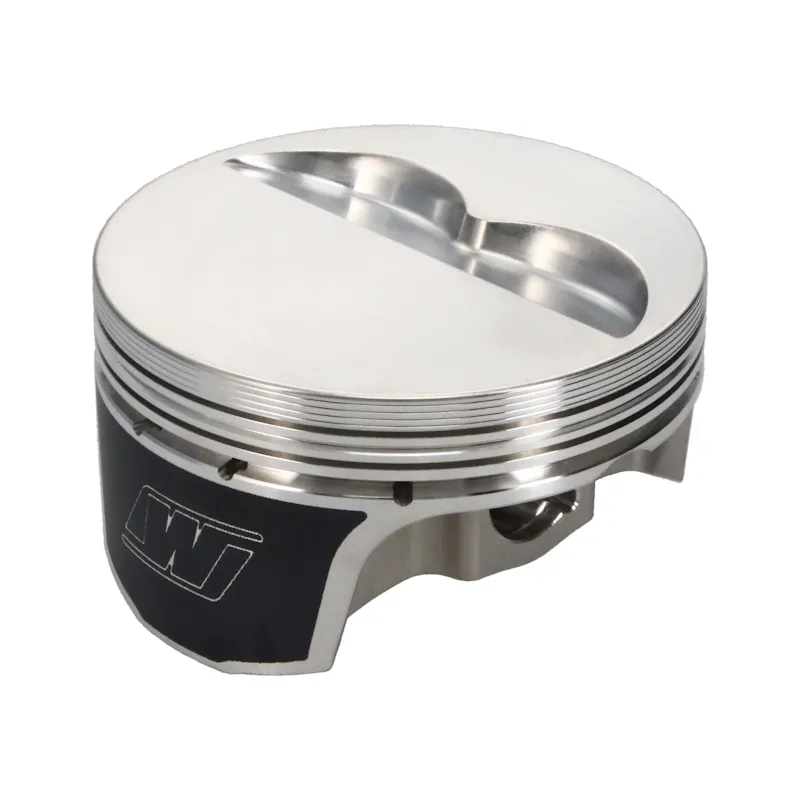

Wiseco Pistons RED0016XS RED Series Forged Aluminum Piston Set 4.010 Bore Small Block Chevy

Manufacturer

Part Number

RED0016XS
Black Friday Price

$899.99

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wiseco RED0016XS RED Series forged piston set delivers race-engineered performance for Small Block Chevy engines. Designed with a 4.010-inch bore, -5.70cc flat top, 3.480-inch stroke, and 6.000-inch rod length, this 8-piston set combines strength, durability, and precision machining to provide a competitive edge in performance builds.

Key Features:

  • Forged and machined from high-strength 2618 aluminum alloy for superior tensile strength in racing and power adder applications
  • Race Engineered Design (RED) technology with dedicated forgings for optimized, engine-specific strutted construction
  • ArmorGlide skirt coating reduces operating friction, noise, and wear on both piston skirts and cylinder walls
  • Horizontal slot oiling in pin bores ensures optimal wrist pin and small-end lubrication for extended service life
  • Accumulator groove design maintains consistent ring seal and optimal power output over time
  • Premium piston rings included with every set—no additional sourcing required
  • Flat top design with -5.70cc volume for precise compression control
  • Engineered in the USA at Wiseco's state-of-the-art manufacturing facility

The RED Series offers the ultimate balance of performance and value for domestic V8 builds, from drag racing to circle track applications. Each piston features precision-machined surfaces and grain flow alignment through the forging process, resulting in improved material properties including ultimate strength and ductility under high stress conditions.

Products specifications

Piston Quantity

8

Stroke

3.750

Wrist Pin Style

Floating

Make

Chevrolet

Piston Material

2618

Wrist Pin Outer Diameter

0.927

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bore Diameter

4.000

Oil Ring Thickness

2.80

Compression Height

1.425

Industry

Automotive

Product Market

Domestic

Second Compression Ring Thickness

1.20

Top Compression Ring Thickness

1.00

Engine

Small Block

Engine Type

ICE

Wrist Pin Material

5115

Product Type

Engine Piston Set

Forging Type

Strutted

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

EBAY Category ID

33623

Engine - Web

Small Block Gen I

Make - Web

Chevrolet

Ring Set Included

Yes

Skirt Coating

Yes

Wrist Pin Included

Yes

Rod Length

5.700

Piston Volume

-5.70

Product Series

RED Series

Title

RED Series - Chevrolet, Small Block, 4.000 in. Bore, Piston Set of 8

Title - Web

RED Series Chevy Small Block Piston Set of 8 - 4.000 in. Bore - 1.425 .in CH, -5.70 CC
