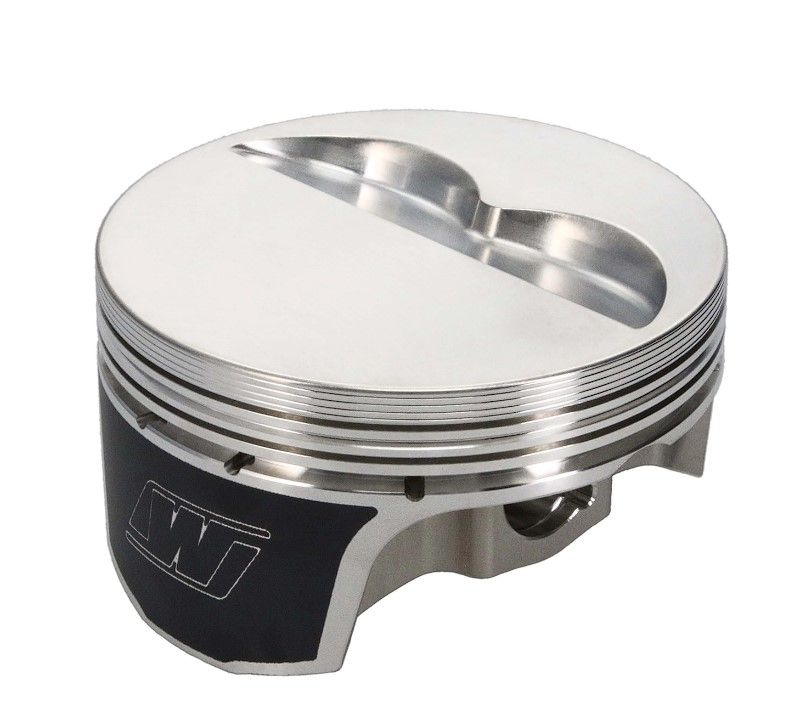

Wiseco RED0016X6 RED Series Forged Piston Set 4.060 Bore Flat Top with Rings

Manufacturer

Part Number

RED0016X6
Black Friday Price

$899.99

Estimated ship date Thursday, December 03

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wiseco RED0016X6 is part of Wiseco's RED (Race Engineered Design) Series forged piston kit lineup, purpose-built for Small Block Chevrolet engines with a 23-degree valve angle. This set delivers a 4.060-inch bore with a 10.2:1 compression ratio flat-top design, making it an ideal choice for high-performance street, strip, and circle track applications.

Key Features:

  • Bore: 4.060 inches
  • Compression Ratio: 10.2:1
  • Piston Style: Flat Top (-5.7cc)
  • Valve Relief Angle: 23 degrees (SB Chevy)
  • Wrist Pin Diameter: 0.927 inches
  • Rod Length: 5.850 inches
  • Stroke: 3.480 inches

Forged from aerospace-grade aluminum, Wiseco's exclusive forging process compresses the material's molecular structure to increase density, align grain flow, and produce a piston that is highly resistant to impact and fatigue — critical for high-compression, high-horsepower builds. Each piston is precision-machined using 3D design techniques and finite element modeling to achieve the optimal balance of strength and light weight.

The RED Series offers an outstanding combination of race-proven performance and competitive value, making it a smart upgrade over cast pistons for any serious Small Block Chevy build targeting drag racing, circle track, or performance street use.

Products specifications

Piston Quantity

8

Stroke

3.750

Wrist Pin Style

Floating

Make

Chevrolet

Piston Material

2618

Wrist Pin Outer Diameter

0.927

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bore Diameter

4.060

Oil Ring Thickness

2.80

Compression Height

1.425

Industry

Automotive

Product Market

Domestic

Second Compression Ring Thickness

1.20

Top Compression Ring Thickness

1.00

Engine

Small Block

Engine Type

ICE

Wrist Pin Material

5115

Product Type

Engine Piston Set

Forging Type

Strutted

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

EBAY Category ID

33623

Engine - Web

Small Block Gen I

Make - Web

Chevrolet

Ring Set Included

Yes

Skirt Coating

Yes

Wrist Pin Included

Yes

Rod Length

5.700

Piston Volume

-5.70

Title

RED Series - Chevrolet, Small Block, 4.060 in. Bore, Piston Set of 8

Product Series

RED Series

Title - Web

RED Series Chevy Small Block Piston Set of 8 - 4.060 in. Bore - 1.425 .in CH, -5.70 CC
