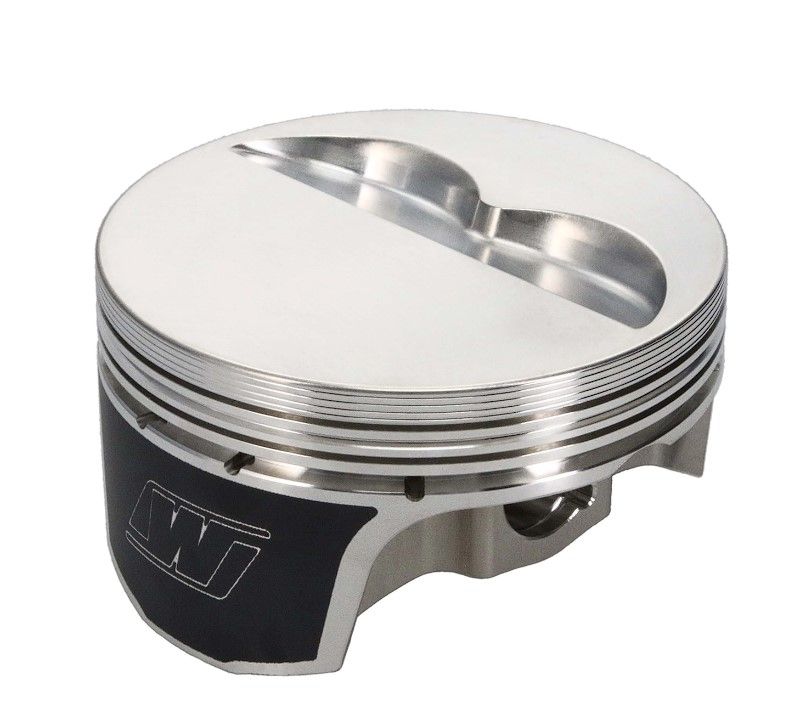

Wiseco RED0016X3 RED Series Forged Piston Set Chevy Small Block 4.030 in. Bore

Manufacturer

Part Number

RED0016X3
Black Friday Price

$899.99

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wiseco RED0016X3 is a RED™ Series forged piston set engineered for the Chevrolet Small Block Gen I (23-degree) platform. Featuring a 4.030 in. bore, 1.425 in. compression height, and a 0.927 in. wrist pin diameter, this flat-top piston set is designed for high-output performance engines running a 3.480 in. stroke and 5.850 in. rod length.

Key Features:

  • Engineered, forged, and machined in the USA from 2618 aluminum alloy for the tensile strength required in performance racing and power-adder applications
  • Dedicated engine-specific forgings with an optimized strutted design to maximize strength-to-weight characteristics
  • ArmorGlide® skirt coating reduces operating friction and noise while minimizing skirt and cylinder wall wear
  • Accumulator groove helps maintain consistent ring seal and sustained power output
  • Horizontal slot oiling in pin bores maintains optimal wrist pin and small-end lubrication for long service life
  • Premium rings included — no additional sourcing required
  • Flat-top piston crown with -5.7cc dish; compatible with 23-degree SBC cylinder heads

The RED™ (Race Engineered Design™) series delivers the strength and durability that competition engines demand, from drag racing to circle track applications. This set is sold as 8 pistons with rings, ready for professional engine assembly.

Specifications:

  • Bore: 4.030 in.
  • Compression Height: 1.425 in.
  • Pin Diameter: 0.927 in.
  • Stroke: 3.480 in.
  • Rod Length: 5.850 in.
  • Crown Style: Flat Top (-5.7cc)
  • Head Angle: 23 Degrees
  • Material: 2618 Forged Aluminum
  • Manufactured in the USA

Products specifications

Piston Quantity

8

Stroke

3.750

Wrist Pin Style

Floating

Make

Chevrolet

Piston Material

2618

Wrist Pin Outer Diameter

0.927

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bore Diameter

4.030

Oil Ring Thickness

2.80

Compression Height

1.425

Industry

Automotive

Product Market

Domestic

Second Compression Ring Thickness

1.20

Top Compression Ring Thickness

1.00

Engine

Small Block

Engine Type

ICE

Wrist Pin Material

5115

Product Type

Engine Piston Set

Forging Type

Strutted

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

EBAY Category ID

33623

Engine - Web

Small Block Gen I

Make - Web

Chevrolet

Ring Set Included

Yes

Skirt Coating

Yes

Wrist Pin Included

Yes

Rod Length

5.700

Piston Volume

-5.70

Title

RED Series - Chevrolet, Small Block, 4.030 in. Bore, Piston Set of 8

Product Series

RED Series

Title - Web

RED Series Chevy Small Block Piston Set of 8 - 4.030 in. Bore - 1.425 .in CH, -5.70 CC
