Wiseco Pistons RED0004X4 RED Series Forged Piston Set Small Block Chevy 4.165" Bore 11.2:1 Compression

Manufacturer

Part Number

RED0004X4
Black Friday Price

$899.99

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

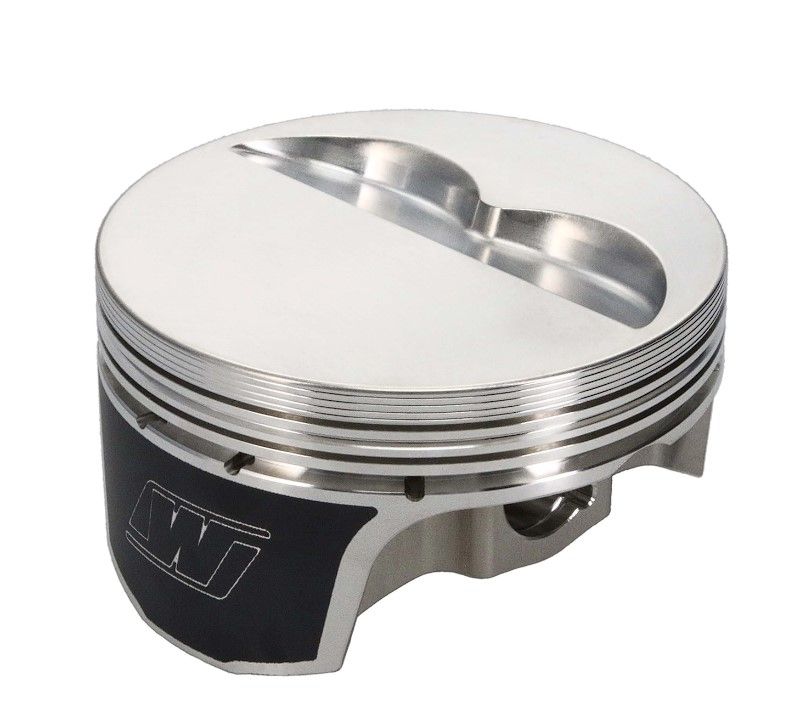

Wiseco RED Series Forged Piston Set for Small Block Chevy

The Wiseco RED0004X4 is a complete forged piston kit designed specifically for Small Block Chevy 23-degree engines. This 8-piston set features Race Engineered Design (RED) technology, delivering the ultimate balance of performance and value for drag racing, circle track, and high-performance street applications. Engineered, forged, and machined from premium 2618 aluminum alloy in the USA, these pistons provide the tensile strength and durability required for power adder applications and serious racing builds.

Key Specifications

  • Application: Small Block Chevy 23-degree heads
  • Bore Size: 4.165 inches
  • Compression Ratio: 11.2:1 (with 64cc chamber and zero deck)
  • Piston Design: Flat top with -6.6cc volume
  • Stroke: 3.875 inches
  • Rod Length: 5.850 inches
  • Wrist Pin Diameter: 0.927 inch
  • Ring Pack: Premium 1.2mm, 1.2mm, 3.0mm (included)

Performance Features

  • 2618 Aluminum Forging: Provides superior tensile strength for high-stress racing and forced induction applications
  • Dedicated Engine-Specific Design: Optimized strutted forging maximizes strength-to-weight characteristics
  • ArmorGlide Skirt Coating: Reduces operating friction, noise, and wear on both skirts and cylinder walls
  • Anti-Detonation Grooves: Pressure seal and anti-detonation grooves enhance reliability under high cylinder pressures
  • Chamfered Pin Design: 0.150-inch wall chamfered pin with round wire locks for secure retention
  • Horizontal Slot Oiling: Improved lubrication for enhanced durability

What's Included

Each complete RED Series piston kit includes high-quality piston rings, wrist pins, and circlips—everything needed for a professional installation. The pistons are designed for zero deck height with a 0.040-inch head gasket to achieve the specified 11.2:1 compression ratio.

About Wiseco RED Series

Wiseco's RED Series pistons are engineered for serious racers and performance enthusiasts who demand professional-grade components at a competitive price point. Suitable for builds ranging from naturally aspirated to power adder applications, RED Series pistons are trusted across drag racing and circle track competition. With over 80 years of piston manufacturing expertise, Wiseco continues to set the standard for forged performance pistons in the domestic V8 market.

Products specifications

Piston Quantity

8

Stroke

3.875

Wrist Pin Style

Floating

Make

Chevrolet

Piston Material

2618

Wrist Pin Outer Diameter

0.927

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bore Diameter

4.165

Oil Ring Thickness

3.00

Compression Height

1.215

Industry

Automotive

Product Market

Domestic

Second Compression Ring Thickness

1.20

Top Compression Ring Thickness

1.20

Engine Type

ICE

Wrist Pin Material

5115

Product Type

Engine Piston Set

Forging Type

Strutted

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

EBAY Category ID

33623

Engine - Web

Small Block Gen I

Make - Web

Chevrolet

Ring Set Included

Yes

Skirt Coating

Yes

Wrist Pin Included

Yes

Engine

Small Block 400

Rod Length

5.850

Title

RED Series - Chevrolet, Small Block, 4.165 in. Bore, Piston Set of 8

Product Series

RED Series

Piston Volume

-6.60

Title - Web

RED Series Chevy Small Block Piston Set of 8 - 4.165 in. Bore - 1.215 .in CH, -6.60 CC
