ICON Vehicle Dynamics K73073 Stage EXP Suspension System Lift Billet UCA - 3 2.375-3.75

(2019-2023 Chevrolet Silverado 1500; 2019-2023 GMC Sierra 1500)

Manufacturer

Part Number

K73073
Black Friday Price

$3,182.60

In Stock (5)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

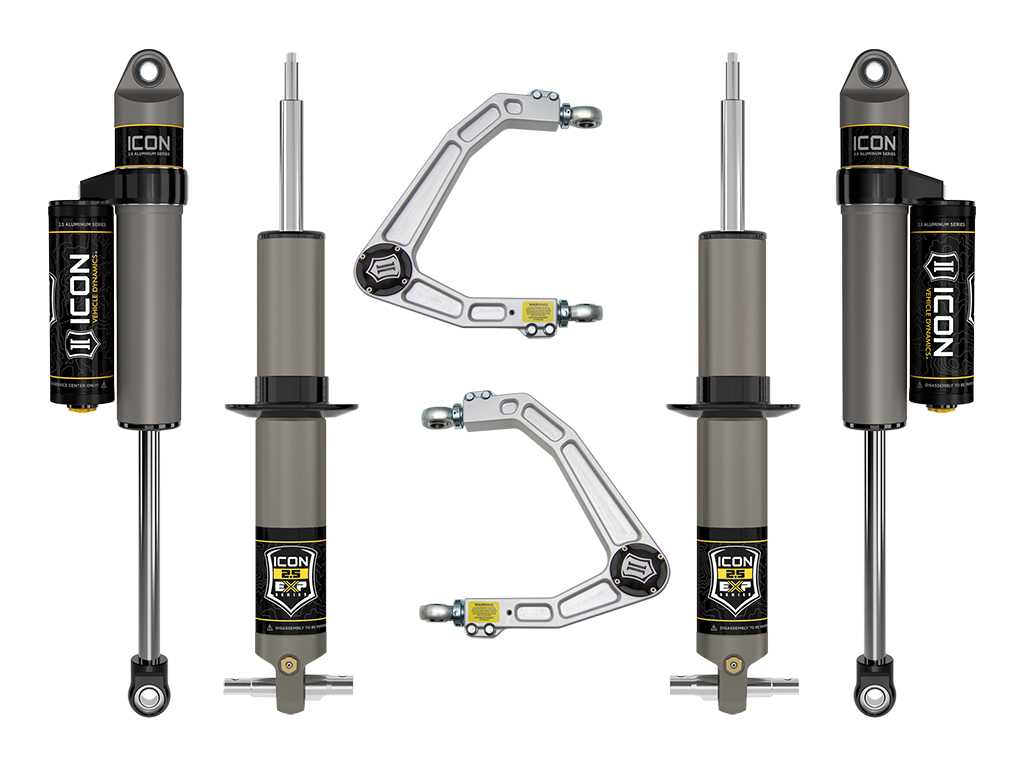

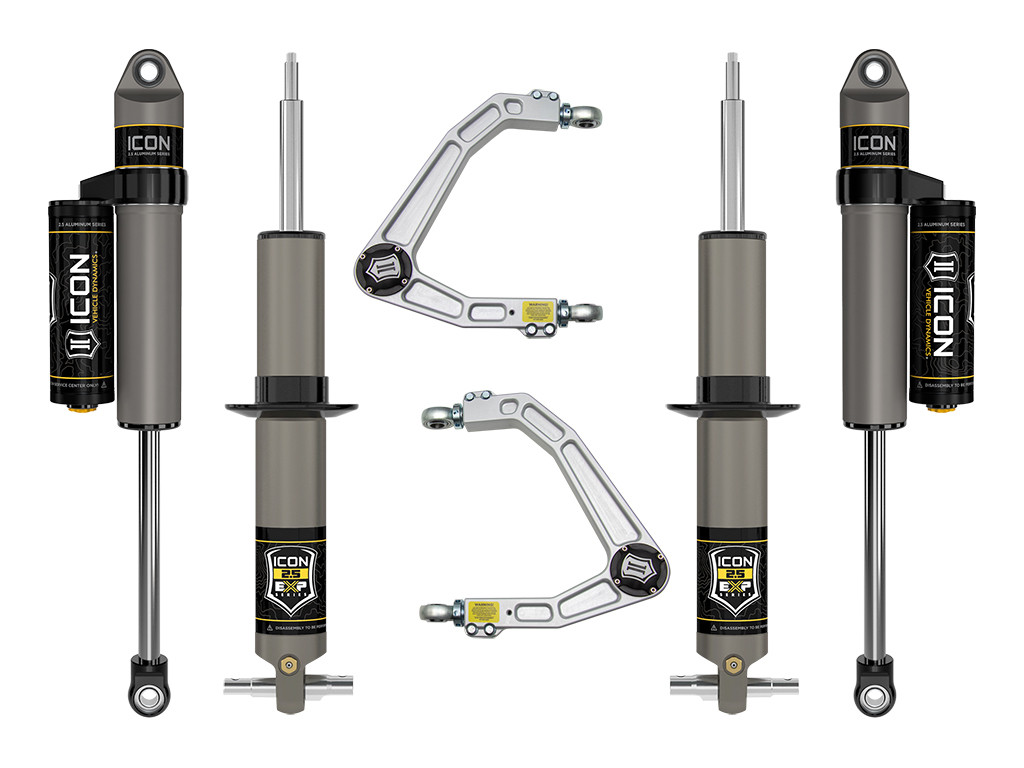

The ICON Vehicle Dynamics Stage 3 EXP complete suspension system for 2019-2023 GM 1500 pickups delivers professional-grade performance with a comprehensive front and rear upgrade. This system combines ICON's innovative 2.5 EXP Series front coilover shocks with billet aluminum upper control arms and 2.5 Aluminum Series rear piggyback shocks, providing adjustable lift heights, proper alignment geometry, and balanced vehicle control for both on-road comfort and off-road capability.

Front Suspension Components:

  • 2.5 EXP Series coilover shocks with internal reservoirs that utilize factory coil springs and hardware
  • Adjustable front ride heights from 2.375-3.75 inches of lift over stock using snap ring adjustment (lift heights vary slightly depending on trim and engine)
  • Fully rebuildable and re-tunable 2.5-inch diameter shock absorbers
  • 7/8-inch diameter induction hardened, chrome plated shock shaft with inverted shaft-up design
  • One-piece impact extruded hard anodized aluminum cylinders for excellent corrosion resistance
  • Billet aluminum upper control arms for increased strength, durability, and on-vehicle caster/camber adjustment
  • ICON Delta Joint (U.S. Patent No. 10,731,700) replaces OE ball joint for full bump and droop travel while eliminating bind

Rear Suspension Components:

  • 2.5 Aluminum Series shock absorbers with piggyback reservoirs specially tuned for 2019-2023 GM 1500 trucks
  • Larger 2.5-inch diameter body offers outstanding off-road performance and smooth on-road ride quality
  • Piggyback reservoirs maintain cooler operating temperatures during heavy use and provide consistent damping
  • Internal Bump Zone feature creates an additional 20% of damping force to control hard bottom-outs
  • CNC machined 6061 aluminum components with black anodized finish

Key Benefits:

  • Proper stance and fitment for up to 35-inch tires on Silverado 1500 (up to 34-inch on Sierra 1500)
  • Corrected front-end geometry with increased camber and caster adjustment range for optimum drivability at any ride height
  • Bridges the gap between spacer lifts and threaded body coilovers with custom-tuned performance and maximum travel
  • Balanced front-to-rear damping delivers excellent overall driving experience
  • All ICON shock absorbers are fully rebuildable and re-tunable

Important Notes:

  • Not compatible with models equipped with Adaptive Ride Control (ARC)
  • Not compatible with Silverado 1500 ZR2, Sierra 1500 AT4X, Silverado 1500 Trail Boss, or Sierra 1500 AT4 sub-models
  • Trimming of upper control arm stop required or down travel will be limited
  • Minor fender trimming may be required for recommended tire sizes
  • Lift height ranges vary with Duramax diesel engines (approximately 1.75-3 inches)

ICON Vehicle Dynamics is a premier performance suspension manufacturer led by head engineer and SCORE champion driver Dylan Evans, combining real-world testing with race-proven engineering to deliver world-class suspension systems.

WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Products specifications

Fits

2019-2023 Chevrolet Silverado 1500; 2019-2023 GMC Sierra 1500
