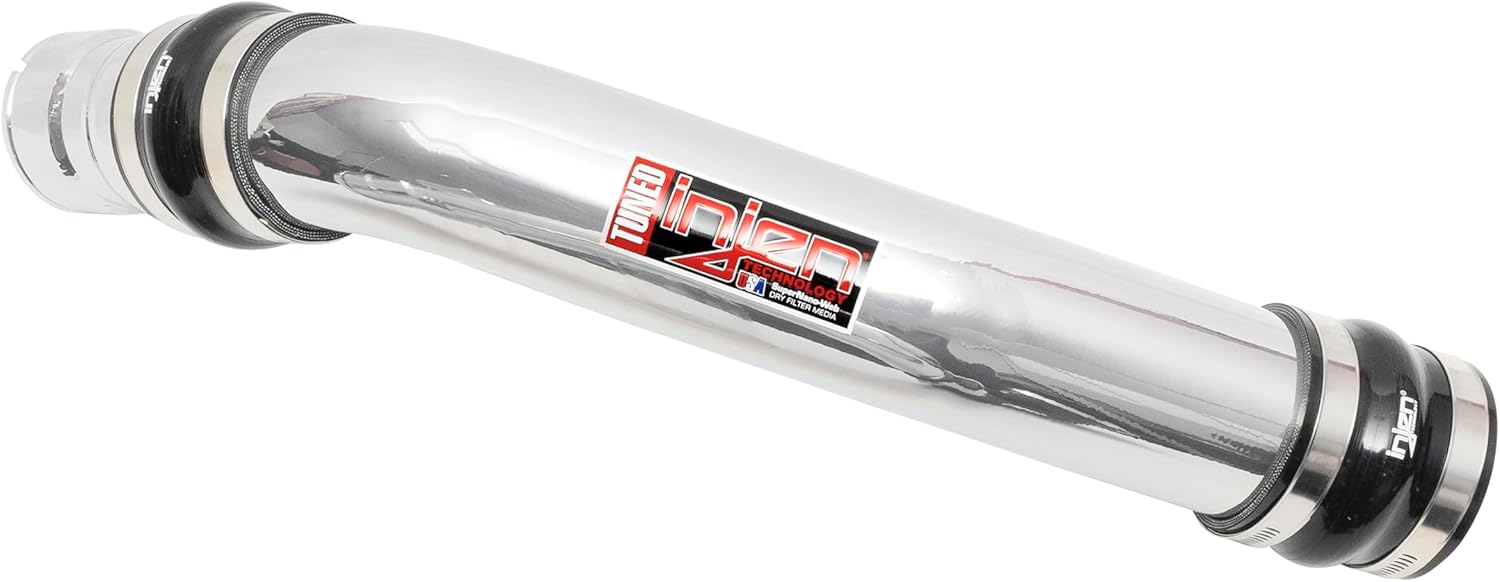

Injen SES9004ICPH Hot Side Intercooler Charge Pipe Polished - Ford Super Duty 6.7L

The Injen SES9004ICPH hot side intercooler charge pipe is a precision-engineered performance upgrade for 2017-2022 Ford Super Duty trucks equipped with the 6.7L Power Stroke diesel engine. Designed to reduce restriction and improve airflow efficiency, this polished aluminum charge pipe helps maximize throttle response while reducing turbo lag and exhaust gas temperatures (EGTs).

Performance Engineering:

Manufactured from mandrel-bent 6061 aluminum with a 3.00-inch internal diameter, this hot side pipe significantly reduces airflow restriction compared to the factory unit. Each bend and TIG weld is completed by hand at Injen Technology's headquarters in Pomona, California. The oversized design allows hot compressed air to transfer smoothly from the turbocharger to the intercooler, balancing airflow to improve overall performance and help lower engine-damaging exhaust gas temperatures.

Key Features:

• 3.00-inch internal diameter for maximum flow
• Hand-welded mandrel-bent 6061 aluminum construction
• Precision CNC machined factory-style quick connections with OE spring clips

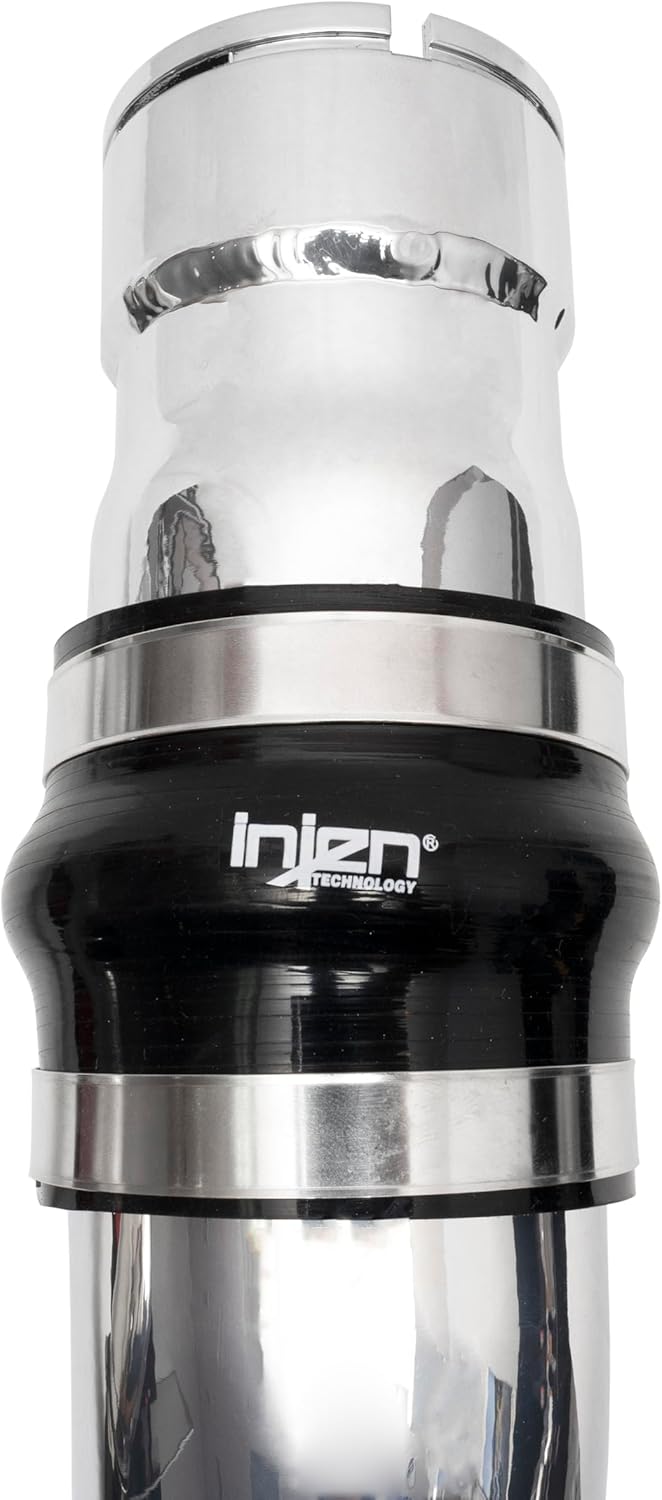

• Beaded tube ends to prevent coupler separation
• Stainless steel band clamps with protective inner liner
• Automotive-grade reinforced silicone couplers included
• Unique Injen logo plate for refined styling
• Uses all factory mounting locations for direct fitment
• Works seamlessly with OE intercooler

Complete System Options:

This hot side pipe can be used as a standalone upgrade or paired with the Injen SES9004ICPC cold side charge pipe for maximum performance gains. The complete hot and cold side system is also available under part number SES9004ICP. For optimum results, Injen recommends pairing with their EVO9004 cold air intake system.

Available Finishes:

• Polished - SES9004ICPH
• Wrinkle Black - SES9004ICPHWB
• Wrinkle Red - SES9004ICPHWR

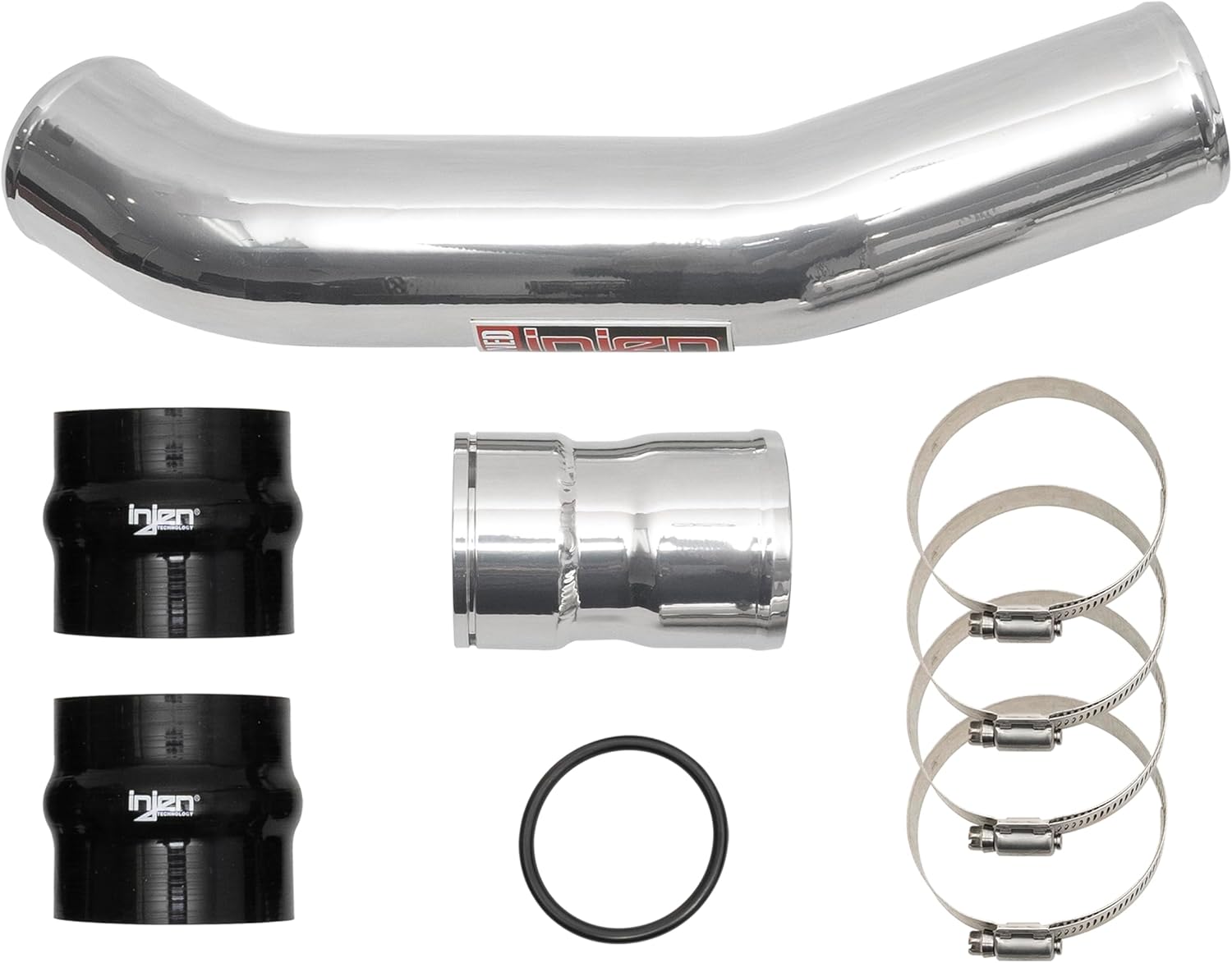

What's Included:

Complete hardware kit for hassle-free installation, including stainless steel band clamps, reinforced silicone couplers, and all necessary mounting hardware.

Made in Pomona, California, USA. Backed by Injen Technology's Limited Lifetime Warranty.

Important Note: This product is not CARB exempt and is not legal for sale in California or for use on vehicles registered with the California Department of Motor Vehicles.
