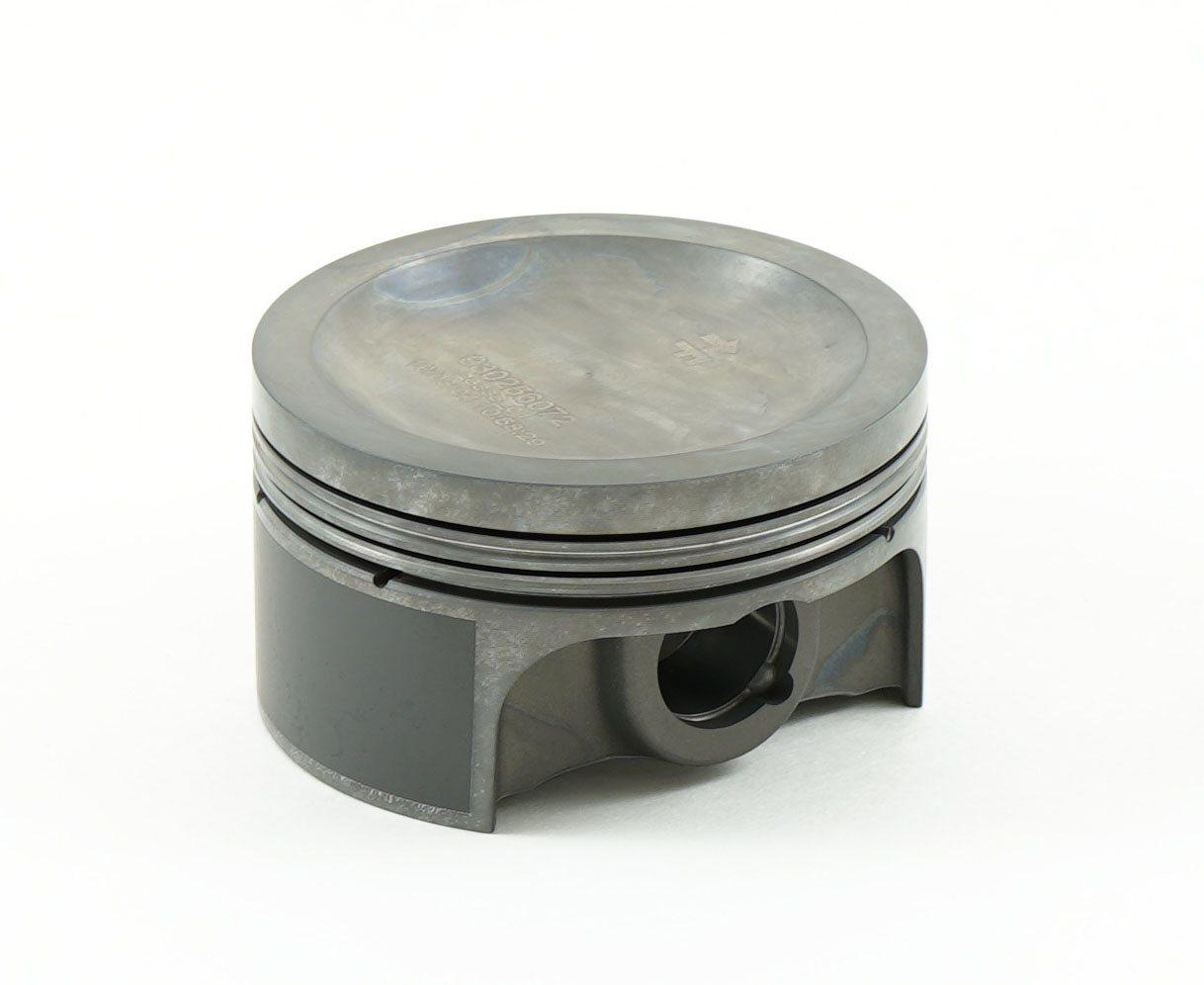

MAHLE 930256052-1 PowerPak Forged Piston Ford Modular 4.6L 2-Valve/4-Valve 3.552" Bore M142 Alloy

Manufacturer

Part Number

930256052-1
Black Friday Price

$101.86

Estimated ship date Saturday, December 05

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The MAHLE 930256052-1 is a single forged performance piston designed for the Ford Modular 4.6L engine in both 2-valve and 4-valve configurations. Part of MAHLE's renowned PowerPak lineup, this piston is precision-forged from M142 aluminum alloy — a proprietary MAHLE material engineered to withstand elevated temperatures and cylinder pressures found in high-performance and forced induction applications.

Key Specifications:

  • Displacement: 281 CID
  • Bore Diameter: 3.552"
  • Compression Distance (CD): 1.220"
  • Stroke: 3.543"
  • Rod Length: 5.930"
  • Wrist Pin Diameter: 0.866"
  • Combustion Chamber Volume: -16.0cc (dished)
  • Piston Weight: 356g
  • Compression Ratio: 9.4:1
  • Alloy: M142
  • Ring Pack: 1.0mm, 1.0mm, 2.0mm file-fit performance ring set
  • Sold As: Single piston (ea)

Performance Features:

  • Grafal® Anti-Friction Skirt Coating: MAHLE's proprietary graphite-impregnated compressible membrane coating reduces drag, minimizes scuffing, and dramatically reduces wear on cylinder bores — designed to last 100,000+ miles
  • Phosphate Dry Film Coating: Applied to pin bores and ring grooves to prevent microwelding and galling, especially critical during initial engine startup and break-in
  • Slipper Skirt Forging Design: Lightweight, low-drag profile superior in strength and weight to traditional full-round skirt designs
  • Precision-Machined Ring Grooves: Radially flat ring grooves machined on MAHLE's proprietary in-house equipment ensure optimal ring seal and long-term sealing performance

This piston is sold individually and is an ideal choice for street performance, strip, and mild forced induction builds on the Ford Modular 4.6L platform. Always verify bore size, stroke, and rod length against your specific engine build before ordering.

Products specifications

Prop 65

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Piston Ring Thickness

1.0mm, 1.0mm, 2.0mm

Piston Mass

356g

Piston Material

Forged, M142P

Pin Material

Steel

Clip Style

Round Wire

Pin Style

Floating
