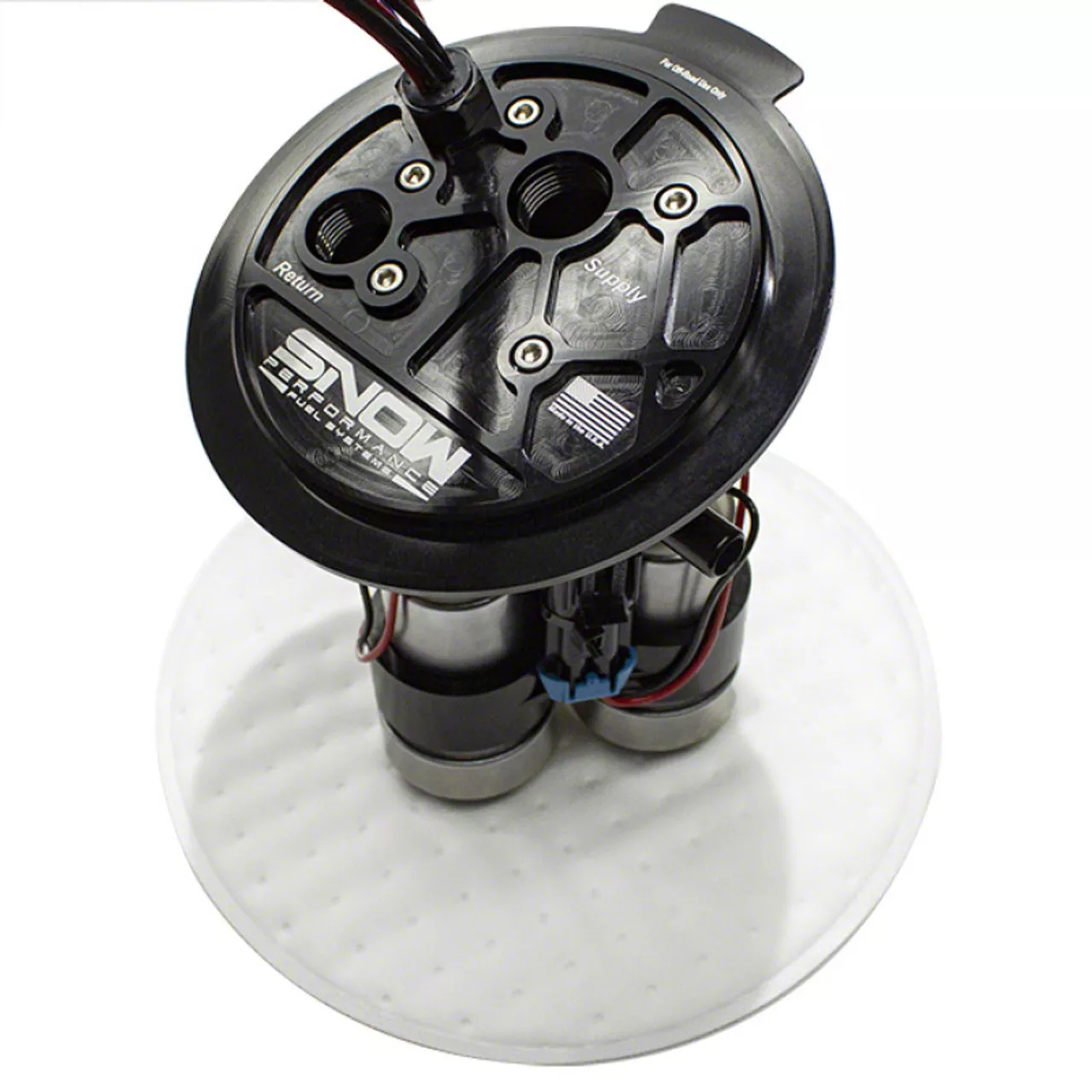

Snow Performance SNF-52400R Max Flow Triple Pump Fuel Hat for Hellcat Demon Redeye

The Snow Performance SNF-52400R Max Flow Fuel Hat is a premium triple-pump fuel delivery system engineered specifically for 2015 and newer Dodge Hellcat, Demon, and Redeye applications. This billet aluminum manifold features CNC machined passages, making it the highest-quality multi-pump fuel upgrade available. The Race Configuration includes three genuine TI Automotive (Walbro) 470 LPH pumps capable of supporting over 1,600 rear-wheel horsepower on E85 and up to 2,100 RWHP on gasoline.

Key Features:

• CNC machined from 6061 billet aluminum with black anodized finish for maximum durability and corrosion resistance
• Eliminates unreliable T-fittings, hoses, and clamps that can deteriorate over time
• Integrated pump sock merges all three pumps into one feed, preventing fuel starvation during performance driving
• 10-micron pre-filter feeds all pumps without requiring full submersion and mounts directly to pumps
• Female 10AN ORB feed and 8AN ORB return ports for secure connections
• Completely replaces factory fuel hat while retaining OE fuel level sending unit, EVAP system, and filler neck functionality
• Compatible with gasoline, ethanol, E85, E98, and any gasoline/ethanol blend

For street-driven applications, you can combine a smaller pump with larger pumps to reduce amp draw and heat generation during normal driving, then activate the larger pumps under boost for high-horsepower performance. This system is designed for return-style fuel system installations only. Installation typically requires approximately one hour.
