MAHLE 930217605-1 PowerPak Forged Piston LS 5.7L Flat Top -4.1cc 4032 Alloy

Manufacturer

Part Number

930217605-1
Black Friday Price

$96.24

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

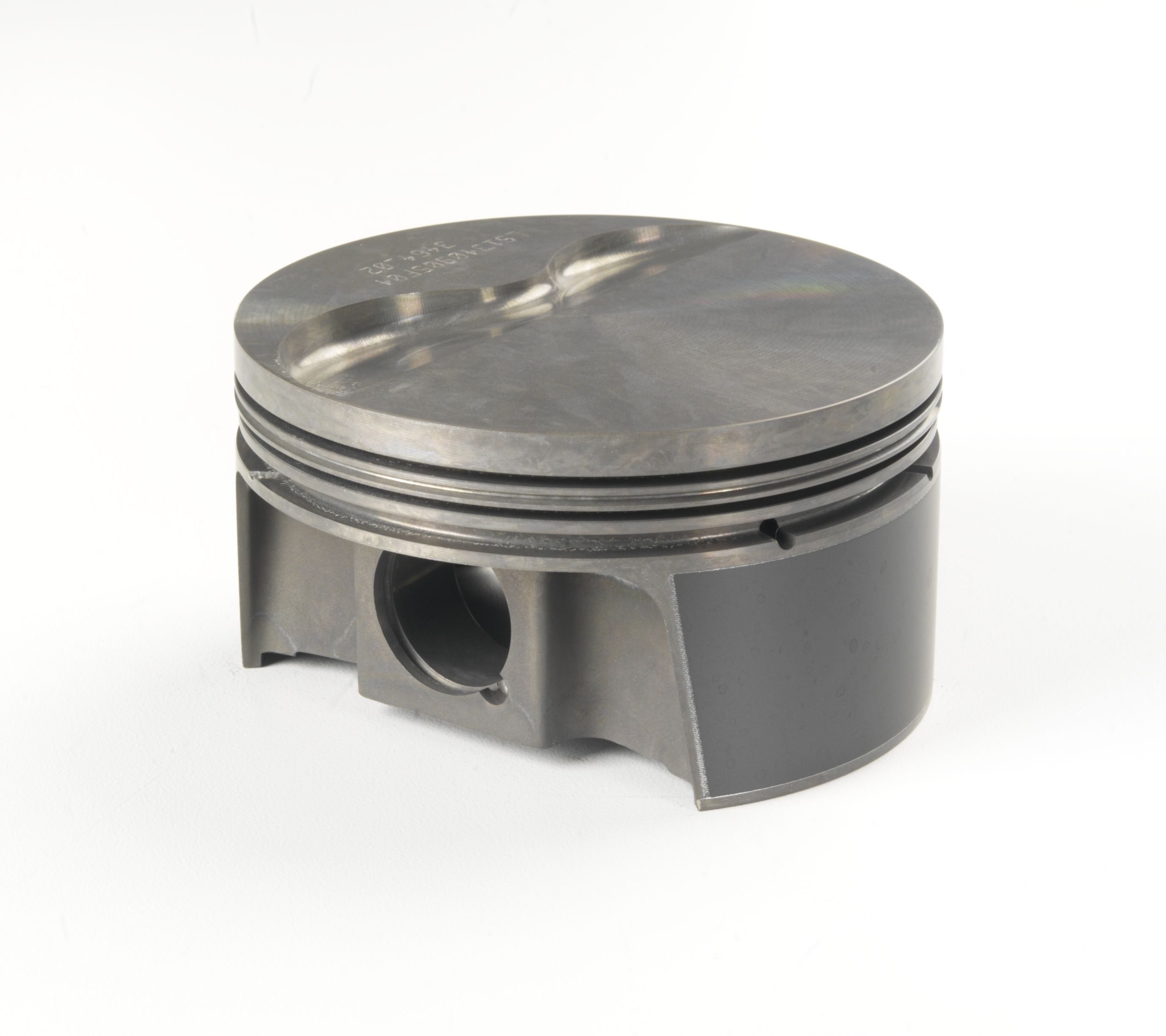

The MAHLE 930217605-1 is a single forged performance piston from the MAHLE Motorsport PowerPak lineup, designed for LS 5.7L engine builds using LS1/2/6-style cathedral port heads. Forged from 4032 aluminum alloy, this piston offers excellent temperature stability and allows for tighter piston-to-wall clearances compared to 2618 alloy, making it an ideal choice for high-performance street and sportsman class racing applications.

Key Specifications:

  • Bore Diameter: 3.905 in.
  • Compression Height: 1.340 in.
  • Stroke: 3.622 in.
  • Rod Length: 6.098 in.
  • Wrist Pin Diameter: 0.945 in.
  • Dish Volume: -4.1cc (Flat Top / Dish)
  • Piston Weight: 410 g
  • Compression Ratio: 10.2:1 (calculated at zero deck with 0.040 in. gasket)
  • Alloy: 4032 Aluminum
  • Displacement: 347 CID

Features & Coatings:

  • GRAFAL® Skirt Coating: MAHLE's proprietary anti-friction coating reduces drag, scuffing, friction, cylinder bore wear, and piston noise
  • Phosphate Coating: Applied to ring grooves and pin bores to prevent micro-welding and pin galling during initial startup and break-in
  • Slipper Skirt Forging: Lightweight, high-strength design superior to traditional full-round forgings
  • Hand-deburred for precision fit and finish
  • Compatible with LS1/2/6 style cathedral port heads

What's Included:

  • 1x Single forged piston (sold individually — ea)

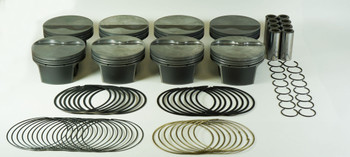

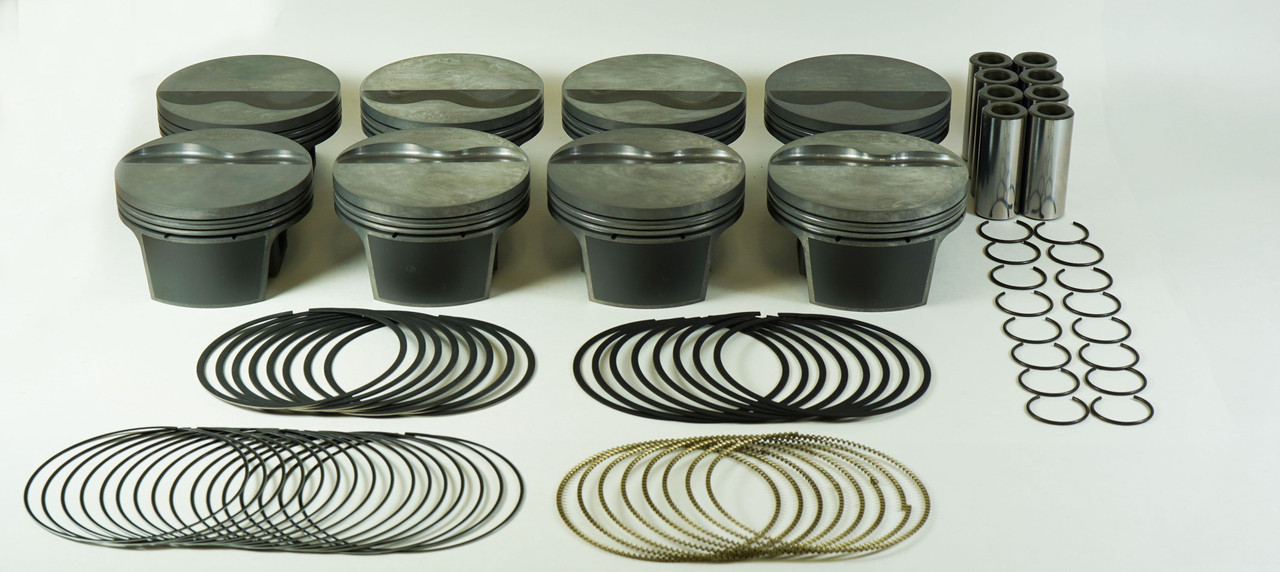

  • File-fit 1.0mm / 1.0mm / 2.0mm performance ring set included when purchased as part of a kit

This piston is part of MAHLE's LS 5.7L Flat Top & Dish PowerPak series, engineered for builders seeking proven reliability and performance in LS platform builds. Note: This listing is for a single piston. Order the quantity needed for your build.

Products specifications

Prop 65

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Pin Style

Floating

Pin Material

Steel

Piston Mass

410g

Piston Material

Forged, 4032

Piston Ring Thickness

1.0mm, 1.0mm, 2.0mm

Clip Style

Round Wire
