MAHLE 197859522-1 Forged Piston BMW S85 B50 5.0L V10 92.00mm Bore

Manufacturer

Part Number

197859522-1
Black Friday Price

$176.64

Estimated ship date Saturday, December 05

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

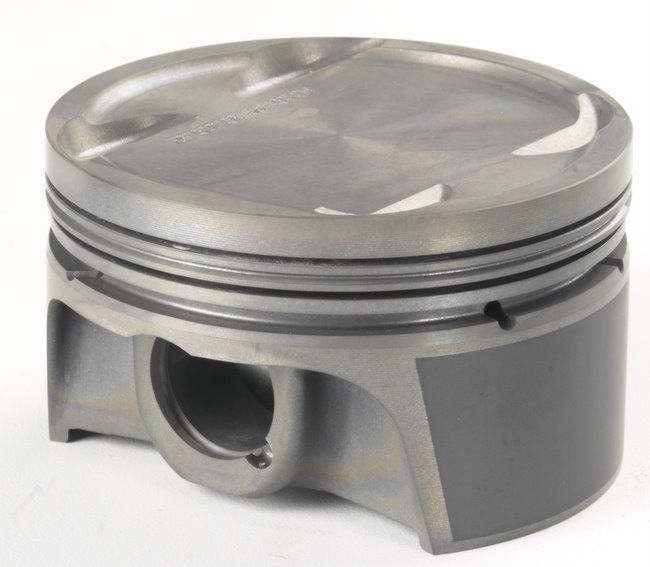

The MAHLE 197859522-1 is a single forged performance piston engineered specifically for the BMW S85 B50 5.0L V10 engine. MAHLE Motorsport supplied the original oil-cooled forged aluminum pistons for the S85 platform, making this a direct-lineage replacement piston built to the same exacting standards as the factory component. This listing is for one (1) individual piston.

Piston Specifications:

  • Bore Diameter: 92.00mm
  • Compression Height (CH): 27.3mm
  • Stroke: 75.2mm
  • Rod Length: 140.7mm
  • Pin Diameter: 21mm (floating pin)
  • Crown Volume: 2.1cc dome
  • Piston Mass: 366g
  • Compression Ratio: 10.1:1
  • Material: Forged 4032 aluminum alloy
  • Ring Pack: 1.2mm / 1.2mm / 2.5mm performance ring set
  • Replaces: MCP122051D01

Key Features:

  • Forged 4032 low-expansion aluminum alloy construction delivers high strength while allowing tighter piston-to-wall clearances for reduced noise and improved ring seal
  • Forced pin oiler design ensures continuous wrist pin lubrication under demanding high-RPM conditions
  • CNC precision-machined pin bores for accurate pin fit and consistent tolerances
  • MAHLE Grafal proprietary anti-friction coating applied to the piston skirt reduces friction and wear during operation and break-in
  • Phosphate dry lubricant performance coating protects against ring micro-welding and pin galling during initial startup
  • Performance ring set included — 1.2mm, 1.2mm, and 2.5mm rings with steel nitrided top ring and round wire locks
  • Piston style: Dome with two valve reliefs

MAHLE Motorsport was established in 2000 to bring Formula 1–derived piston technology to performance and racing applications worldwide. The S85 B50 V10 was originally equipped with MAHLE oil-cooled forged pistons from the factory, and this part continues that legacy with the same precision manufacturing. Note: CR calculated at 0.28mm below deck with 0.59mm head gasket thickness.

Products specifications

Prop 65

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Clip Style

Round Wire

Pin Material

Steel

Pin Style

Floating

Piston Mass

366g

Piston Material

Forged, 4032

Piston Ring Thickness

1.2mm, 1.2mm, 2.5mm
