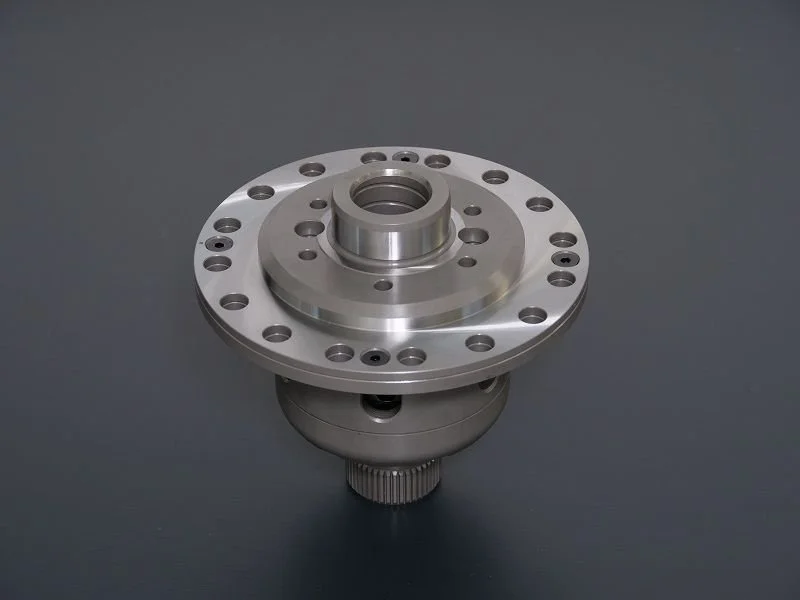

Cusco LSD-1C7-VT15 Type-RS Spec-F 1.5 Way Limited Slip Differential Front

The Cusco LSD-1C7-VT15 is a Type-RS Spec-F 1.5 Way limited slip differential designed for front axle applications. This high-performance LSD provides the perfect balance between an open differential and a fully locked unit, delivering improved traction and cornering performance for AWD and FWD vehicles.

Type-RS Technology:

The Type-RS model utilizes a coil spring design that applies activation pressure in the same direction as the initial torque, enabling smoother and quicker clutch plate engagement. The initial torque is set approximately 50-70% lower than conventional cone plate designs, reducing driving resistance while providing responsive and smooth operation. The RS springs sit inside the pressure rings and apply constant pressure against the clutch plates, resulting in minimal loss of initial torque over time.

Spec-F 1.5 Way Configuration:

The 1.5 Way setting is ideal for vehicles with understeer tendencies, activating during both acceleration and deceleration (such as in corners). Initial cam angle settings are 35°/20° with adjustable capability to 45°/20°. Initial torque range is 2-4 kgfm. This configuration is particularly suited for front wheel drive cars and AWD front axles.

Key Features:

• Type-RS clutch-type limited slip differential with 6 clutch discs per side
• Low initial torque design for smooth non-activated turning
• Coil spring pressure system for gentle and stable operation
• Adjustable cam angle for customization without additional parts
• Cusco Oil Through System for improved lubrication and durability
• Chrome molybdenum steel construction with radial groove technology
• Reduces power loss and improves lap times

Professional installation and differential fluid service recommended. The Spec-F variant features enhanced specifications over the standard Type-RS model, including optimized cam profiles and clutch pack configurations for competitive motorsport applications.
