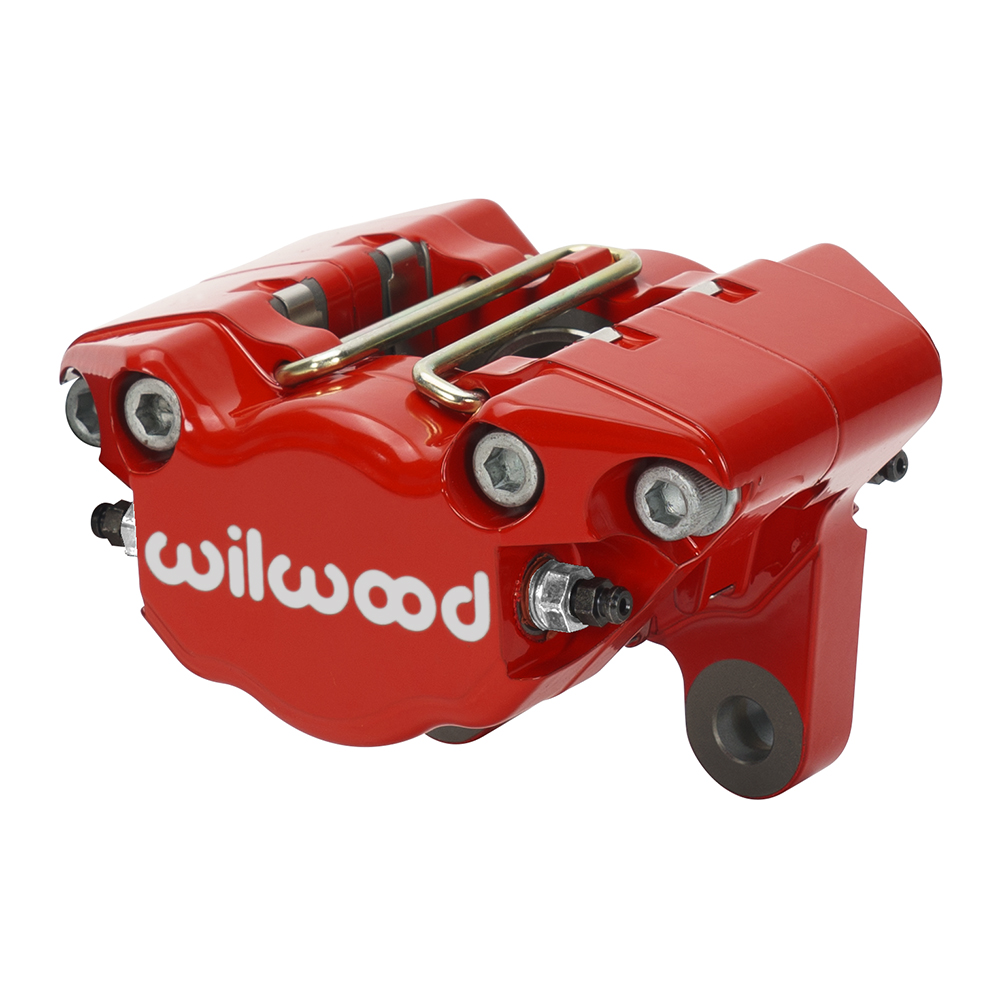

Wilwood 120-16070-RD DynaPro Single Billet Disc Brake Caliper Red

The Wilwood DynaPro Single-VW (DPS-VW) billet caliper is an advanced upgrade or direct replacement for applications previously using ATE OE 2-piston calipers, specifically designed for 1967-1978 Volkswagen Beetle and Karmann Ghia models. This next-generation caliper combines exceptional strength with lightweight construction to deliver one of the finest OE replacement calipers available.

Advanced Engineering and Construction:

• Fully CNC machined from premium grade alloy billet for superior strength and precision
• FEA-generated body design with fortified transitions between piston housings and bridges
• Reinforced critical stress areas substantially increase resistance to deflection and body separation under load
• Reduced overall deflection and fluid volume displacement translate to increased clamping efficiency with less pedal travel

High-Performance Piston Design:

• Features 1.62-inch (41mm) bore heavy wall stainless steel pistons
• Stainless steel construction resists corrosion and slows heat transfer from brake pads
• Heavy wall sectional thickness improves pedal firmness and clamping efficiency
• Eliminates piston backside deflection for consistent brake feel

Innovative SRS Bridge Plate System:

• Replaceable stainless steel SRS bridge plates eliminate bridge wear caused by pad gouging
• Spring-loading action eliminates pad rattle for quiet operation
• Dampens vibration harmonics that contribute to brake squeal during engagement

Versatile Mounting Options:

• Internal fluid passages optimize brake fluid flow
• Four-corner bleed screws allow mounting in any front, rear, left, or right side position
• Maximum installation flexibility for various brake system configurations

This premium red-finished caliper represents Wilwood's commitment to performance engineering, offering VW enthusiasts a lightweight, high-strength braking solution that significantly outperforms original equipment calipers.
