Skyjacker Suspension F11802KS-X 8.5-Inch 4-Link Suspension Lift Kit with ADX 2.0 Remote Reservoir Shocks

(2011-2016 Ford F-250 Super Duty)

Manufacturer

Part Number

F11802KS-X
Black Friday Price

$3,792.71

Estimated ship date Friday, November 27

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Skyjacker F11802KS-X provides an impressive 8.5-inch suspension lift, transforming your Ford Super Duty's off-road capability with a complete 4-link conversion system. This comprehensive kit replaces factory radius arms with engineered upper and lower adjustable control arms, dramatically improving articulation and handling over challenging terrain.

Advanced 4-Link Conversion System:

  • Formed from 2-inch OD x 0.250 wall DOM tubing, both pairs of control arms are adjustable Flex Links that allow proper caster settings to improve handling
  • Flex Links have a forked clevis end at the lower axle mount and 1-1/4" forged rod end with Rubber Encased bushing at the upper bracket mount
  • Heavy-duty track bar relocation bracket captures the front crossmember on both sides to prevent movement and keep the axle centered
  • Lowering brackets realign the front sway bar for maximum sway control, and drop spacers reposition the front bump stops

Premium ADX 2.0 Remote Reservoir Shocks:

  • Race-inspired full-displaced Custom Valve Tuned system delivers consistent dampening, high-end performance, cooler running, more control, and improved driving comfort
  • Impact Extruded CNC Machined T6061-T6 Aluminum Monotube with 53.5mm body OD and 46mm ID bore size
  • Separate remote reservoir increases oil capacity and allows a longer piston rod for more stroke travel in consistent viscosity oil
  • High Pressure Nitrogen Gas and IFP Technology with Teflon Banded Piston for smooth reaction
  • Unique clear hard anodized polished aluminum finish

Superior Softride Coil Springs:

  • Skyjacker's legendary Softride technology achieves maximum wheel travel and ride quality while extending coil spring life, with Variable Rate Coil Springs specifically engineered for Super Duty 4WD Gas models
  • Matte black powder coat finish provides corrosion resistance and aggressive appearance

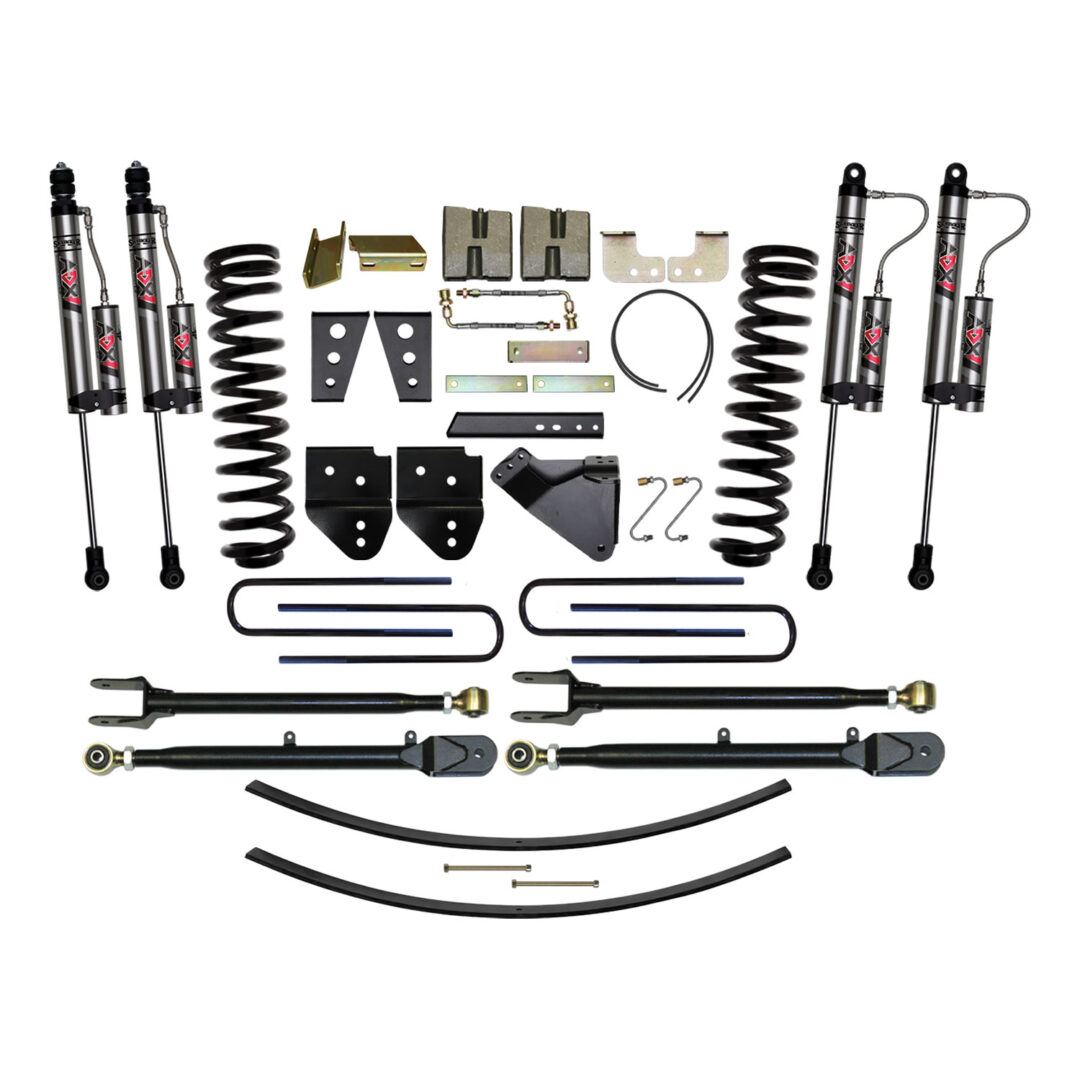

Complete Kit Includes:

  • Coil Springs, Track Bar Bracket, Sway Bar Brackets, Brakeline Brackets, Radius Arm Brackets, 4-Link Arms, Rear Blocks, Add-A-Leafs, U-bolts, and hardware
  • Front and rear ADX 2.0 remote reservoir shocks
  • All necessary mounting hardware for complete installation

This kit allows for tire sizes up to 39 inches and is designed for serious off-road enthusiasts who demand premium performance. Professional installation recommended with approximately 5 hours installation time. Note: Does Not Fit Models With Diesel Engine.

Products specifications

Fits

2011-2016 Ford F-250 Super Duty

Prop 65

Yes

Lift/Drop Height

8.5 in.
