Skyjacker Suspension F114024K-X 4 Inch Suspension Lift Kit with 4-Link Conversion and ADX 2.0 Remote Reservoir Shocks

The Skyjacker Suspension F114024K-X is a complete 4-inch suspension lift kit engineered for 2011-2016 Ford F-250 Super Duty 4WD gas models. This comprehensive system transforms your truck's capability with increased ground clearance, improved suspension geometry, and premium performance damping.

ADX 2.0 Remote Reservoir Monotube Shocks:

Equipped with Skyjacker's flagship ADX 2.0 Adventure Series shocks featuring impact-extruded CNC-machined T6061-T6 aluminum monotube construction. These premium shocks deliver consistent dampening, cooler operation, and superior control through their off-road race-inspired full-displaced valve system. The large 46mm bore size with Teflon-banded pistons provides smooth reactions across all terrains, while the separate remote reservoir increases oil capacity for extended performance and fade resistance.

4-Link Conversion System:

Converts factory radius arms to a tubular 4-link control arm setup, optimizing suspension geometry for improved handling, reduced axle wrap, and more controlled articulation. This upgrade provides better ride quality and stability compared to stock radius arm configurations.

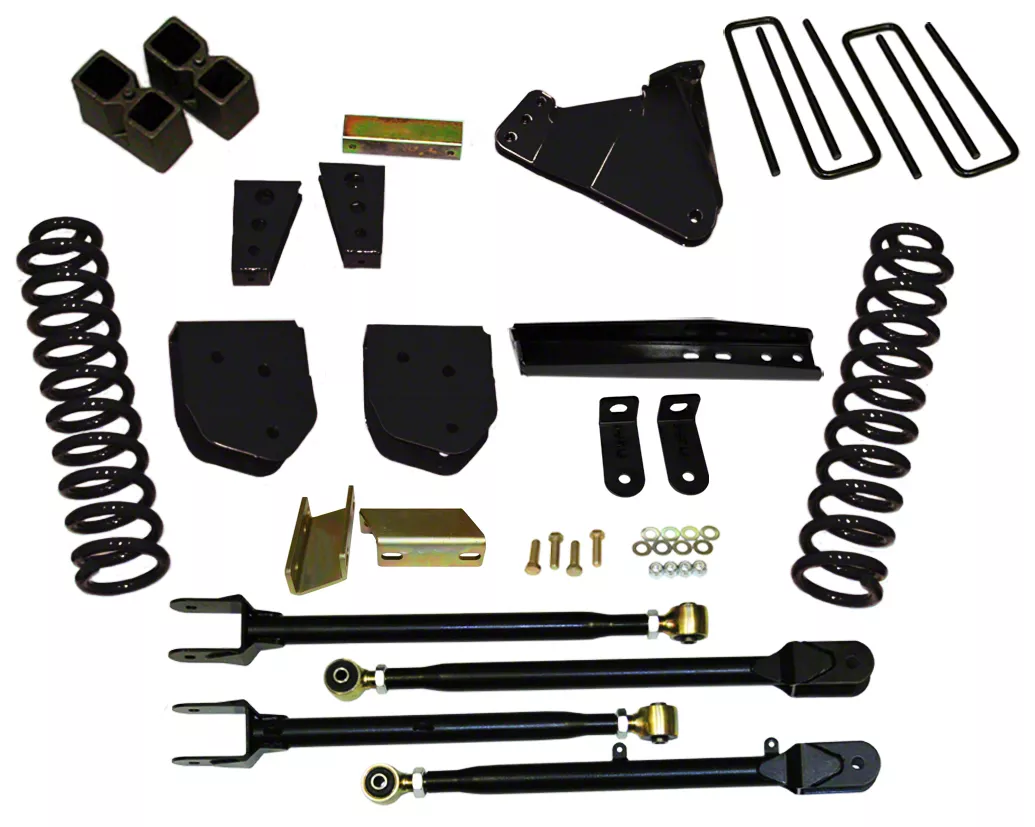

Complete Lift Kit Includes:

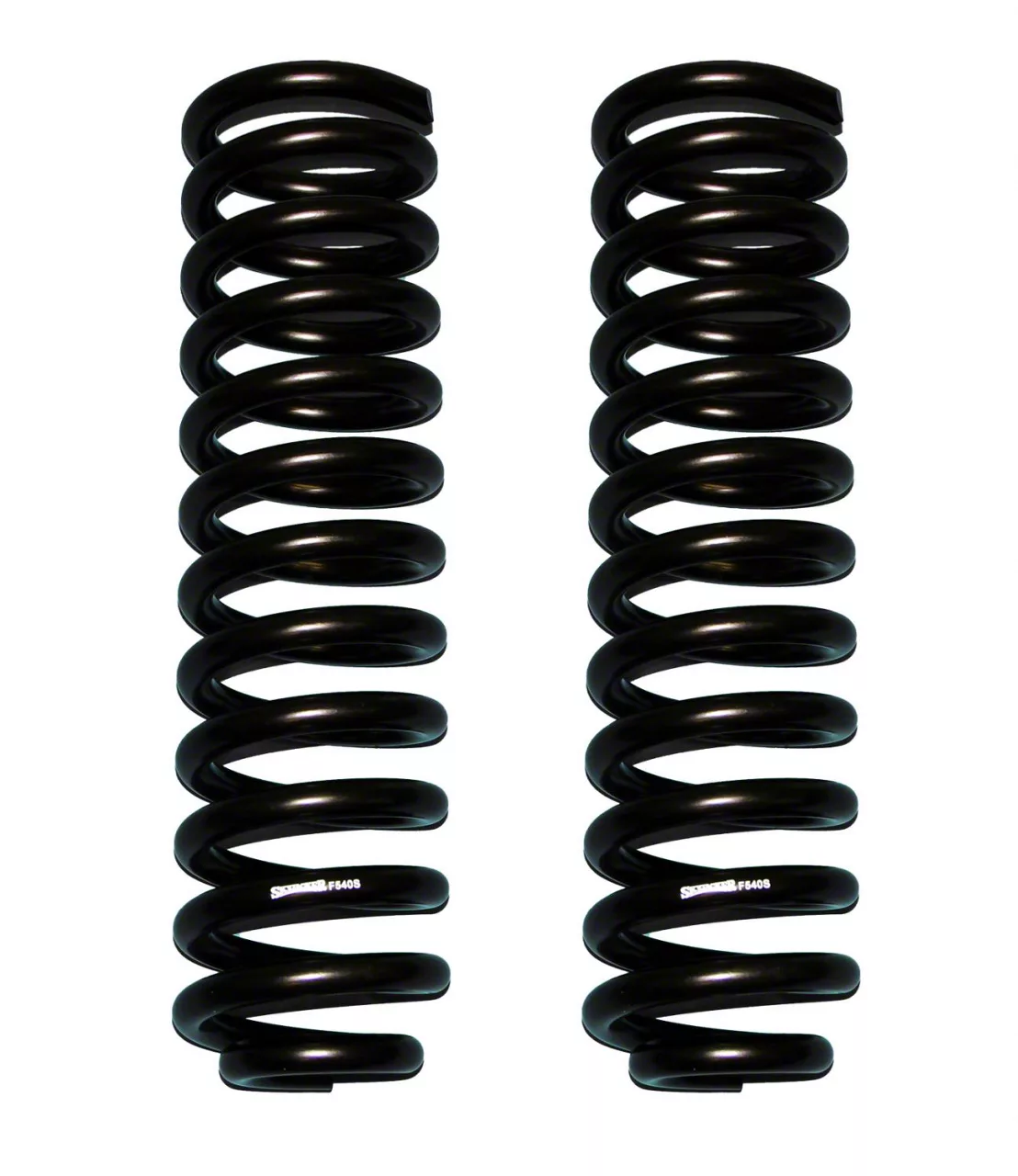

• Gas-specific coil springs for proper lift height and load support

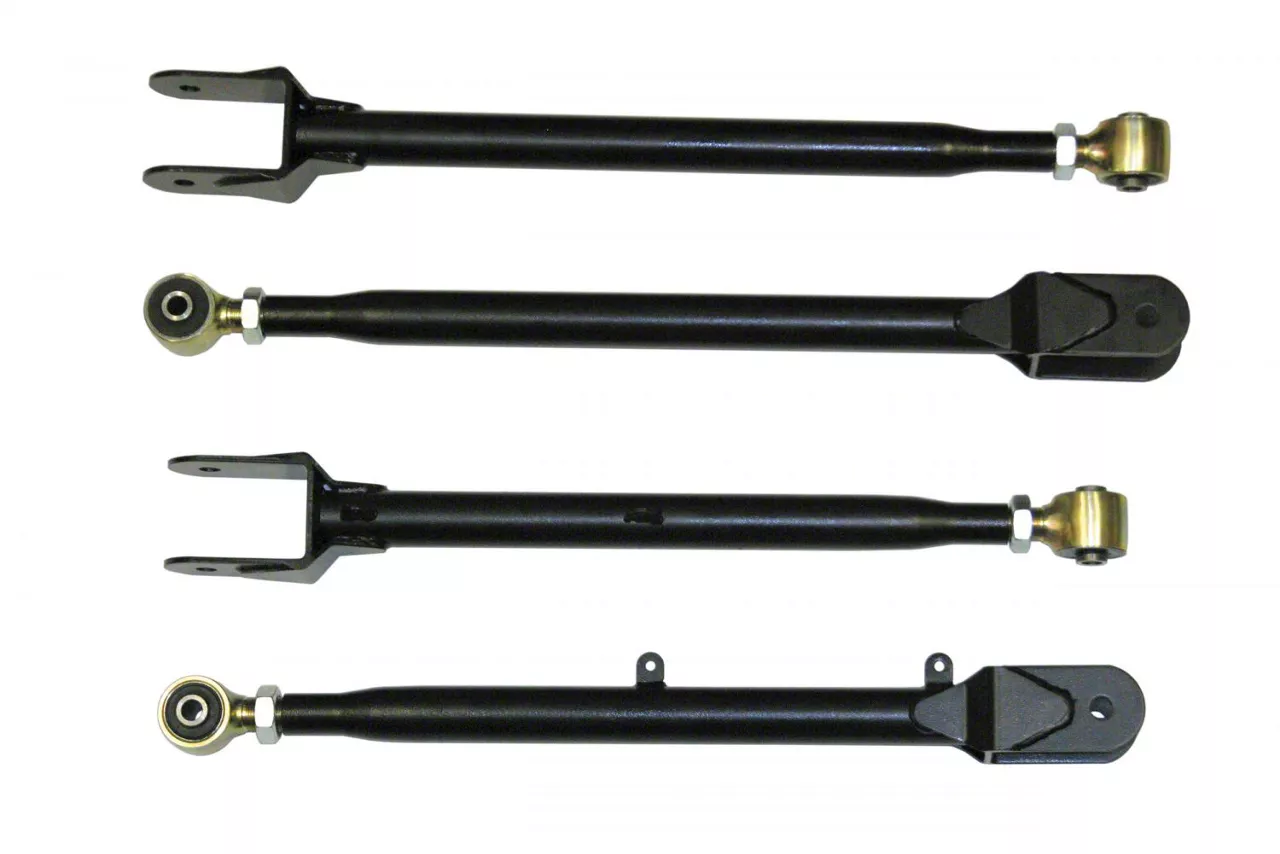

• 4-link control arms with conversion brackets for enhanced suspension geometry
• Four ADX 2.0 remote reservoir aluminum monotube shocks with mounting hardware
• Forged drop pitman arm for proper steering geometry correction
• Track bar bracket to maintain centered axle alignment
• Sway bar relocation components for maintained stability
• Brake line brackets and extensions for safe installation
• Rear lift blocks and U-bolts for matching rear lift height
• All necessary mounting hardware and detailed installation instructions

This kit provides clearance for larger tires while maintaining factory ride quality and on-road comfort. The ADX 2.0 shocks feature high-pressure nitrogen gas charging, IFP technology, and custom valve tuning specific to your vehicle for optimal performance. Professional installation recommended.
