QA1 Precision Products B6250K Bushing Kit
(2) Two-Piece Bushings
Order (1) Per Shock
QA1 has a variety of shock mount
accessories to fit your needs.
QA1 T-Bar Kits
QA1?s T-Bar Kits are designed to convert
loop type QA1 adjustable shocks to T-bar
mounts. Loop must be utilizing QA1 3/4?
I.D. bushing.
QA1 Lower Shock Bolt
Kit
Use with the following part numbers to eliminate or minimize
vehicle modifications: TD403,
TS403, TR403,
TD504, TS504,
TD703, TS703,
TD801, TS801,
TD802, TS802,
TD901, TS901,
TD902, TS902.
Each of these shocks, except for the TD901 and TS901, requires a
bushing (part #9032-102) to use the Lower Shock Bolt Kit.
QA1 One-Piece
Bushings
QA1 offers a one-piece bushing for your
suspension component needs.
QA1 Bushing Kit
QA1 offers two bushing kits for our drag
racing, street performance and street rod shocks.
- Part #B6031K
This kit consists of (2) two-piece urethane bushings, (2) 1/2?
sleeves, and (2) 5/8? sleeves to fit on a Proma Star, Ultra Ride,
Aluma Matic or Pro Coil System shock. Order (1) per shock.

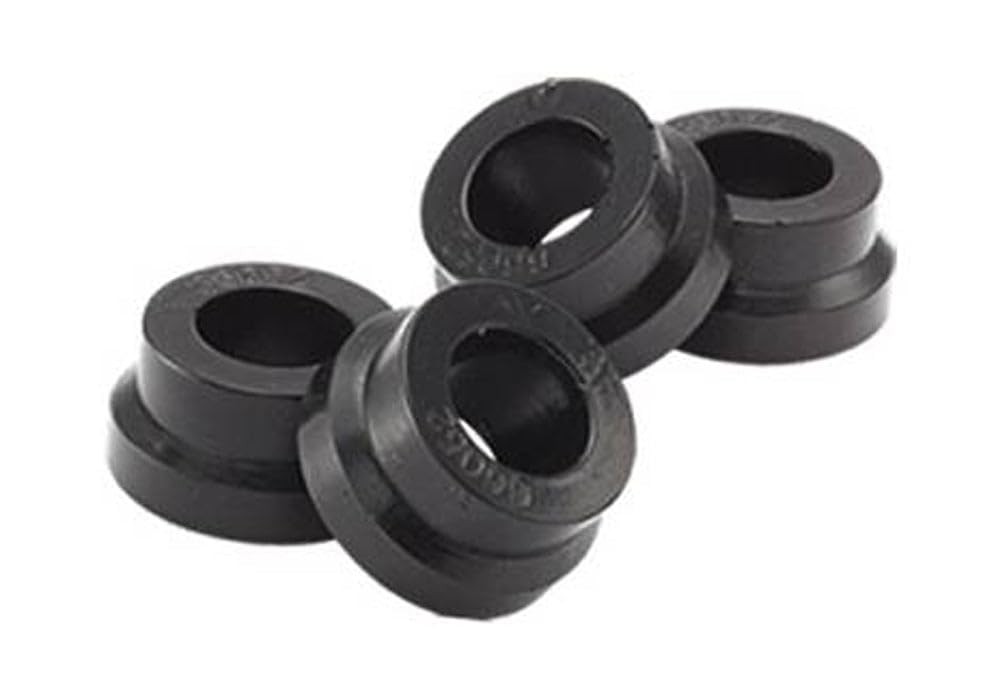

- Part #B6250K
This bushing kit includes (2) two-piece bushings. For use with
Streeters shocks. Order (1) per shock.
Complete Adjustable Shock Mount Kit
QA1 has a complete adjustable shock mount
kit available that makes converting from one shock length to
another a snap! For all QA1 drag racing,
street performance and street rod adjustable shocks.
QA1 Bearing
Kits
QA1 offers bearing kits with a variety of
options, including steel or Nylon/PTFE
race and different inner and outer diameters and width.
Stud Top Bushing Kits
QA1 offers a Stud Top Bushing Kit with
shock mounting hardware for 5/8? and 7/8? openings. Fits
QA1 stud top shocks.
QA1 Bump Stops
QA1?s Bump Stops can help cushion your
suspension and prevent it from bottoming out. Part #BC02 can be shortened to desired length.
QA1 Aluminum Shock
Extensions
QA1?s Aluminum Shock Extensions can give
you a little more length if needed in your custom application. With
1 or 2 inch lengths and 9/16 or 1/2 inch thread sizes, you are sure
to find one that will fit your needs.
Note: For all Drag & Street aluminum eyelet shocks and for
some stud top shocks. For stud top shock compatibility, contact
QA1.
Sleeve Kits
QA1 offers a variety of sleeve kits to
meet your needs.
- SLV750 Sleeve Kit
This kit allows for variations in mounting stud sizes when
utilizing QA1 3/4? I.D. x 1 1/4? wide
bushings.
- SLV625 Sleeve Kit
This kit allows for variations in mounting stud sizes when
utilizing QA1 5/8? I.D. x 1 1/4? wide
poly bushings.
QA1 Mounting
Tabs
QA1 offers a quality line of tabs for
mounting shocks and other miscellaneous accessories. Mounting
brackets are sold in kit form, including (4) tabs, (2) bolts and
(2) nuts.
- Part #TB101GBK
Small tab: 1/2? mounting hole, boxed tubing; bottom of tab to
center of bolt is 1 1/4?.
- Part #TB102GBK
Large tab: 1/2? mounting hole, boxed tubing; bottom of tab to
center of bolt is 1 3/4?.
- Part #TB103GBK
Large tab: 1/2? mounting hole, 1 5/8? round tubing offset bracket;
bottom of tab to center of bolt is 1 3/4?.
