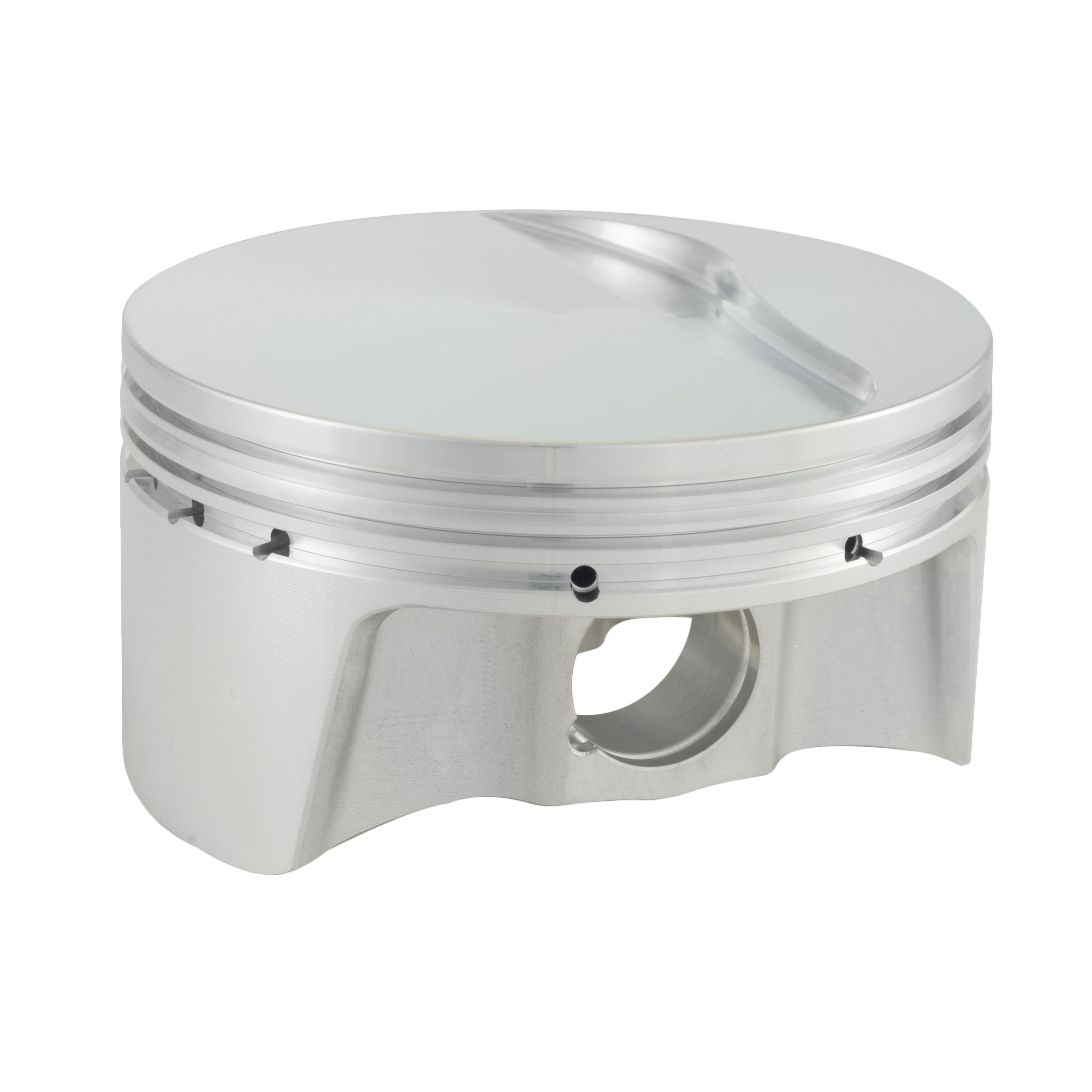

CP-Carrillo BP8002-061 Forged Piston & Ring Set Pontiac 4.181 Bore 11.6:1 Flat Top

Manufacturer

Part Number

BP8002-061
Sale Price

$908.46

Estimated ship date Friday, November 27

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The CP-Carrillo BP8002-061 is a high-performance forged piston and ring set engineered for Pontiac stroker engine builds. Designed specifically to fit Pontiac factory cast iron and Edelbrock aluminum cylinder heads, this flat top piston set delivers excellent compression and durability for naturally aspirated performance applications.

Key Specifications:

  • Bore: 4.181 in.
  • Stroke: 4.250 in.
  • Rod Length: 6.800 in.
  • Compression Height (CH): 1.295 in.
  • Compression Ratio: 11.6:1 (with 72.0cc head chamber)
  • Dome Volume: -9.04cc Flat Top
  • Pin Diameter: 0.990 in.
  • Ring Widths: 1.5 x 1.5 x 3.0mm
  • 8 chromoly wrist pins
  • Pin locks
  • Premium piston ring set (1.5mm steel gas nitride top ring, 1.5mm Napier second ring, 3.0mm oil ring)

Features & Benefits:

  • Forged from 2618 aluminum alloy for superior strength and heat resistance
  • Proudly manufactured in the USA
  • Compatible with stock Pontiac cast iron and Edelbrock aluminum cylinder heads
  • Dual pin oilers provide increased lubrication to the wrist pin
  • Radiused valve reliefs for added clearance
  • Accumulator groove reduces ring flutter and improves combustion seal
  • Balanced within one gram for smooth, high-rpm operation
  • Piston spec sheet included with recommended piston-to-wall clearance

The CP-Carrillo BP8002-061 piston set is an ideal solution for builders looking to maximize displacement and compression in a Pontiac stroker combination. Each kit ships complete with rings, wrist pins, and locks — everything needed for a full piston installation.
