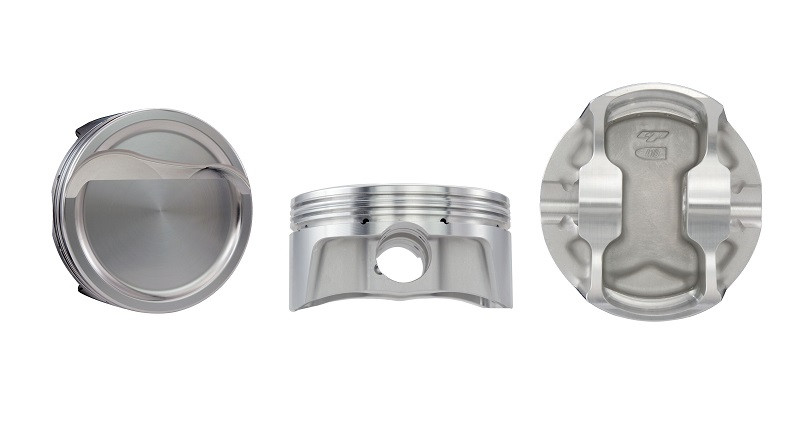

Carrillo BLS1007-030NA Bullet LS Forged Piston Bore Dish - 4.030 13.4cc

Manufacturer

Part Number

BLS1007-030NA
Sale Price

$889.80

Estimated ship date Friday, November 27

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The CP-Carrillo Bullet Series BLS1007-030NA is a high-performance forged piston engineered specifically for GM LS 15° cylinder heads, including 4.8L, 5.3L, 5.7L, 6.0L, and 6.2L engines. Manufactured in the USA from premium 2618 aluminum forgings, this piston is built to withstand the extreme demands of forced induction applications including nitrous oxide, superchargers, and turbochargers.

Key Specifications:

  • Bore Size: 4.030 inches
  • Stroke: 4.000 inches
  • Rod Length: 6.125 inches
  • Compression Height: 1.110 inches
  • Piston Volume: -13.4cc dish design
  • Compression Ratio: 10.30:1 (64cc chamber)
  • Wrist Pin: .927 x 2.250 inches with .180 wall thickness
  • Ring Pack: 1.5mm x 1.5mm x 3.0mm
  • Weight: 406 grams

Performance Features:

  • FEA-engineered forging for optimal strength-to-weight ratio
  • Special skirt design reduces piston noise and friction
  • Dual forced pin oilers for improved lubrication
  • Contact reduction and accumulator grooves
  • Forged side relief for valve clearance
  • Precision balanced to ±1 gram tolerance
  • Includes chromoly wrist pins with wire locks
  • Gas nitride steel top ring for durability
  • Napier second ring and 3-piece oil ring included

Backed by CP-Carrillo's ISO 9000-certified manufacturing process, this Bullet Series piston delivers professional-grade quality at a competitive price point. The -13.4cc dish design provides excellent combustion chamber characteristics for naturally aspirated and power-adder applications. Each piston undergoes rigorous quality control to ensure tight tolerances and consistent performance.
