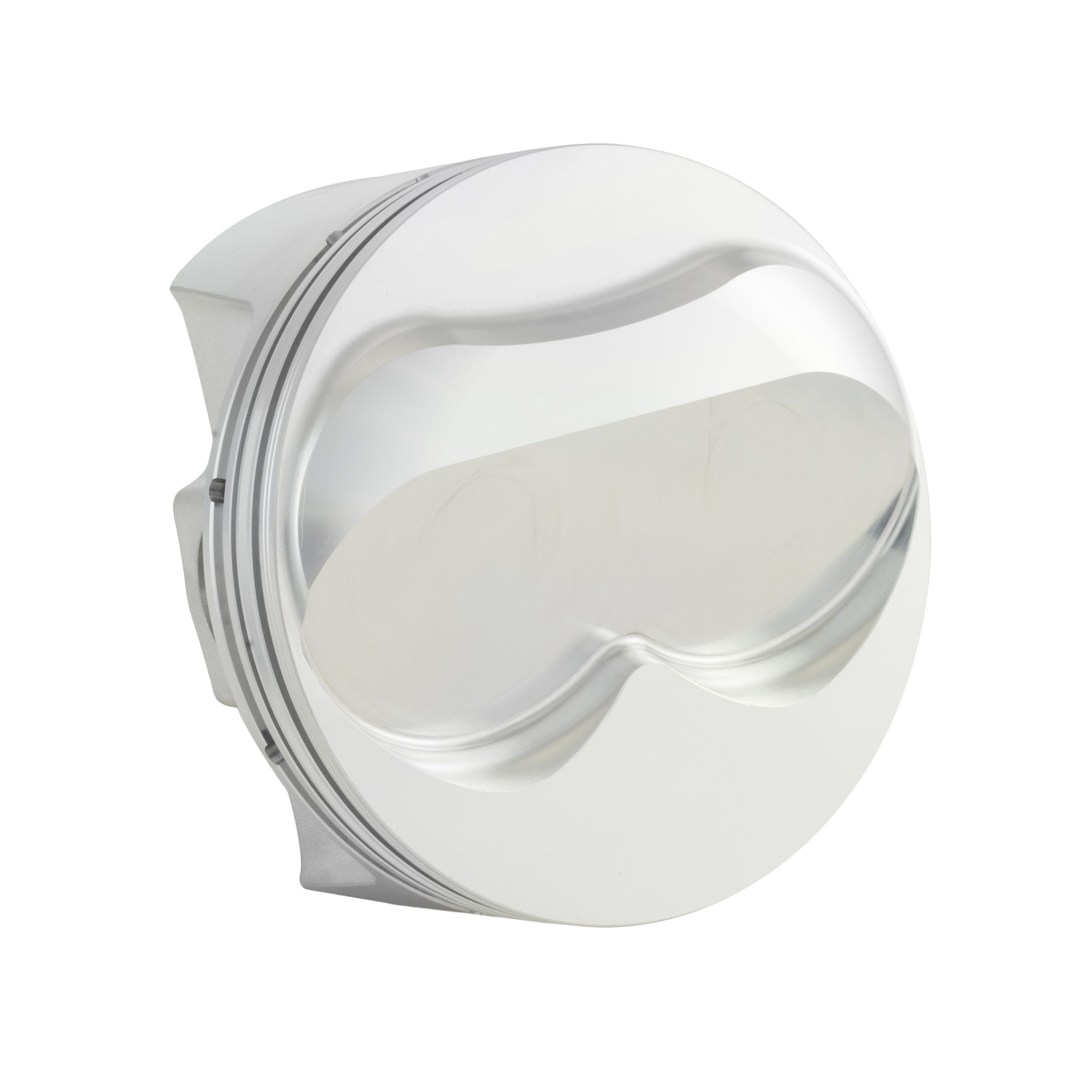

Carrillo BCR1220-040 Bullet Race Series Forged Piston 4.165 Bore SBC Brodix Spec

Manufacturer

Part Number

BCR1220-040
Sale Price

$997.90

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The CP-Carrillo BCR1220-040 is a high-performance forged piston engineered specifically for small block Chevy racing engines equipped with Brodix Spec cylinder heads. This piston is designed to meet the demanding requirements of dirt track racing series including USMTS, USRA, UMP, and Wissota competitions.

Key Specifications:

  • Bore: 4.165 inches (105.791mm)
  • Stroke: 3.875 inches
  • Rod Length: 6.000 inches
  • Compression Height: 1.062 inches
  • Piston Style: Dome with two valve reliefs
  • Dome Height: 0.275 inches
  • Piston Head Volume: -8.00cc dome
  • Wrist Pin Diameter: 0.927 inches x 2.500 inches length with 0.180 wall
  • Piston Ring Pack: 1.20mm x 1.20mm x 3.00mm

Construction and Features:

  • Manufactured in the USA from premium 2618 aluminum alloy forging for exceptional strength and durability
  • 8cc dome with 0.335 inch deep intake valve pockets for Brodix Spec head compatibility
  • Vertical gas ports for improved ring seal
  • Balanced to ±1 gram for smooth operation
  • Dual forced pin oilers for enhanced lubrication
  • Contact reduction grooves and accumulator groove
  • Forged side relief design
  • FEA-designed forging for optimized strength-to-weight ratio
  • Press-fit or floating wrist pin style with chromoly pins and wire locks included

Included Components:

  • Complete piston ring set (1.2mm gas nitride steel top ring, 1.2mm Napier second ring, 3.0mm oil ring)
  • Chromoly wrist pin with wire lock retainers
  • File-fit rings for precise gap adjustment

The Bullet Race Series represents CP-Carrillo's commitment to delivering professional-grade performance pistons at accessible pricing. Each piston undergoes rigorous quality control and is manufactured using the same exacting processes as CP's premium piston lines. ISO 9000 certified production ensures consistent quality and reliability for demanding racing applications.

This piston is sold individually and is also available in complete 8-piston sets. Designed for normally aspirated racing applications with Brodix Spec cylinder heads on small block Chevy 422 cubic inch builds.
