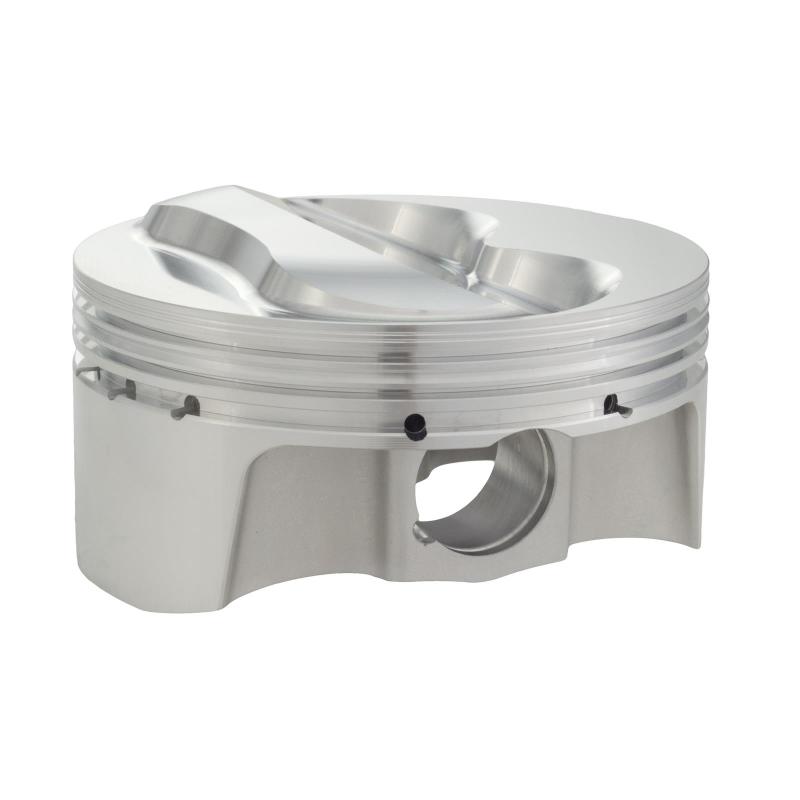

Carrillo BC1026-STD Bullet Series Forged Piston Set Small Block Chevy 377

Manufacturer

Part Number

BC1026-STD
Sale Price

$813.42

In Stock (6)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Carrillo BC1026-STD Bullet Series piston set is engineered specifically for small block Chevy 377 cubic inch engines equipped with 23-degree cylinder heads. These high-performance pistons feature a 4.000-inch bore with a 3.750-inch stroke configuration and are designed for 5.700-inch connecting rods, delivering exceptional performance for normally aspirated applications.

Key Specifications:

  • Bore: 4.000 inches
  • Stroke: 3.750 inches
  • Rod Length: 5.700 inches
  • Compression Height: 1.425 inches
  • Compression Ratio: 10.5:1
  • Dome/Dish: Flat top with -6.8cc volume
  • Weight: 427 grams per piston
  • Displacement: 377 cubic inches

Premium Construction Features:

  • Manufactured in the USA from forged 2618 aluminum alloy for superior strength and heat resistance
  • Symmetrical valve pockets designed to fit all 23-degree cylinder heads
  • Deep .310-inch intake valve pockets on both sides
  • Includes premium wrist pins: .927 x 2.500 inches with .150-inch wall thickness
  • Complete ring package: 1.5mm steel gas nitride top ring, 1.5mm Napier second ring, 3.0mm oil ring
  • 64mm ring groove spacing

The BC1026-STD is optimized for normally aspirated performance builds and provides excellent reliability in high-RPM applications. CP-Carrillo's Bullet Series pistons are precision-machined from race-proven forgings to deliver maximum strength-to-weight ratio while maintaining strict dimensional tolerances for proper ring seal and long engine life.
