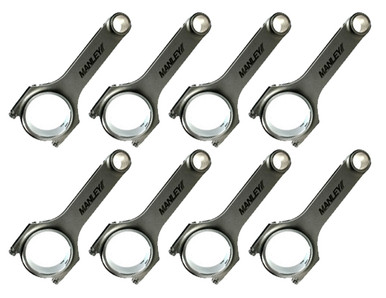

Manley 14087-8 H-Beam Connecting Rod Set for 6.1L Hemi

Manufacturer

Part Number

14087-8
Black Friday Price

$796.38

1 left at this price

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Manley 14087-8 H-Beam connecting rod set is engineered specifically for 2005-2010 Chrysler 6.1L Hemi engines, delivering exceptional strength and reliability for high-performance applications. These connecting rods are manufactured from forged 4340 steel alloy, featuring a compact uniform-grain structure that provides ultimate strength while maintaining strict quality standards.

Premium Construction and Features:

  • Forged from 4340 steel alloy with H-beam design for superior strength-to-weight ratio
  • Stock 6.240-inch center-to-center length maintains OEM specifications
  • Fully machined, stress relieved, and magnafluxed for quality assurance
  • Wrist pin and big end bores honed to +/-.0002 inch tolerance for precision fitment
  • Bronze alloy bushing in wrist pin bore for reduced friction and wear
  • Weight-matched to within 2 grams per set for balanced performance
  • Each rod weighs approximately 679 grams

Technical Specifications:

  • Big end bore diameter: 2.252 inches
  • Big end width: 0.933 inches
  • Pin end bore diameter: 25mm (0.984 inches) - stock 6.1L Hemi pin diameter
  • Pin end width: 1.000 inches
  • Connecting rod bolt diameter: 7/16 inch
  • Includes ARP 8740 alloy cap screw rod bolts

Performance Ratings:

  • Drag Race: Up to 750 horsepower with ARP 8740 bolts
  • Oval Track: Up to 725 horsepower with ARP 8740 bolts
  • Advertised RPM rating: 8,000 RPM

This set includes 8 connecting rods, providing everything needed for a complete engine build. The Manley H-Beam series rods are finished to exacting tolerances with careful attention to final hone size, thread detail, bend, and twist specifications. These connecting rods meet the same high-quality standards as Manley's renowned Sportsmaster and Pro Series rods, offering exceptional performance at an economical price point.

Products specifications

Advertised Horsepower Rating (hp)

800 hp

Advertised RPM Rating

8,000 rpm

Approximate Connecting Rod Weight (g)

679

Balanced

No

Big End Bore Diameter (in)

2.252 in.

Big End Width (in)

0.933 in.

Cap Retention Style

Cap screw

Clearanced for Stroker

No

Connecting Rod Beam Style

H-beam

Connecting Rod Bolt Brand

ARP

Connecting Rod Bolt Diameter

7/16 in.

Connecting Rod Bolt Head Style

12-point

Connecting Rod Bolt Material

8740 chromemoly steel

Connecting Rod Finish

Shot-peened

Connecting Rod Length Center To Center (in)

6.240 in.

Connecting Rod Material

Forged 4340 steel

Fastener Yield Strength (psi)

160,000 psi

Magnafluxed

Yes

Notes

Features stock 6.1 L Hemi pin diameter.

Pin End Bore Diameter

0.984 in.

Pin End Bore Diameter (in)

0.984 in.

Pin End Width (in)

1.000 in.

Quantity

Sold as a set of 8.

Remanufactured

No

Tool

Stroker Combinations

Weight Matched Set

Yes

Wrist Pin Style

Floating

Connecting Rod Type

H-Beam

Engine Type

ICE

Engine

6.1L Hemi

Length

Stock

Product Type

Engine Connecting Rod Set

Connecting Rod Series

H-Beam

Rod Bolt Material

ARP 8740

Rod Quantity

8

Pin End Width

1.000

Big End Bore

2.252

Center To Center Length

6.240

Connecting Rod Journal Diameter

2.126

Journal Size

2.126

Pin End Bore

0.9848

Average Gram Weight

665

Wrist Pin Diameter

0.984
