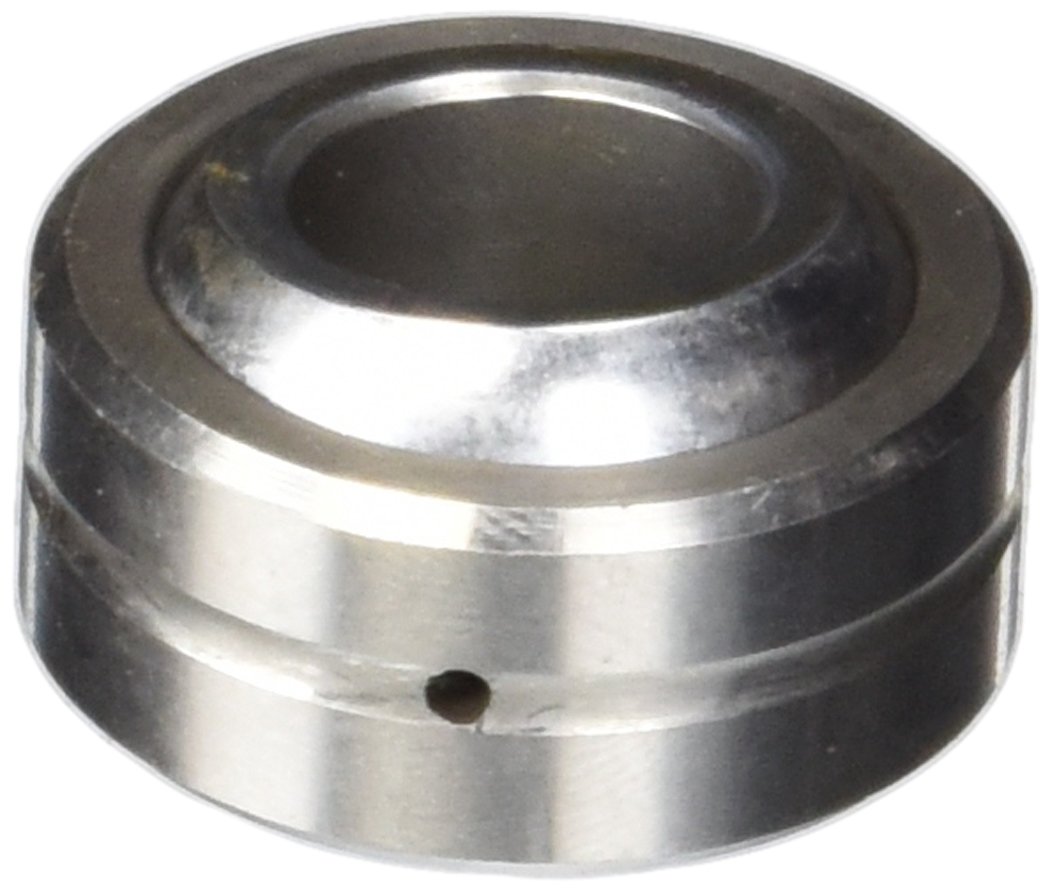

QA1 AIB10 AIB Series Spherical Bearing 5/8 in. Bore Chromoly Steel Metal-to-Metal

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

AIB10
6 reviews
Sale Price

$14.75

Estimated ship date Saturday, November 21

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 AIB10 is a high-performance AIB Series spherical bearing designed for demanding suspension and rod end applications. Built from heat-treated chromoly steel, this bearing delivers superior wear characteristics compared to traditional carbon steel alternatives, making it a dependable upgrade for performance and racing builds.

Key Features:

  • Inner Ball Diameter: 0.625 in. (5/8 in.) — 15.875 mm
  • Receiver Race Diameter: 1.313 in. (33.4 mm)
  • Rod End Ball Diameter: 1.125 in. (28.6 mm)
  • Inner Ball Width: 0.75 in. (19.05 mm)
  • Race Width: 0.562 in. (14.3 mm)
  • Misalignment Angle: 12 degrees
  • Ultimate Static Radial Load: 37,935 lbs.
  • Chamfer Reference: 0.03 in. (0.762 mm)

Construction Details:

  • Ball: 52100 bearing steel, heat treated, hard chrome plated, and precision ground for smooth operation
  • Race: Chromoly alloy steel, heat treated with ID protective coating for corrosion resistance
  • Liner: Metal-to-metal (no liner) — an optional PTFE self-lubricating liner is available in the AIB-T Series

Sold individually. The QA1 AIB10 spherical plain bearing is an excellent choice for suspension links, control arms, panhard bars, and other high-load pivoting applications where precision and durability are essential.

Products specifications

Approx Bearing Weight

0.17

B (+0.0015/-0.005)

0.625

Ball Dia Ref

1.125

Chamfer Reference

0.030 in.

D (+0.0000/-0.0007)

1.3125

Inner Ball Diameter (in.)

0.6250 in.

Inner Ball Width (in.)

0.750 in.

M Cham Ref

0.03

Misalign Angle

12

Notes

Alloy steel.

O Flat Dia Ref

0.839

Quantity

Sold individually.

Race Width (in.)

0.562 in.

Receiver Race Diameter (in.)

1.3125 in.

Rod End Ball Diameter (in.)

1.125 in.

Rod End Bearing Material

Steel

Rod End Misalign Angle (degrees)

12 degrees

T (+/-0.005)

0.562

ULT. Static Radial Load (lbs.)

37,935 lbs.

UTL Radical Static

37935

W (+0.000/-0.005)

0.75

Prop 65

WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
