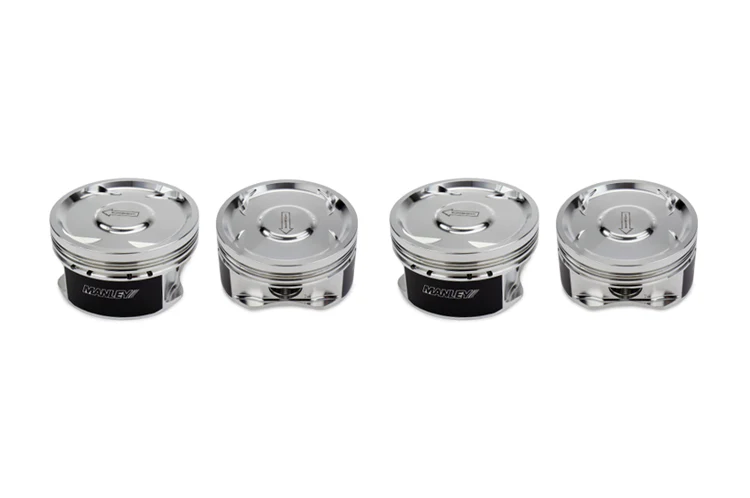

Manley 621005C-4 Platinum Series Forged Piston Set 100mm Bore Subaru EJ257 De-Stroked

(2004-2012 Subaru Impreza)

Manufacturer

Part Number

621005C-4
Black Friday Price

$741.18

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

These Platinum Series pistons are forged from 2618 high strength material with a lightweight design featuring an offset wrist pin for quiet start-ups.

Key Features:

  • 2618 high strength forged alloy construction
  • Moly coated skirts for reduced friction and improved wear resistance
  • Pressure balance groove design
  • Offset wrist pin design for quiet start-ups
  • Dish design with -18cc volume
  • 438 grams per piston weight
  • Will accommodate +1mm valve sizes
  • 5.137" rod length specification

Complete Kit Includes:

  • Four forged pistons with rings
  • 2.500" x .180" wall premium chrome moly wrist pins
  • Premium steel top rings with Napier second ring
  • Higher tension oil rings for improved oil control
  • Round wire locks

Manley's proprietary multi-step top ring groove machining process ensures optimum control of the groove's size, geometry, flatness and finish, while precise pinhole machining results in exact compression distance and precise lock ring groove spacing. Recommended piston clearance is .003" for mildly boosted applications and .0035" for highly boosted applications, measured at .850" (79/83mm stroke) and 1.100" (75mm stroke) from the bottom of the oil ring.

Products specifications

Fits

2004-2012 Subaru Impreza

Bore

100mm (+.5mm)

Comp Distance

1.285"

Comp Ratio

8.5:1

Cylinder Head

51cc

Dome Volume

-18cc

Piston Type

Dish

Rod Length

5.141"mm

Stroke

75mm

Weight

438g

Piston Quantity

4

Bore Diameter

100.00

Make

SUBARU

Piston Head Type

Dish

Compression Height

1.285

Engine Type

ICE

Product Type

Engine Piston Kit

Piston Volume

-18.00

Piston Series

Platinum Series

Piston Sub-Series

Standard

Compression Ratio

8.50:1

Engine

2.5L EJ257 WRX STi

Bore Oversize

+0.50

Engine Stroke

75.00

Engine Stroke Type

2.35L De-Stroked

Title

Manley Piston Set, PIST-SUBARU 100mm/1.285 CD/DDISH
