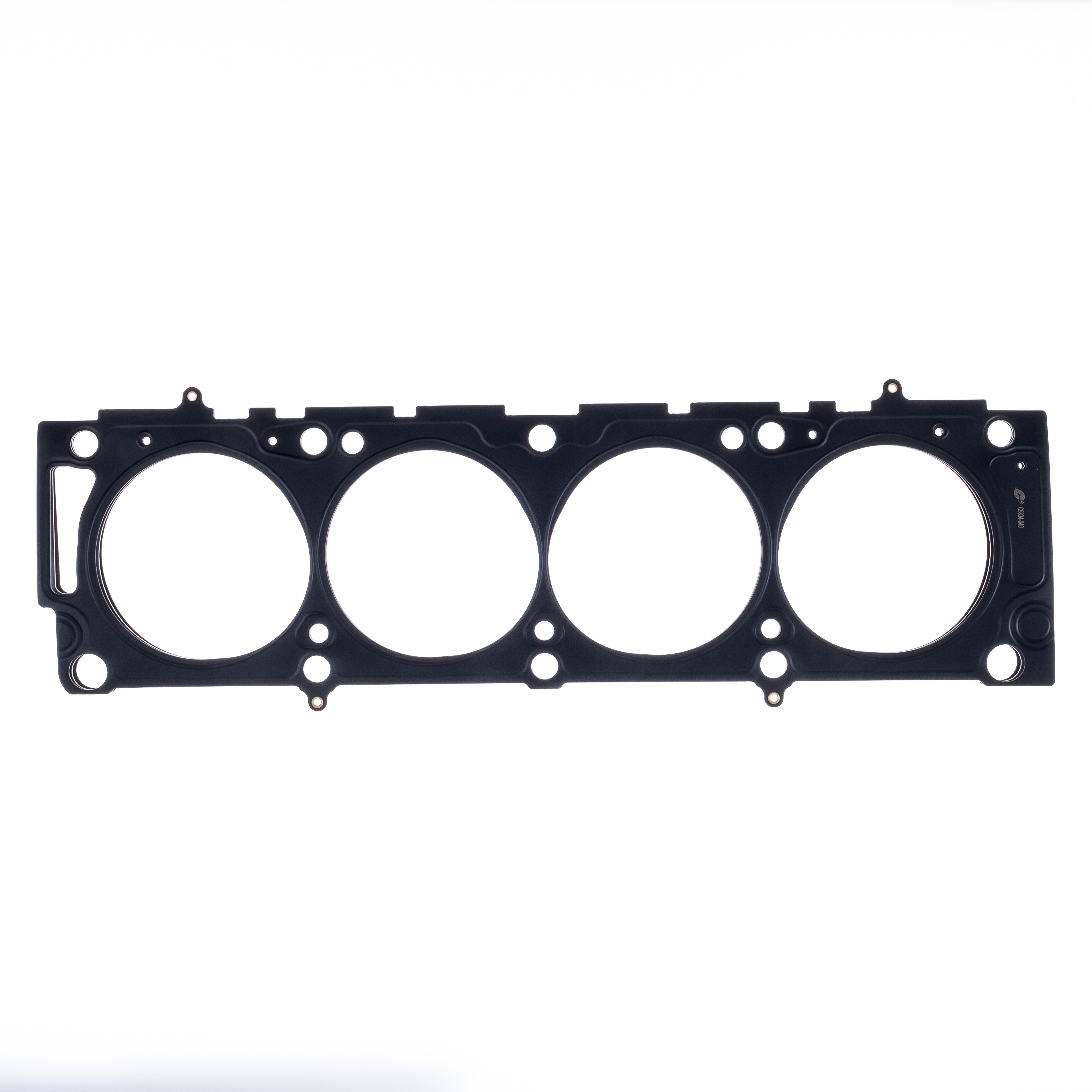

Cometic C5834-051 MLS Cylinder Head Gasket Ford FE Bore Thick - V8 4.165 051

The Cometic C5834-051 is a premium Multi-Layer Steel (MLS) cylinder head gasket engineered specifically for Ford FE V8 engines. This high-performance gasket features a 4.165-inch bore diameter with a compressed thickness of .051 inches, making it ideal for naturally-aspirated, boosted, or nitrous-fed engine applications. Note that this gasket does not fit the 427 SOHC Cammer engine.

Multi-Layer Steel Construction:

• Constructed from 3 layers of embossed stainless steel for exceptional strength and durability
• Outer layers feature Viton (FKM) rubber coating for superior sealing performance
• Heat resistant to 482°F (250°C) for demanding performance applications
• Load-controlled embossments provide optimal load distribution across the sealing area
• PTFE topcoat enhances resistance to fretting and improves cold sealing

Performance Benefits:

• Provides maximum sealing performance for high-output engines
• Requires less clamp load, resulting in reduced bore distortion
• Excellent rebound characteristics resist corrosion and withstand extreme cylinder pressures
• Ideal for both aluminum-to-aluminum and aluminum-to-cast iron block/head combinations
• Withstands shearing forces created by dissimilar materials
• No sealants or re-torque required—gasket installs dry

Specifications:

• Bore Size: 4.165 inches (105.79mm)
• Compressed Thickness: .051 inches
• Bore Shape: Valve pocketed
• Number of Layers: 3
• Material: Multi-Layer Stainless Steel with Viton coating
• UPC: 191070050825

Cometic gaskets are manufactured to order at their state-of-the-art facility in Concord, Ohio. Each gasket is precision-engineered to deliver professional-grade sealing performance for racing, high-performance street, and demanding automotive applications. Sold individually.
