MSD 8130 Pro Mag 44 Amp Magneto Generator CW Rotation Red Standard Cap Band Clamp

Manufacturer

Part Number

8130
Sale Price

$3,299.95

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

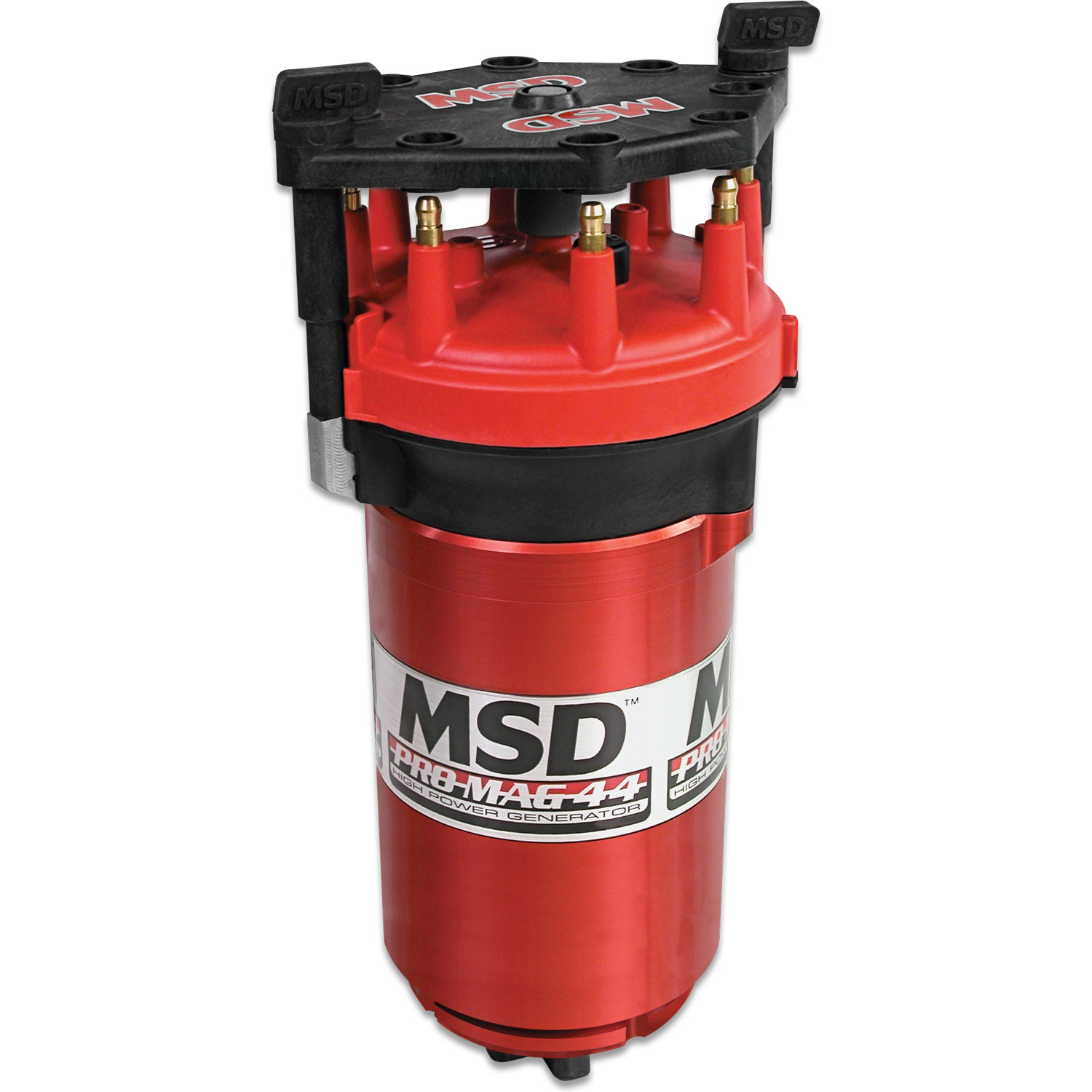

The MSD 8130 Pro Mag 44 Amp Generator is a clockwise-rotation magneto generator built for serious professional drag racing applications. This red-finish unit comes equipped with a cross drive, standard diameter cap, rotor, and wire retainer, and is secured to its drive housing via a stainless steel band clamp.

At the heart of the Pro Mag 44 is a proprietary combination of rare earth magnets and precision windings that generate an outstanding 44 amps of primary current — making it the preferred magneto for top fuel dragster and funny car teams. A magnetic pickup mounted in the lower base of the generator triggers eight precision paddles on the reluctor for accurate spark timing. Unlike traditional points-based systems, this pickup never requires adjustment or replacement. The entire assembly spins on a 0.500-inch shaft with sealed ball bearings for exceptional durability and long service life.

When the pickup fires, the signal is routed to the Electronic Points Box (sold separately), which controls spark duration and directs energy to the Pro Mag 44 coil. The coil steps up voltage and delivers it to the cap for precise distribution to the correct spark plugs, maximizing combustion efficiency at every cylinder.

Key Features:

  • 44 amps of primary current output — the highest in the Pro Mag lineup
  • Clockwise (CW) rotation
  • Proprietary rare earth magnet and winding combination for maximum energy output
  • Magnetic pickup triggers eight precision paddles on the reluctor — no points adjustment needed
  • 0.500-inch shaft with sealed ball bearings for long life
  • Standard diameter cap with cross drive and wire retainer included
  • Stainless steel band clamp mounting
  • Red finish
  • Racing use only — not legal for use on emissions-controlled or street vehicles

The MSD 8130 is sold as a generator only. A separate drive kit and Electronic Points Box are required for a complete ignition system. Compatible with MSD's full line of Cap-A-Dapts and Pro Mag accessories.

Products specifications

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Spark Energy

800 mJ per spark

Primary Current

44 Amp

RPM

12000
