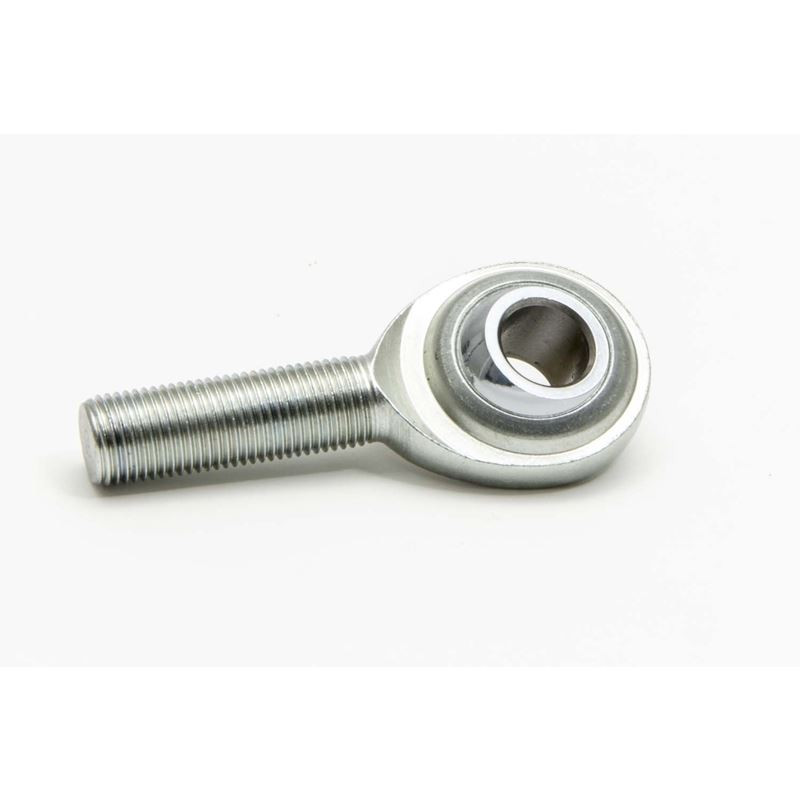

QA1 Precision Products CMR-7 C Series Rod End 7/16in Bore Male Thread

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

CMR-7
5 reviews
Sale Price

$6.10

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 CMR-7 is a C Series carbon steel male rod end designed for a range of commercial and performance applications, featuring traditional two-piece construction. The ball is constructed from 52100 bearing steel that is heat treated, precision ground, and hard chrome plated, while the body is made of carbon steel with a protective coating for corrosion resistance.

Key Specifications:

  • Bore diameter: 0.4375 inches (7/16 inch)
  • Thread size and pitch: 7/16 inch-20 right-hand (RH) male thread
  • Metal-to-metal design available in both metric and inch dimensions
  • Two-piece construction for reliable performance
  • Precision ground bearing surfaces for smooth operation

Features and Benefits:

  • Hard chrome plated ball for enhanced durability and wear resistance
  • Protective coating prevents corrosion in harsh environments
  • Available with optional grease fittings and stud configurations
  • Ideal for steering linkages, suspension components, and industrial applications
  • Economical yet durable solution for commercial use

This rod end is commonly used in automotive steering and suspension systems, custom fabrication projects, racing applications, and industrial machinery. The precision manufacturing ensures reliable articulation and long service life in demanding conditions.

Products specifications

A (+/-0.015)

2.125

Approx Bearing Weight

0.15

B (+0.0025/-0.0005)

0.4375

Ball Dia Ref

0.812

C (+0.062/-0.031)

1.375

D Ref

1.125

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

21

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

0.562 in.

Rod End Centerline Length

2.125 in.

Rod End Construction

2-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

0.438 in.

Rod End Head Diameter

1.125 in.

Rod End Head Width

0.562 in.

Rod End Material

Carbon steel

Rod End Misalign Angle (degrees)

21 degrees

Rod End Static Load Capacity

7,897 lbs.

Rod End Style

Metal to metal

Rod End Thread Size

7/16-20 RH in.

Thread Length

1.375 in.

Thread Type

Right Hand

Thread UNF-3A

7/16 -20

UTL Radical Static

7897

W (+/-0.005)

0.56

Prop 65

WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
