ICON Vehicle Dynamics K40011 Stage 1 Suspension System 0-2" Lift 2021-2023 Bronco HOSS 2.0

The ICON Vehicle Dynamics Stage 1 Suspension System is engineered specifically for 2021-2023 Ford Broncos equipped with the factory HOSS 2.0 suspension package. This comprehensive upgrade delivers enhanced wheel travel, superior damping control, and exceptional ride quality both on and off-road through a complete set of four 2.5-inch diameter EXP Series aluminum coilovers.

Key Features:

• Complete set of four 2.5 Aluminum Series EXP coilovers with internal reservoirs
• Adjustable ride height from 0-2 inches front lift and 0-1.75 inches rear lift using snap-ring groove system
• Inverted shaft-up design with massive 7/8-inch diameter induction hardened, chrome plated shafts
• One-piece impact-extruded aluminum shock bodies with hard anodized finish for superior corrosion and abrasion resistance
• Custom-tuned digressive piston valving optimized for Bronco with factory coil springs
• Fully rebuildable and re-valvable design for future customization
• Reuses factory coil springs, upper shock mounts, and coil hardware for cost-effective installation
• Superior heat dissipation compared to factory steel-bodied shocks for consistent performance

The 2.5-inch diameter aluminum body provides increased piston size and shock oil volume, delivering better heat management during prolonged high-speed runs and rough terrain use. EXP Series coilovers combine the performance of premium fully-rebuildable shock absorbers with the convenience and value of retaining the Bronco's factory spring components. Compatible with Broncos equipped with HOSS 2.0 suspension, identified by yellow factory shock bodies, which comes standard on Badlands, Wildtrak, First Edition, and Everglades trims, plus Base, Big Bend, Outer Banks, and Black Diamond trims with the Sasquatch package.

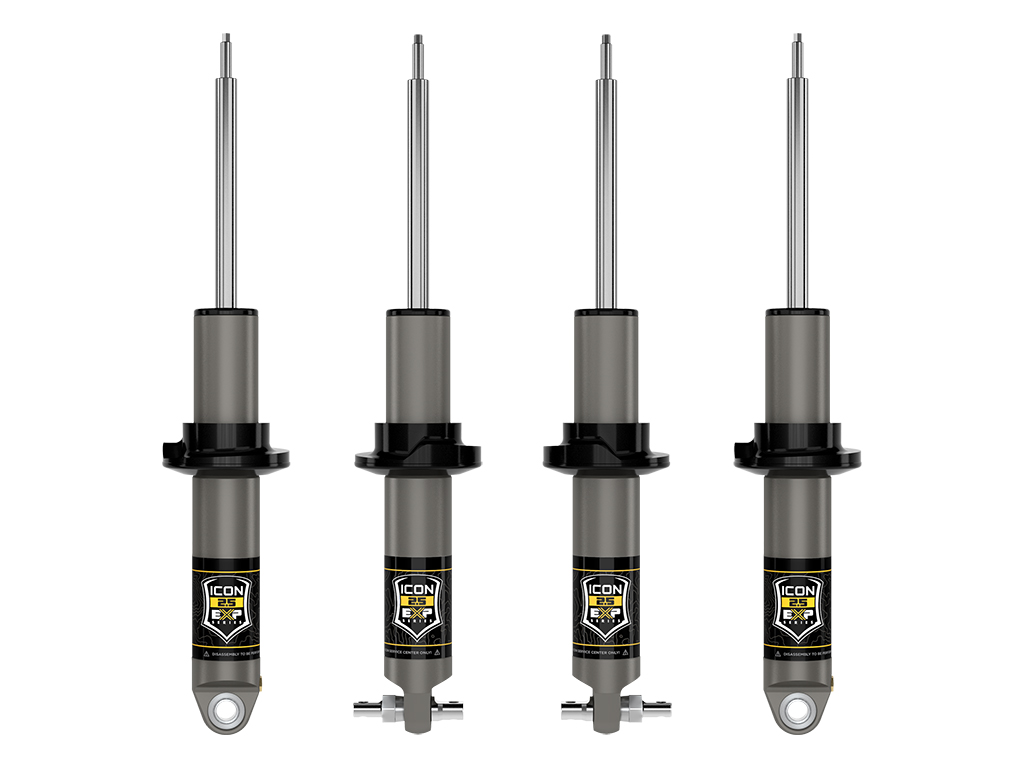

What's Included: Four 2.5 EXP Series coilovers (2 front, 2 rear) with internal reservoirs and snap-ring height adjustment system.

Warranty: 1 Year
