ICON Vehicle Dynamics K40002 Stage Suspension System Bronco HOSS - 2 2021-2023 1.0

The ICON Vehicle Dynamics Stage 2 Suspension System is engineered specifically for 2021-2023 Ford Bronco models equipped with the factory HOSS 1.0 suspension package. This comprehensive system delivers 1.375-3 inches of front lift and 1.5-2.25 inches of rear lift while maintaining superior ride quality both on and off-road.

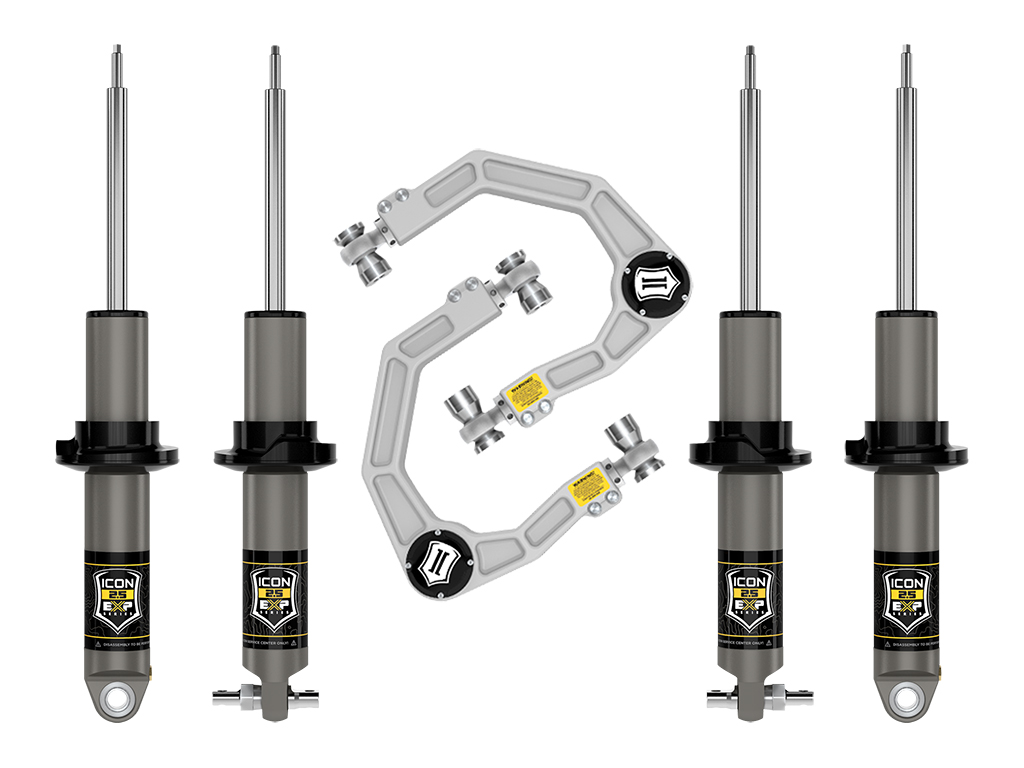

Complete Shock Package:

• Full set of four 2.5-inch Aluminum Series EXP coilover shocks with internal reservoirs
• Vehicle-specific tuning optimized for Bronco with factory coil springs
• One-piece impact-extruded aluminum shock bodies with hard anodized finish for superior abrasion and corrosion resistance
• Inverted shaft-up design featuring massive 7/8-inch diameter induction hardened, chrome plated shafts
• Custom digressive piston design for maximum damping performance and comfort

Billet Aluminum Upper Control Arms:

• On-vehicle caster and camber adjustability to accommodate increased lift height
• Patented Delta Joint PRO technology with up to 90 degrees of freedom of movement
• Precision-machined billet construction for strength and durability

Key Benefits:

• Easily selectable ride height adjustment via snap-ring grooves machined into shock body
• Utilizes factory coil springs and coil hardware for cost-effective performance upgrade
• Superior heat dissipation compared to smaller OE steel shocks for consistent performance
• Fully rebuildable and re-valvable by qualified shock technicians
• Increased wheel travel for improved off-road capability

This Stage 2 system is designed for Bronco Base, Big Bend, Outer Banks, and Black Diamond trim levels WITHOUT the Sasquatch package. HOSS 1.0 equipped vehicles are identified by BLACK shock bodies on the factory shocks.

WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
