Hella A3744 Backscan BS-4000W Ultrasonic Reversing Detection System

Manufacturer

Part Number

A3744
Black Friday Price

$560.48

Estimated ship date Wednesday, December 02

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Hella A3744 Backscan BS-4000W is a professional-grade ultrasonic obstacle detection system designed to enhance safety when reversing commercial vehicles, trucks, trailers, buses, and RVs. This 4-sensor system mounts to the rear of the vehicle as an invaluable aid to safe reversing, providing greater protection to pedestrians and workers while minimizing damage to vehicles and other objects.

Key Features:

  • 2.5m detection range with adjustable outer sensors (selectable to 0.6m via dip switch)
  • Obstacles detected in under 200 milliseconds for rapid response
  • Environment Learning Mode (ELM) prevents false alarms from vehicle ancillary equipment in the first 1m of the detection zone
  • 12V/24V compatible for versatile installation across vehicle types
  • Includes underslung and flush mount fixings with graduated visual and audible distance warning display
  • Waterproof sensors rated to IP68

Technical Specifications:

  • Operating voltage: 10-32Vdc
  • Power consumption: 2.4 Watts (200mA current draw)
  • Operating temperature: -30° to +80°C
  • Vibration rating: 5G / Shock rating: 10G
  • ECU IP rating: IP69K for maximum environmental protection

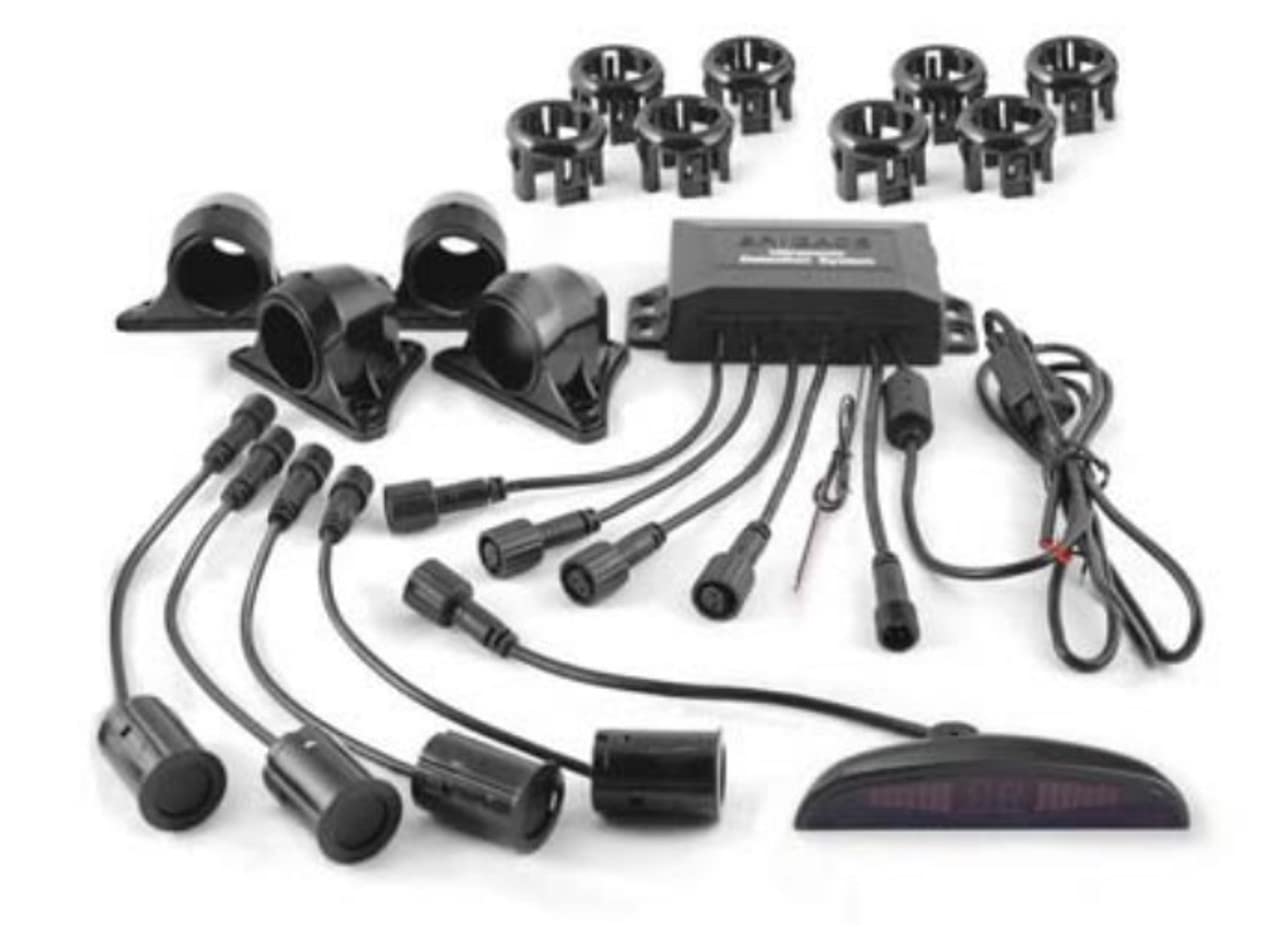

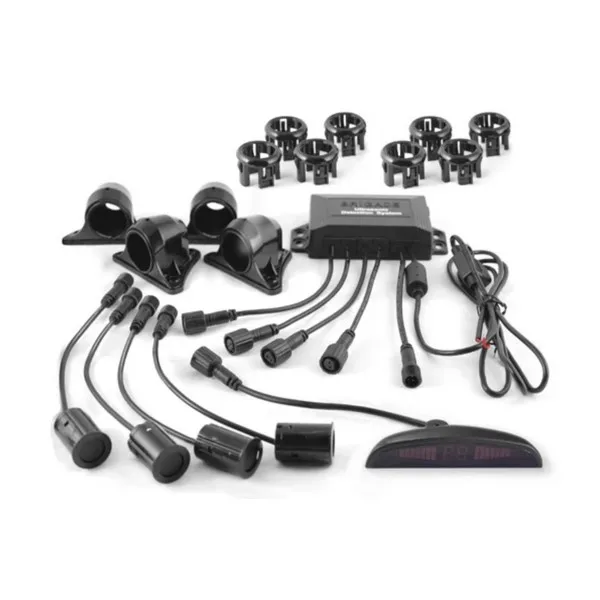

What's Included:

  • 4 ultrasonic sensors with IP68 waterproof rating
  • Visual and audible display unit
  • Waterproof control box (IP69K rated)
  • 15m display cable
  • 4 x 2.5m sensor cables
  • Multiple mounting options: 0° flush mount, 11° flush mount, and underslung fixings

The BS-4000W system features configurable sensor positioning options and includes a trigger output for operating ancillary items on detection. Detection response occurs within 200ms, ensuring drivers receive immediate feedback when obstacles enter the detection zone. This system is ideal for commercial applications where blind spot awareness and collision avoidance are critical safety concerns.
