Wilwood 340-16606 Dual Adjustable Floor Mount Brake Clutch Pedal Assembly

Manufacturer

Part Number

340-16606
Black Friday Price

$390.66

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wilwood 340-16606 is a premium floor-mounted dual pedal assembly featuring an adjustable ratio balance bar brake pedal paired with a dedicated clutch pedal. Engineered for high-performance racing applications, this assembly provides precise brake bias control and customizable pedal geometry to match driver preference and vehicle requirements.

Key Features:

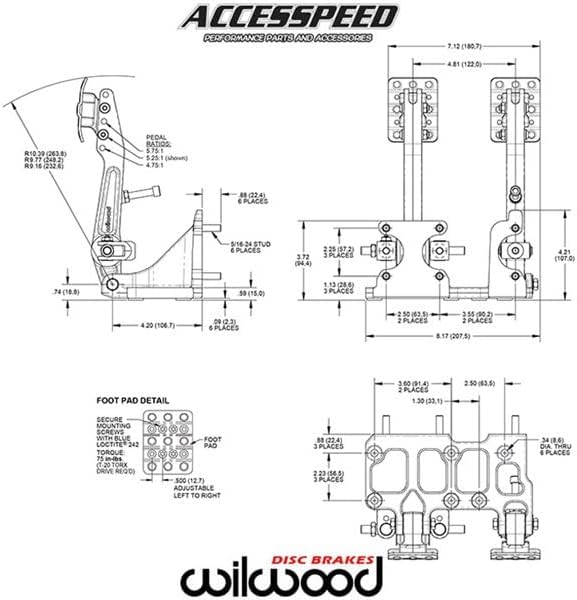

  • Adjustable pedal ratio: brake pedal head adjusts vertically to provide 4.75:1, 5.25:1, or 5.75:1 ratios for optimized pedal feel and effort
  • Balance bar system with positive detent stops every full turn maintains adjustment position and prevents drift during operation
  • Lateral pedal pad adjustment from 3.75 to 5.75 inches on center accommodates different driver ergonomics
  • Lightweight aluminum frame construction with high-strength forged I-beam style pedal arms for maximum rigidity and minimal weight
  • Non-skid waffled pedal pads provide secure foot placement under hard braking
  • Pin and clevis pushrod attachment system minimizes misalignment angles for bind-free operation throughout full travel range
  • Accepts three Wilwood 2.25-inch vertical mount flange single outlet master cylinders (two brake, one clutch - sold separately)
  • Adjustable balance bar allows fine-tuning of front-to-rear brake bias, can be locked with included jam nut or adapted for remote adjustment knob

This pedal assembly is ideal for road racing, circle track, and high-performance street applications where precise brake control and driver comfort are essential. Compatible with a wide range of Wilwood master cylinder bore sizes to optimize braking performance for specific vehicle weight and brake system requirements.
