Strange Engineering S3449 Tie Rod Fabrication Kit for Door Car Steering Rack

The Strange Engineering S3449 is a complete tie rod fabrication kit designed specifically for Strange door car steering racks, including models S3448 and S3448-195. This professional-grade kit provides all the components necessary to construct custom tie rod ends for race car applications.

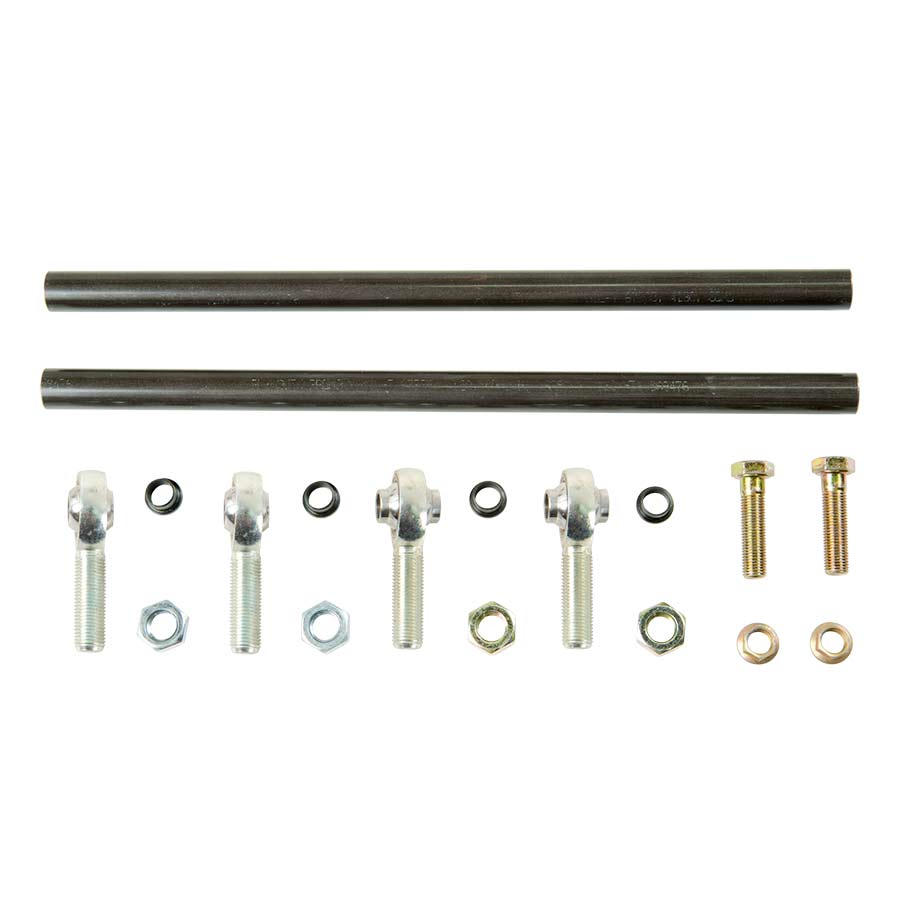

Kit Includes:

• Two 12-inch long pieces of 4130 seamless chrome moly tubing (0.625-inch O.D. x 0.120-inch wall)
• Four Teflon-lined chrome moly rod ends with 0.4375-inch I.D. spherical ball: one 0.560-inch wide ball with 7/16-20 RH threads, one 0.560-inch wide ball with 7/16-20 LH threads, one 0.812-inch wide ball with 7/16-20 RH threads, and one 0.812-inch wide ball with 7/16-20 LH threads
• Two 7/16-20 RH jam nuts and two 7/16-20 LH jam nuts
• Four 7/16-inch O.D. x 3/8-inch I.D. bushings
• Two 3/8-24 x 1-1/2-inch grade 8 bolts and two 3/8-24 ESNA nuts

Important Note: Tubing must be cut to length and threaded by the installer. Requires 7/16-20 taps in both right-hand and left-hand threads (taps not included).

This kit is engineered to work with Strange Stiletto Pro Box rack and pinion systems but can be adapted for use on any race car style rack and pinion steering application. The high-quality 4130 chromoly construction and Teflon-lined rod ends ensure maximum durability and smooth operation in demanding racing environments.
