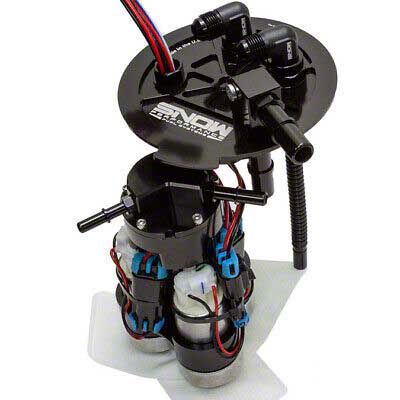

Snow Performance SNF-52501 6th Gen Camaro Billet Fuel Hat Dual Pump

The Snow Performance SNF-52501 is a premium dual pump fuel hat designed specifically for 2016-2024 6th Generation Chevrolet Camaro models with LT1 engines. This high-performance fuel system upgrade eliminates the complexity and reliability issues associated with traditional multi-pump setups that rely on T-fittings, hose clamps, and vulnerable rubber or plastic lines.

Precision Engineered Construction:

• CNC-machined from 6061 billet aluminum for exceptional strength and durability
• Black anodized finish provides superior corrosion resistance and compatibility with E85 and other aggressive fuels
• Billet aluminum manifold with precision CNC-machined internal passages for optimal flow
• Viton chemical-resistant O-rings ensure perfect leak-free sealing
• Engineered, machined, and built in the USA

Dual Pump Street Configuration:

• Includes one 450 LPH pump and one 470 LPH pump for optimized street performance
• Capable of supporting 1000+ rear wheel horsepower on E85 fuel
• Capable of supporting 1300+ rear wheel horsepower on gasoline
• Features genuine TI Automotive (Walbro) fuel pumps for OE reliability
• Designed for return-style fuel systems only

Advanced Fuel Delivery Features:

• Female 10AN ORB feed port and 8AN ORB return port for high-flow capabilities
• Integrated 10-micron pre-filter feeds all pumps without needing to be fully submerged
• Unified pump sock design merges both pumps into one feed, preventing fuel starvation during performance driving
• Pre-filter mounts directly to pumps, eliminating bulkheads and unnecessary hardware

Smart Street Setup:

The dual pump configuration allows street driving on the smaller 450 LPH pump, which draws less current and generates less heat. When boost or high load is detected, the larger 470 LPH pump activates to support high horsepower demands. This smart configuration can be controlled using a Snow Performance boost-activated pressure switch (SNO-81014) and Multi-Pump Relay Module (SNF-20003), sold separately.

Fuel Compatibility:

• Compatible with 100% gasoline, 100% ethanol, or any ethanol blend (E10, E85, E98)
• NOT compatible with methanol

This fuel hat provides a clean, professional solution for high-output fuel system upgrades, delivering the reliability and performance needed for serious street and performance applications.
