RADIUM Engineering 20-0750-FL CCV Catch Can Kit with Fluid Lock for Toyota MK5 Supra

Manufacturer

Part Number

20-0750-FL
Sale Price

$294.45

3 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The RADIUM Engineering 20-0750-FL is a crankcase ventilation (CCV) catch can kit designed specifically for the 2020+ Toyota MK5 GR Supra that runs inline between the crankcase vent port and the intake pipe. This kit features the revolutionary Fluid Lock catch can with a patented mechanism that prevents the reservoir from overfilling and traps collected fluids until emptied. The closed-loop design does not vent to atmosphere, making it emissions and track legal while promoting negative crankcase pressure for optimal performance.

Key Features:

  • Large 10AN ORB ports, 4AN ORB drain port, and 2-step oil separation baffling
  • 7 fluid ounce capacity with integrated O-ring sealed dipstick for easy fluid level inspection
  • Mounts to 2 holes on the front radiator support and was designed specifically to clear strut braces
  • Mounts using factory holes with no cutting, drilling, or permanent modifications required
  • No extra inline check valve required since RADIUM catch cans are pressure sealed

Why Use a CCV Catch Can:

At high engine load (WOT), high flow from the crankcase into the intake system would normally lead to oil and sludge accumulation in the air filter intake pipe, which spreads to the intercooler, lowering thermal efficiency and decreasing performance. The CCV catch can captures these contaminants and promotes clean filtered air back into the intake. The closed system also prevents unwanted oil vapors from entering the cabin.

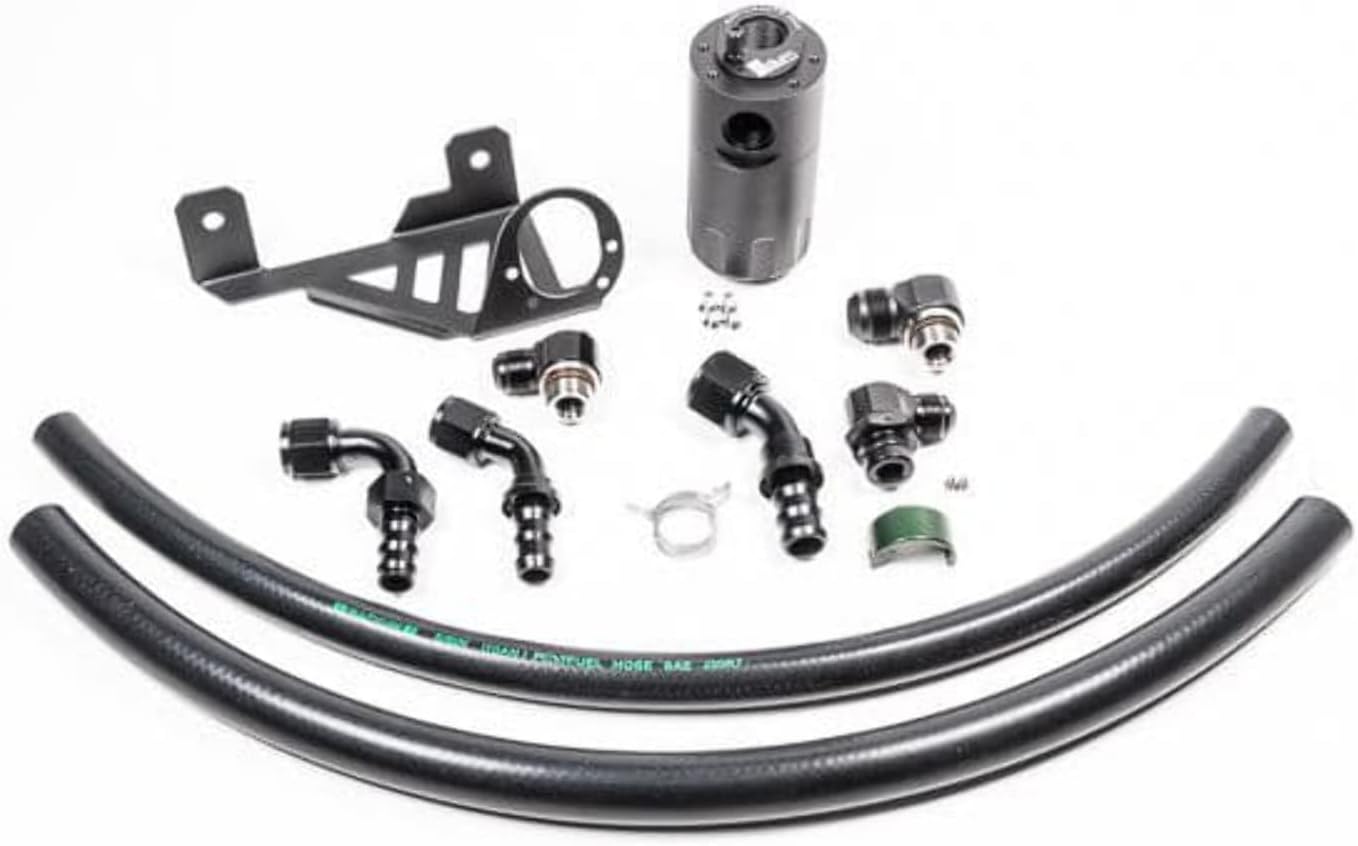

Kit Includes:

  • Baffled oil catch can with Fluid Lock technology
  • MK5 GR Supra specific mounting bracket
  • AN adapter fittings and hose ends
  • Stainless steel hardware
  • RADIUM PCV hose

Important Notes:

The CCV catch can kit does not address blow-by from the PCV side of the crankcase and is compatible and recommended to be used with the PCV catch can kit (20-0749-FL). For ultimate engine protection, RADIUM recommends the 20-0751 Dual Catch Can Kit. Check the catch can level using the integrated dipstick starting at 3-4 weeks of driving to determine your emptying interval.

Products specifications

Title

20-0750-FL CATCH CAN KIT
