Fabtech K7090DL 3 Inch Lift Kit with Uniball Upper Control Arms and Dirt Logic Coilovers for 2022-2025 Toyota Tundra 4WD

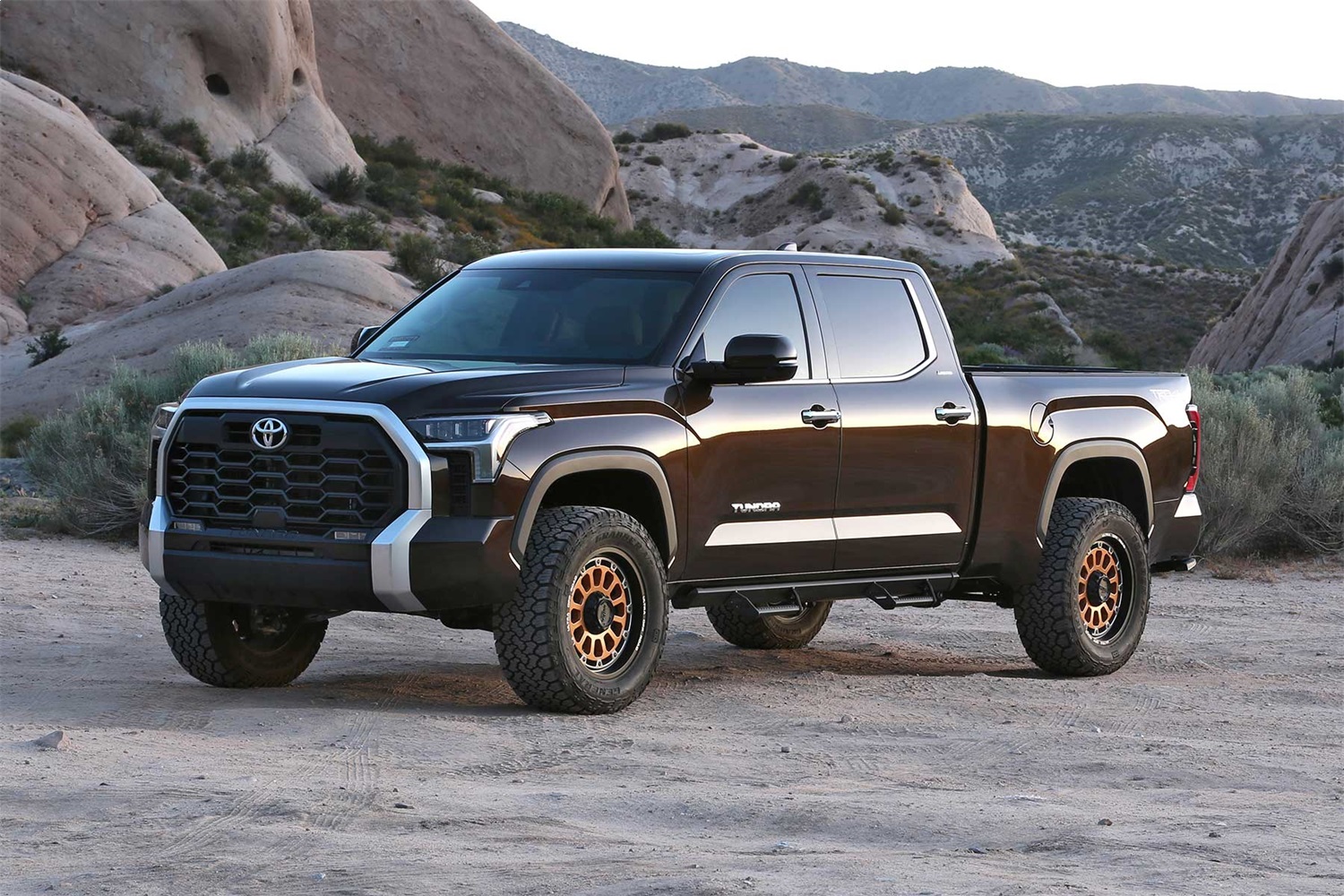

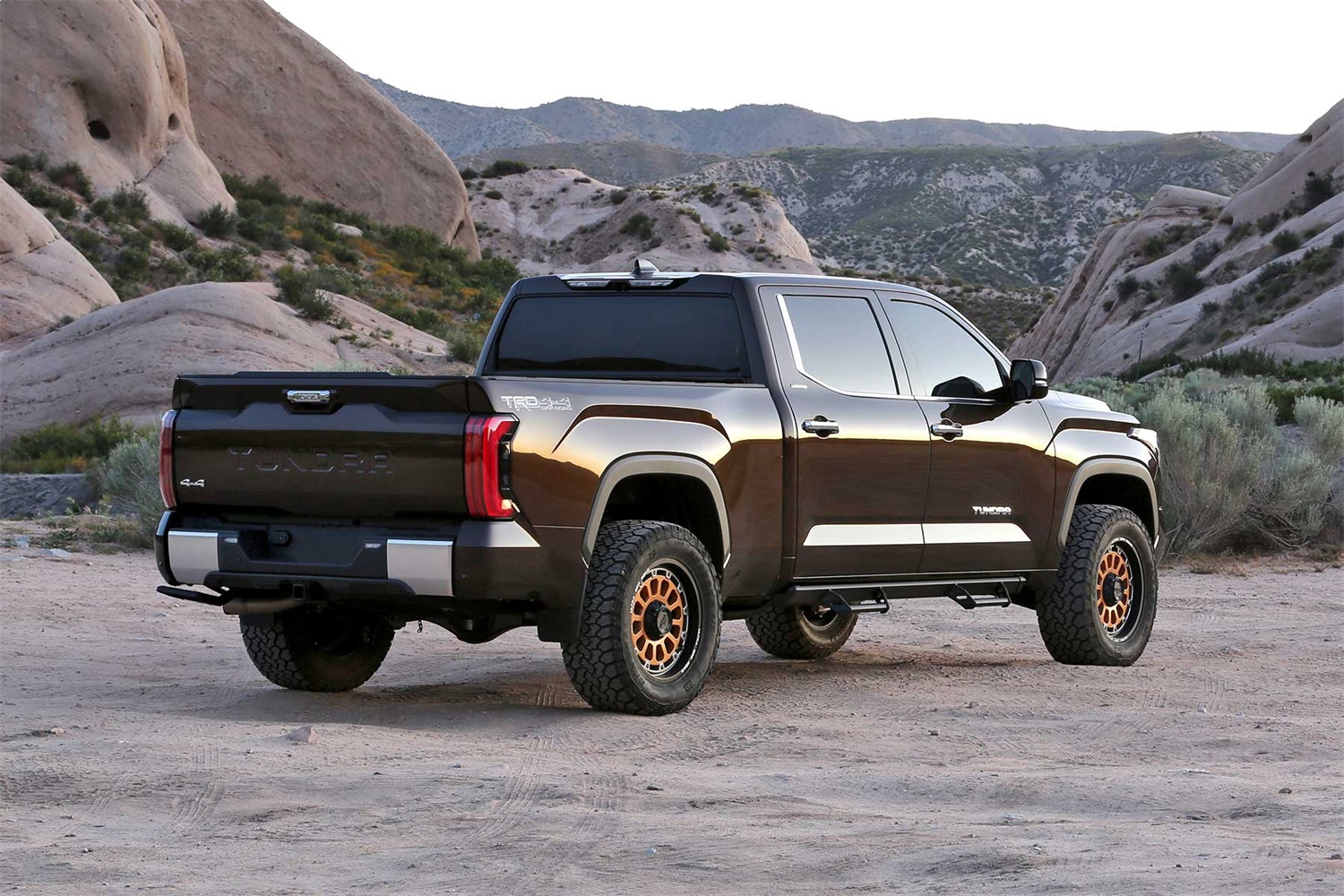

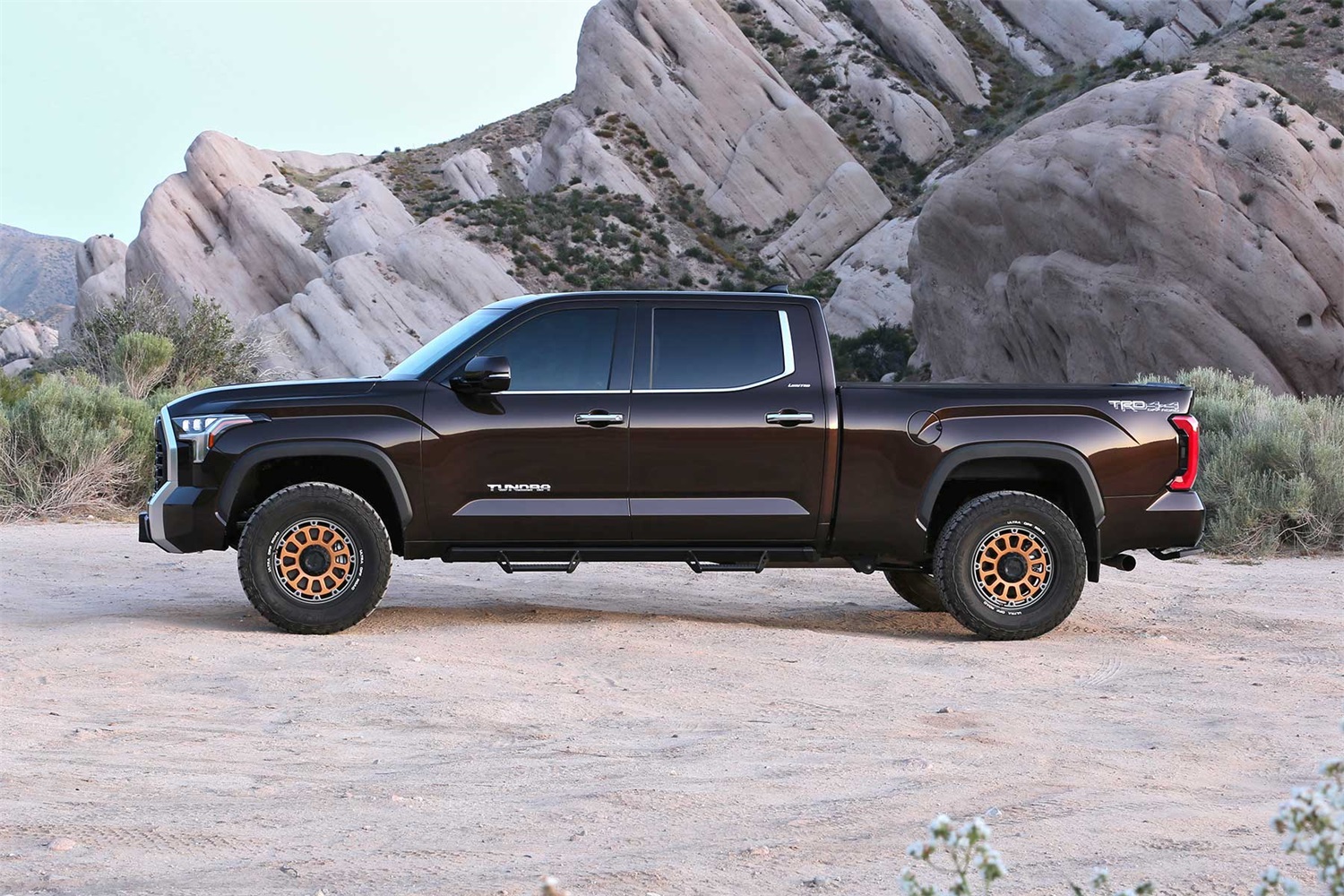

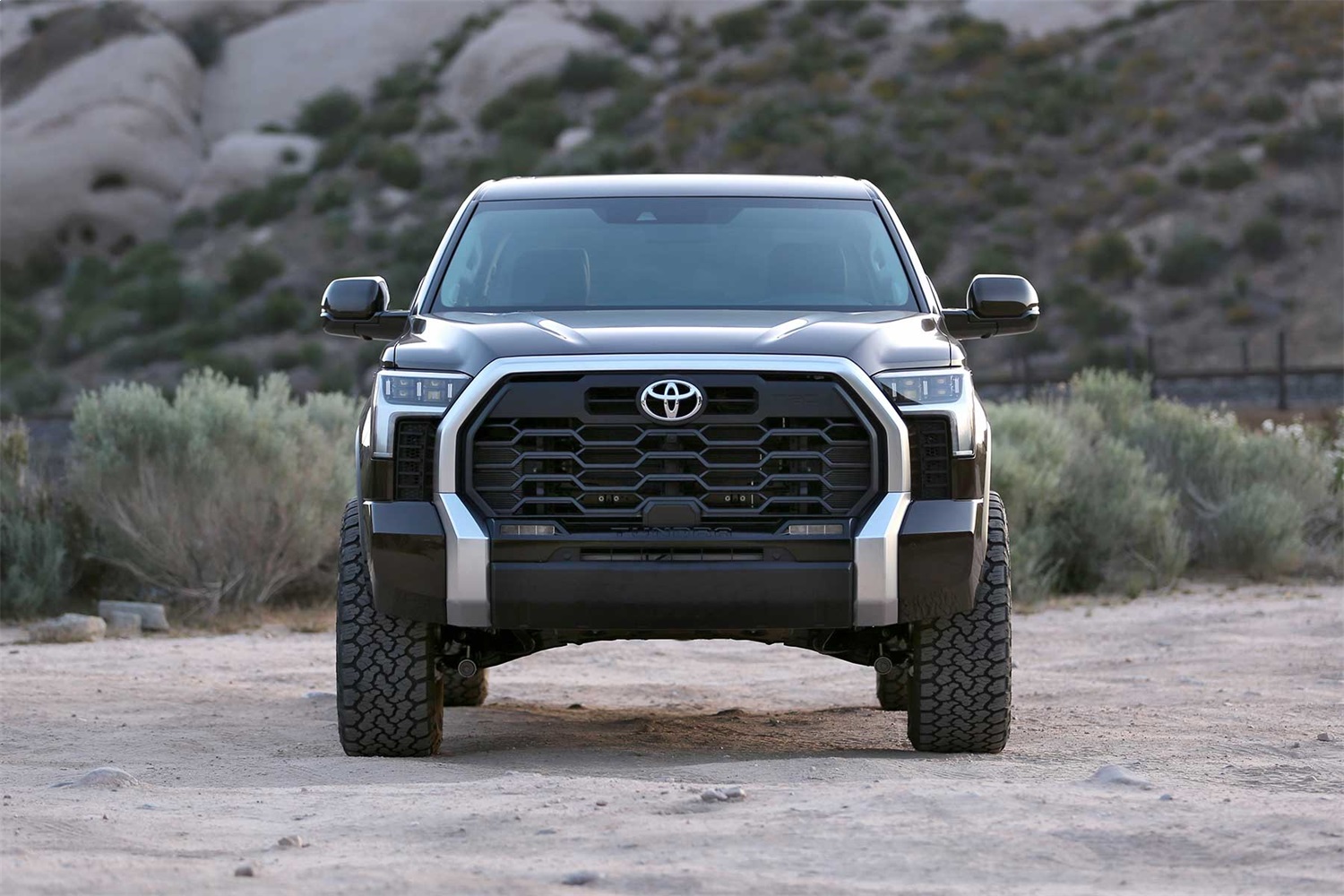

The Fabtech K7090DL is a complete 3-inch suspension lift kit engineered specifically for 2022-2025 Toyota Tundra 4WD models equipped with factory rear air bag suspension. This premium lift kit provides increased height to accommodate 33-inch or 35-inch tires while leveling the vehicle stance for a more aggressive appearance.

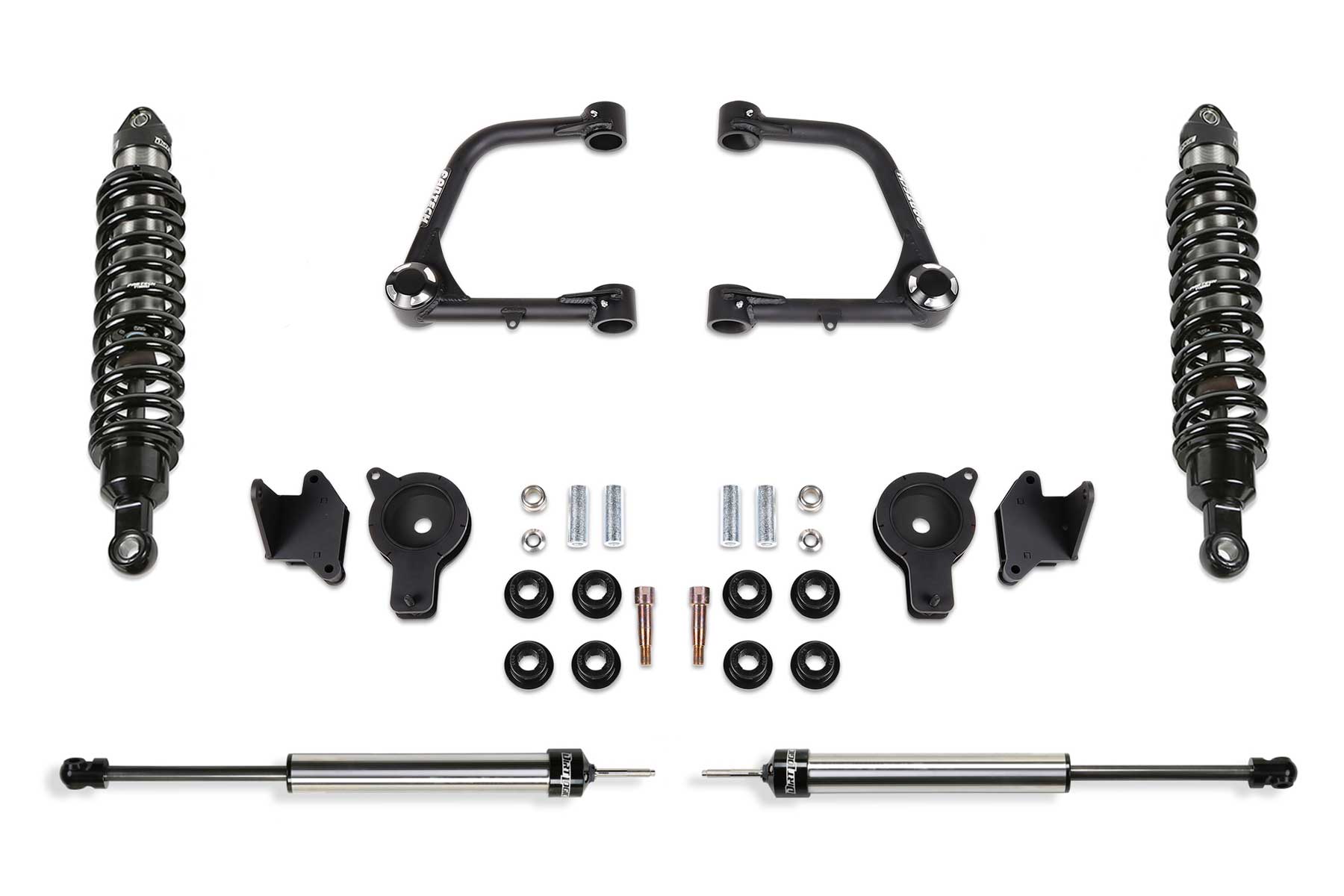

Uniball Upper Control Arms:

The factory upper control arms are replaced with Fabtech's Uniball Upper Control Arms that provide an extra degree of caster compared to stock arms, helping to balance steering effort with oversized tires. These control arms are constructed with .120-inch wall 1.25-inch OD 4130 Chromoly steel tubing, and feature high quality 1-inch FK Stainless PTFE lined Uniball bearings that replace the small factory ball joints and allow for increased travel without bind.

Dirt Logic Suspension Components:

• Front Dirt Logic 2.5 Coilover shocks work in conjunction with the upper control arms to provide additional front wheel travel
• Rear Dirt Logic 2.25 shocks deliver a balanced ride
• All Dirt Logic shocks are constructed with a stainless steel body and a NitroSteel piston rod for maximum corrosion resistance
• Extensively tested and tuned to provide superior ride quality both on and off-road

Rear Air Bag Spacers:

Rear lift is accomplished using spacers installed under the factory air bags for the additional ride height. This design maintains the factory air suspension functionality while achieving the desired lift.

This comprehensive lift kit is designed for enthusiasts seeking Fabtech's renowned quality and strength for both daily driving and off-road adventures.
