The ICON Vehicle Dynamics K53212T is a complete Stage 2 3.0 Series suspension lift system designed for the 2022–2023 Toyota Tundra. Building on the Stage 1 foundation, this system upgrades to 3.0 Series rear remote reservoir shocks with CDCV and pairs them with 3.0 Series CDCV front coilovers, tubular front upper control arms (UCAs), a billet rear upper/lower link combo, and a front sway bar drop kit. The result is a fully integrated suspension solution delivering 2–3.25" of adjustable front lift, improved alignment geometry, and fitment for up to 35" tires.
3.0 Series CDCV Front Coilovers:
- Vehicle-specific 3.0 Series remote reservoir front coilovers equipped with CDC Valves
- Provides 2–3.25" of adjustable front lift height over stock when used with included tubular UCAs
- 50% more piston surface area in the ride zone and 100% more in the Bump Zone compared to 2.5 Series shocks
- Up to 40% increase in front wheel travel over stock
- Multi-stage hydraulic Bump Zone exponentially increases bottom-out resistance through the last 40% of shock travel
- Externally adjustable CDC Valves provide 10 levels of compression damping adjustment
Tubular Upper Control Arms (UCAs):
- Corrected front-end geometry with built-in additional caster for improved drivability
- Improved suspension component clearance over OEM
- Features the patented ICON Delta Joint PRO (U.S. Pat. 10,731,700) with 90° of total articulation
- Serviceable and rebuildable Delta Joint PRO allows full bump and droop travel while eliminating bind
Billet Rear Upper/Lower Links:
- Constructed from 1-3/4" x .313 wall DOM tubing with a multi-stage black powder coat finish for corrosion resistance
- PTFE-lined FK rod ends for increased suspension articulation and reduced deflection
- Adjustable link arm length for on-vehicle tuning
- Multi-durometer bushings provide noise-free operation and maximum angularity with no periodic maintenance required
3.0 Series Rear Remote Reservoir Shocks:
- Specially tuned for the Tundra to deliver a 20% increase in rear wheel travel over stock
- 50% more piston surface area compared to 2.5 Series shocks
- Increased internal oil volume and greater external surface area for superior heat dissipation and resistance to shock fade
- Equipped with externally adjustable CDC Valves offering 10 settings of compression damping
Sway Bar Drop Kit:
- Minimizes sway bar link bind throughout the suspension travel range
- Allows full wheel travel range without overstressing OEM components

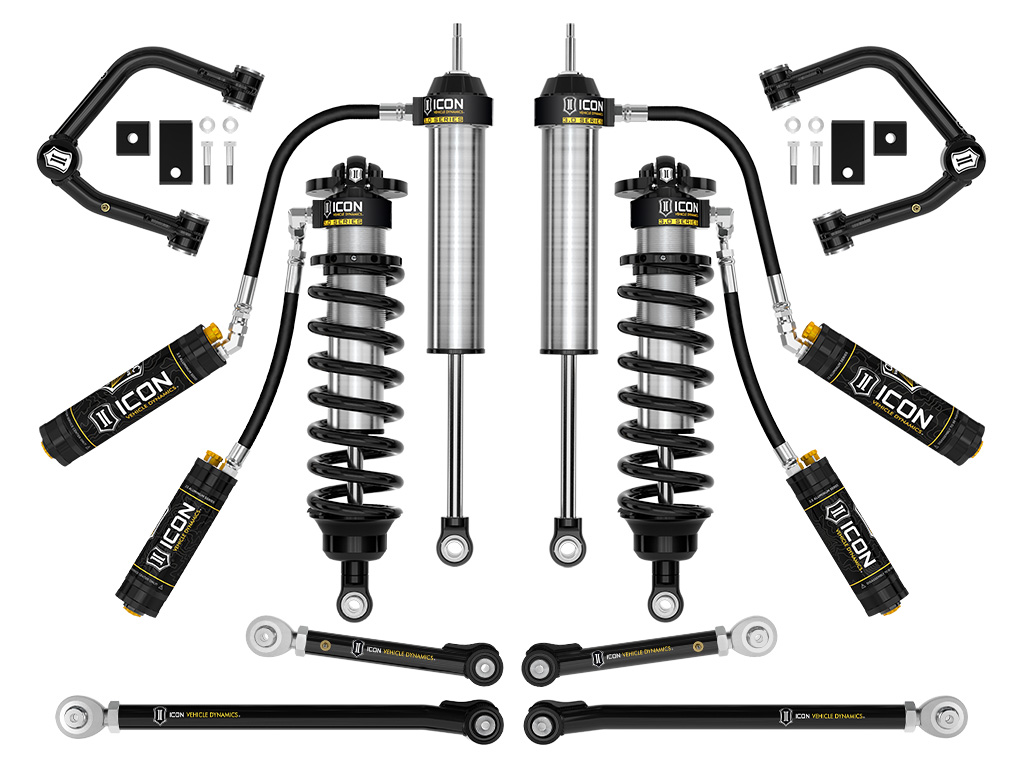

What's Included:
- 3.0 Series CDCV remote reservoir front coilovers (pair)
- Tubular front upper control arms with Delta Joint PRO
- 3.0 Series CDCV rear remote reservoir shocks (pair)
- Billet rear upper and lower suspension links
- Front sway bar drop brackets
The ICON K53212T delivers balanced front-to-rear damping control, an expanded lift range, and race-proven 3.0 Series shock technology — giving Toyota Tundra owners a capable, confidence-inspiring platform for both daily driving and demanding off-road use.
